Spare Toilet Roll Stand - Holds Three Rolls, Two-Piece Screw Post, Weighted Base (OpenSCAD) — modelo 3D

Spare Toilet Roll Stand - Holds Three Rolls, Two-Piece Screw Post, Weighted Base (OpenSCAD)

por Arthur Both en Printables

A free-standing stand for three spare toilet rolls, its post in two halves that screw together.

Descargar gratis Ver en Printables

Todos los archivos (3) en un ZIP

Licencia

Solo uso personal

CC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual

Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a Arthur Both.

Archivos (3)
Categoría
Hogar
Formatos
SCAD, 3MF, STL
Descargas
0
Publicado

Sobre este modelo

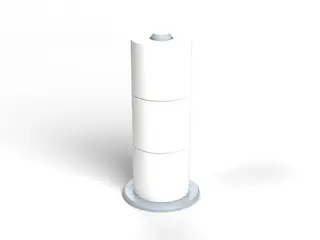

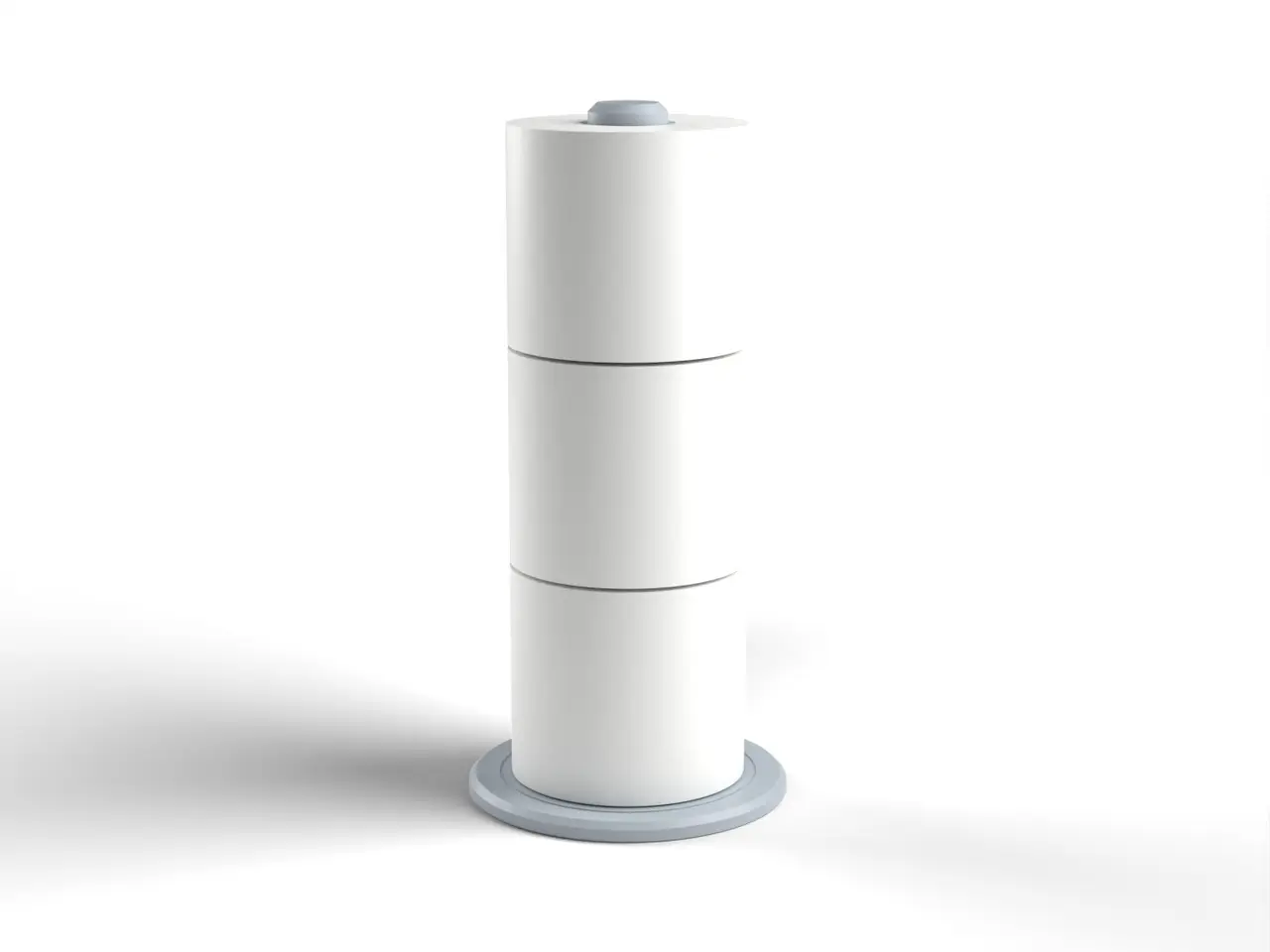

Keeps three spare toilet rolls stacked beside the toilet. The post comes in two halves that screw together, so each part fits a normal printer, and the wide base keeps it steady. DETAILS • 150 mm base, 36 mm post (fits roll cores of 40 mm and up), about 325 mm tall. Holds three rolls up to 102 mm wide. • Base part 178 mm tall, top part 157 mm. • Prints with no supports: both parts stand upright, the rounded thread never leans past 45 degrees, and the inside step above the thread is a 45-degree cone. Bambu Studio: 4 h 43, 159 g. CUSTOMIZE (OpenSCAD) Number of rolls, roll width, post and base size, and the thread clearance. Designed with AI assistance (OpenSCAD). Rendered images; not printed yet.

Descripción original del autor, publicada en Printables.
