Sovol sv08max Beacon/Cartographer mount

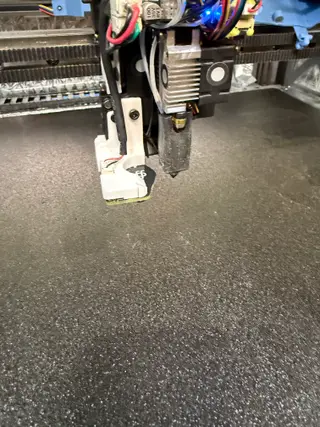

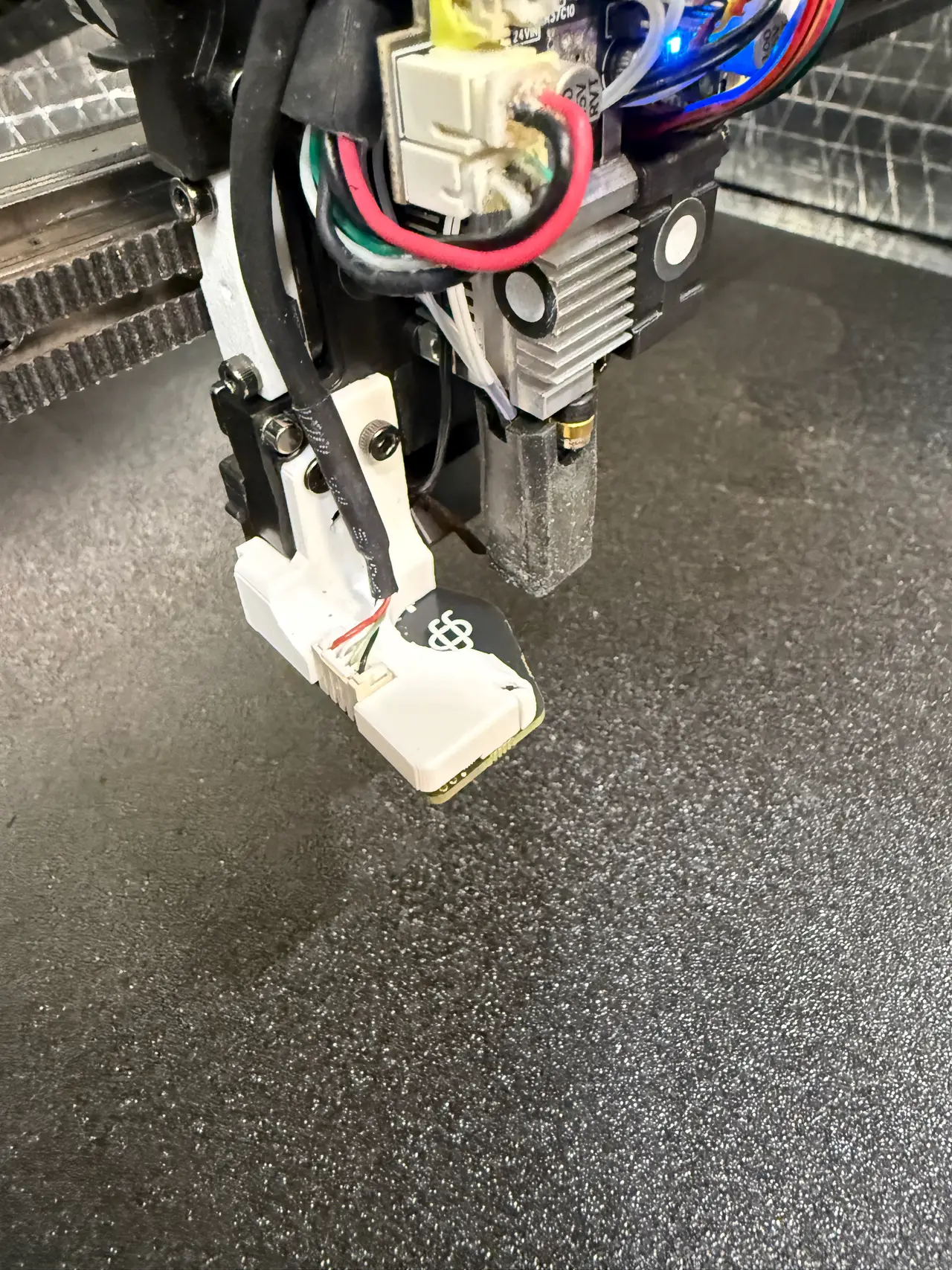

Tested with Beacon only! Followed official docs at https://docs.beacon3d.com/installation/ Includes align tool for precise alignment. You will have to cut stock head cover a bit, or print an alternative one. Default USB cable lays well along printer's CAN cable, I used a simple USB extender and it worked well for me. The other end is connected to external USB, but I already got a small USB hub PCB for internal install. My config: [beacon] serial: /dev/serial/by-id/usb-Beacon_Beacon_RevH_<insert-yours>-if00 x_offset: -16.5 # use align tool to measure your exact distance y_offset: 0.0 # on Y axis as well mesh_main_direction: x mesh_runs: 1 contact_max_hotend_temperature: 280 home_xy_position: 250, 250 home_z_hop: 5 home_z_hop_speed: 60 home_xy_move_speed: 600 home_method: proximity home_method_when_homed: proximity # after initial calibration use induction home_autocalibrate: never #unhomed # contact will calibrate beacon on first home
