Sony ev10 viewfinder
por Kakashi_ en MakerWorld

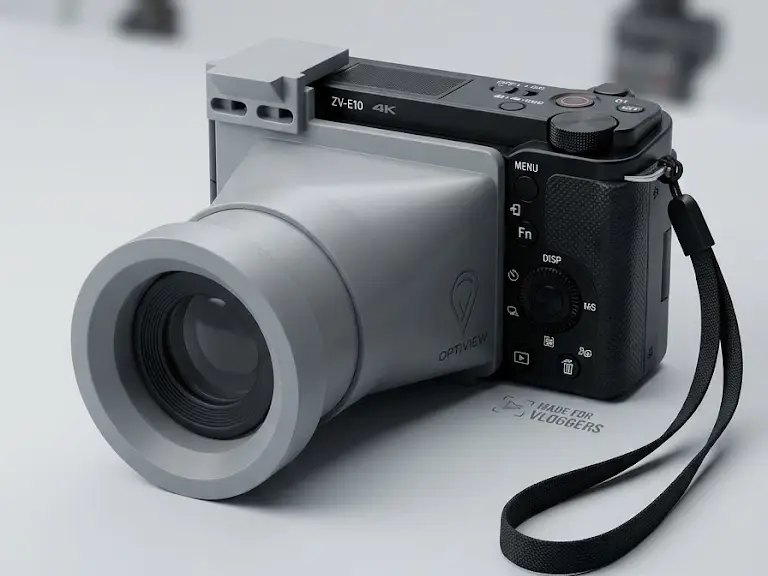

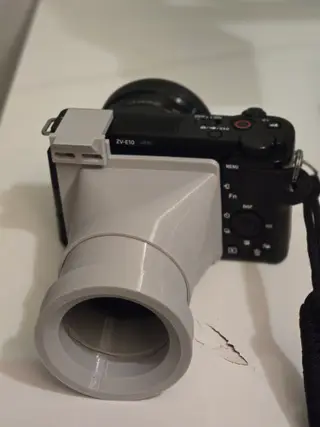

The Sony ZV-E10 has no viewfinder, which makes shooting in bright sunlight hard. This 3D-printable loupe turns the rear screen into an eye-level viewfinder. It blocks glare and magnifies the screen about 3x for sharper framing and focus checking.
MakerWorld entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalMakerWorld Exclusive License
Licencia exclusiva de la plataforma: uso personal, no se permite compartir el archivo ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Kakashi_.
Archivos (1)
- zve10_loupe_VIEWFINDER.3mf 3MF · 118 KB
- Categoría
- Tecnología
- Formatos
- 3MF
- Descargas
- 0
- Publicado
Sobre este modelo
The Sony ZV-E10 has no viewfinder, which makes shooting in bright sunlight hard. This 3D-printable loupe turns the rear screen into an eye-level viewfinder. It blocks glare and magnifies the screen about 3x for sharper framing and focus checking. Features
- Mounts in the hot shoe with a snap latch that clicks in and pops out with a firm pull
- Slide-to-focus tube to adjust sharpness for your eyesight
- Leaves the MENU, Fn and control wheel free
- Adjustable bracket slots to line it up with the screen
- Prints without supports

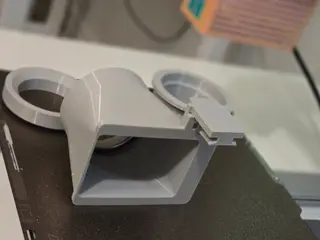

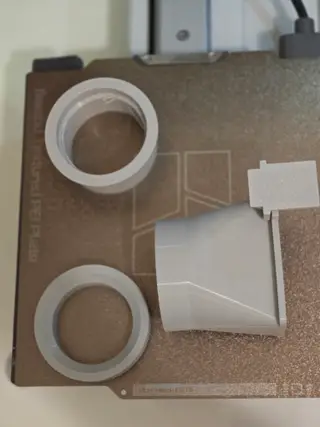

Parts to print: hood, shoe bracket, focus tube, eyecup ring ( PETG recommended) Hardware: one 50 mm, 3–3.5x magnifier lens
Descripción original del autor, publicada en MakerWorld.
