Solar Hive
por Christoph Queck en Thingiverse
Random parametric "bee hive" LED lamp. Fully customizable, optionally solar powered. Solar cell can be mounted on the back or somewhere else entirely. I will upload some example .stl files - make your own one with OpenSCAD or Makerbot Customizer. Can be powered by 4 - 12 V like a "normal" LED lamp..
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Christoph Queck.
Archivos (21)

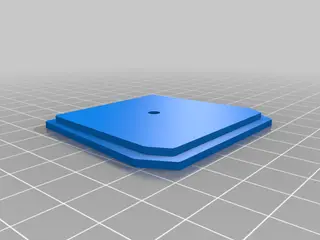

- V1_ElectronicspackLid.stl STL · 25 KB
- V1_FrontLid.stl STL · 479 KB
- V1_Electronicspack.stl STL · 131 KB
- V1_MountingBracketA.stl STL · 41 KB
- V1_optionaldummycell.stl STL · 15 KB
- V1_SolBatHousingBottom.stl STL · 67 KB
- V1_SolBatHousingTop.stl STL · 47 KB
- V1_Back.stl STL · 785 KB
- V1_SolBatHousingMain.stl STL · 118 KB
- V1_BackLid.stl STL · 502 KB
- V1_BallJoint.stl STL · 1,1 MB
- V1_Front.stl STL · 853 KB

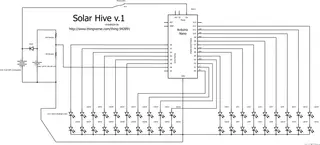

- CircuitSolarLEDHiveRC1.pdf PDF · 906 KB
- HugePreview.stl STL · 10,5 MB
- All_files_2nd_Example_43_7_20_2_8_6.zip ZIP · 1 KB
- All_Files_1st_example.zip ZIP · 361 KB
- InstructionsCompleteRC1.pdf PDF · 1,4 MB
- SolarHiveRC5.scad SCAD · 37 KB
- SolarHiveArduinoSketchRC5.ino INO · 5 KB
- SolarHive_DemoAllPartsRC5_4inch.zip ZIP · 5,4 MB
- SolarHive_DemoAllPartsRC5.zip ZIP · 5,1 MB
- Categoría
- Jardín
- Formatos
- STL, PDF, ZIP, SCAD, INO
- Descargas
- 17,476
- Publicado
Sobre este modelo

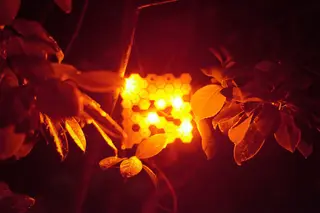

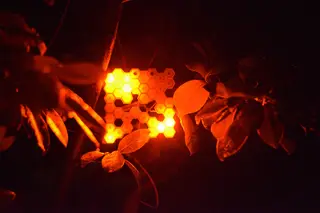

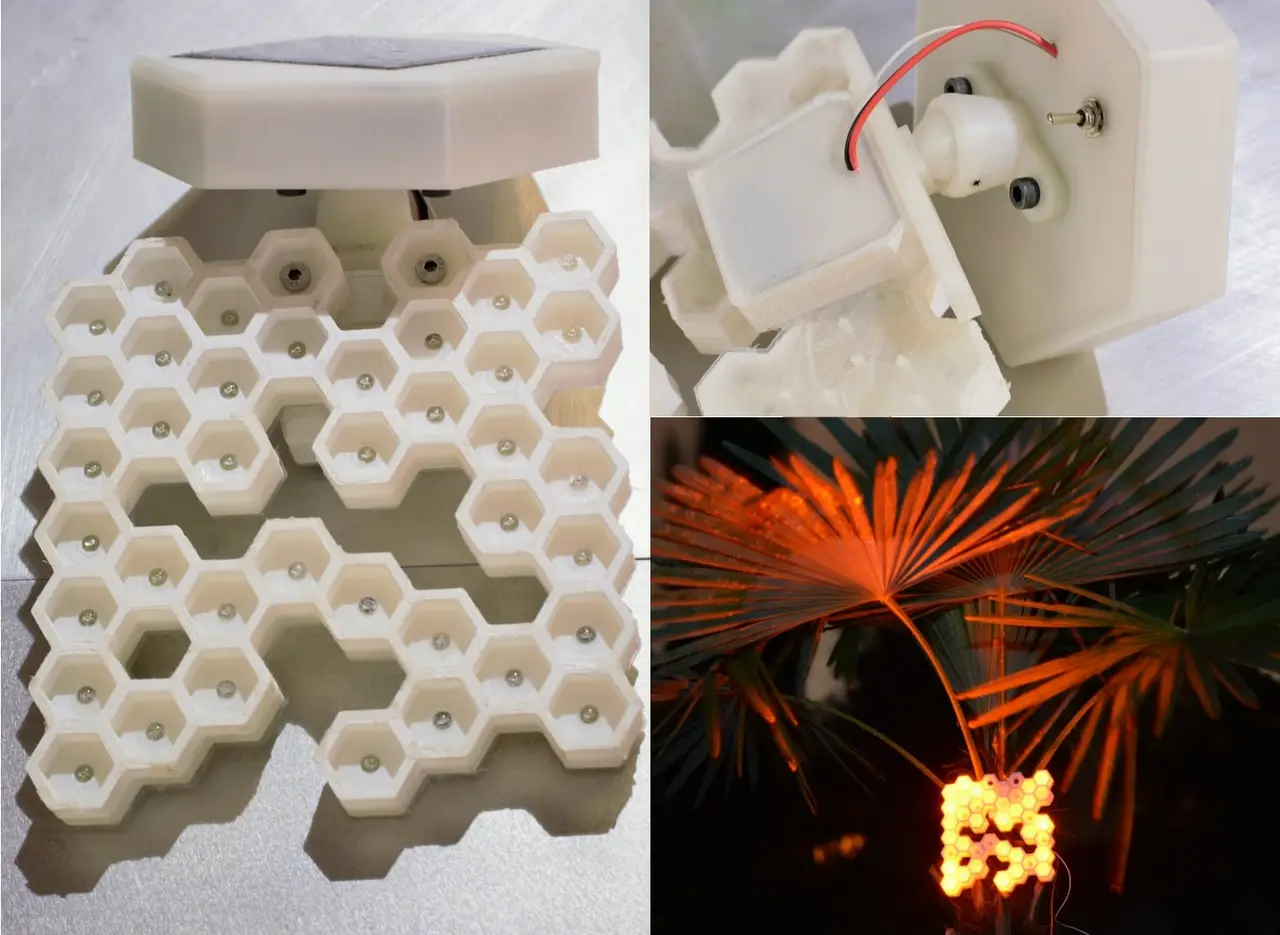

Random parametric "bee hive" LED lamp. Fully customizable, optionally solar powered. Solar cell can be mounted on the back or somewhere else entirely. I will upload some example .stl files - make your own one with OpenSCAD or Makerbot Customizer. Can be powered by 4 - 12 V like a "normal" LED lamp or as a solar powered outdoor night lamp that recharges during the day and glows in random patterns during the night in a specified time frame. Measured standby energy consumption is below 10 mA, operational power consumption bounces between 20 and 80 mA ( depends on the amount of LEDs glowing at the time). May get some improvements down the line. Video: https://youtu.be/Jzrjw_V_L-Y Building process: http://imgur.com/a/qvXDF#0 Short operating gif: http://imgur.com/9cCyTXW - Added "SolarHive_DemoAllPartsRC5.zip" which contains all the files to build the Solar Hive Lamp you see in the pictures and video. (Updated von AllpartsofDemo.zip on August 5th)
Update August 3rd: - fixed some errors in the arduino sketch. The new one is SolarHiveArduinoSketchRC5.ino and downloadable from "Thing Files"
Update August 5th: - Replaced "AllPartsofDemo.zip" with updated Files.
- Added "SolarHive_DemoAllPartsRC5_4inch.zip" which contains the demo .stl files split into sub 10 cm ( 4 inch ) parts. ( and rectangular solar and battery housing )
Descripción original del autor, publicada en Thingiverse.
