Socket Organizer Rails - 1/4, 3/8 and 1/2 Inch Drive, Split Grip Posts, No Supports (OpenSCAD)
por Arthur Both en Printables
Three socket rails for 1/4", 3/8" and 1/2" drives with split posts that grip each socket.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Arthur Both.
Archivos (3)
- Categoría
- Herramientas
- Formatos
- 3MF, STL, SCAD
- Descargas
- 0
- Publicado
Sobre este modelo

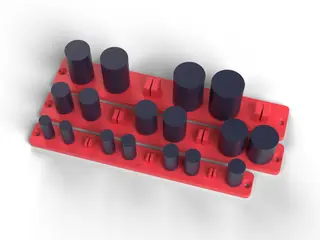

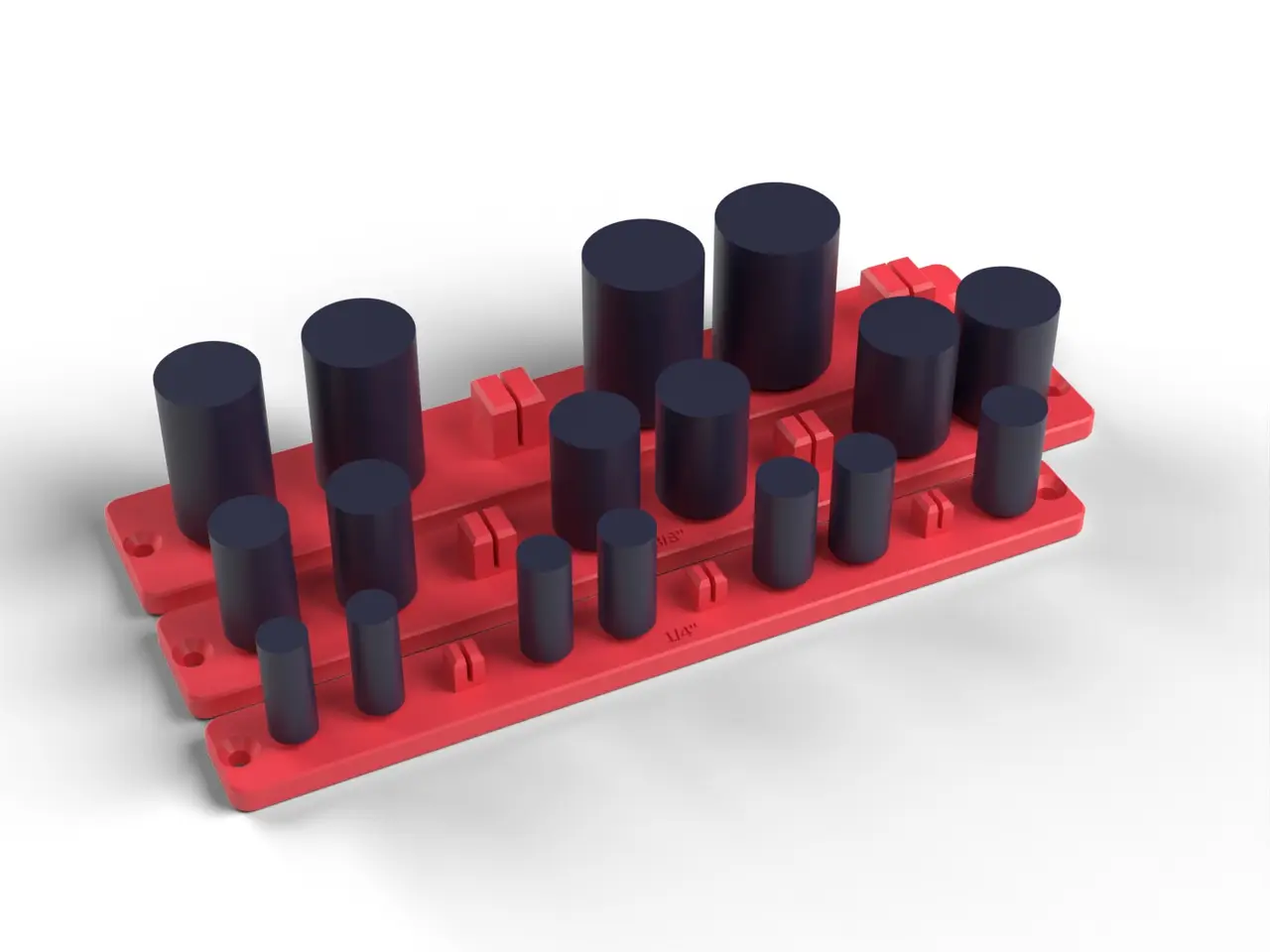

Keep your sockets in order: three rails for 1/4", 3/8" and 1/2" drive sockets. Each post is split down the middle, so its two halves spring apart a little and hold the socket. The drive size is marked on each rail, and there are countersunk screw holes at the ends for a wall, a drawer or pegboard. DETAILS • 10 posts on the 1/4" rail, 8 on the 3/8", 6 on the 1/2". Rails 194, 214 and 212 mm long. • Prints with no supports, rails flat and posts standing up. Bambu Studio: 2 h 25, 71 g for all three. • Loose sockets: raise the grip setting. PETG makes springier posts than PLA. CUSTOMIZE (OpenSCAD) Number of sockets on each rail and the post grip. Designed with AI assistance (OpenSCAD). Rendered images; not printed yet.
Descripción original del autor, publicada en Printables.
