Smoke Removal System
por Valera Perinski en Thingiverse
Smoke Removal System I have long dreamed of having a good smoke removal system, but I always encountered a problem - I couldn't find a suitable flexible hose. But one day, I saw a manicure fume extractor, and there was a separate tube available for it. Without missing this opportunity, I purchased..
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Valera Perinski.
Archivos (11)
- Adapter.STL STL · 2,9 MB

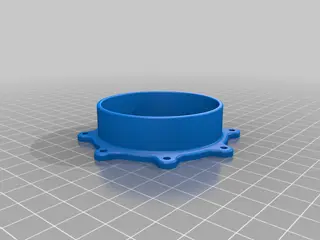

- Blower_Flangle.STL STL · 1,2 MB
- Coupling_clamp.STL STL · 112 KB

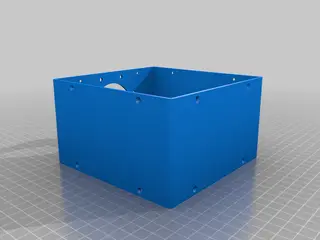

- Filter_Case_Fitting_Smoke_extractor.STL STL · 2,6 MB
- Filter_Case_no_hole.STL STL · 494 KB

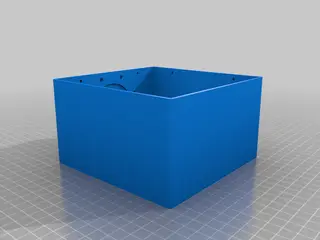

- Filter_Case.STL STL · 502 KB

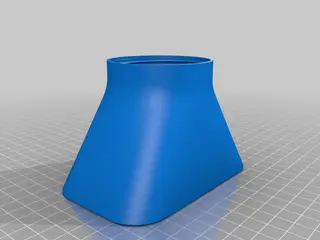

- Intake_Smoke_extractor.STL STL · 10,1 MB
- Front_Base_Smoke_extractor.STL STL · 5,7 MB
- Back_Base_Smoke_extractor_for_Blower.STL STL · 10,8 MB
- Grid_Filter.STL STL · 463 KB
- FilterBox.STEP STEP · 1,9 MB
- Categoría
- Varios
- Formatos
- STL, STEP
- Descargas
- 5,452
- Publicado
Sobre este modelo

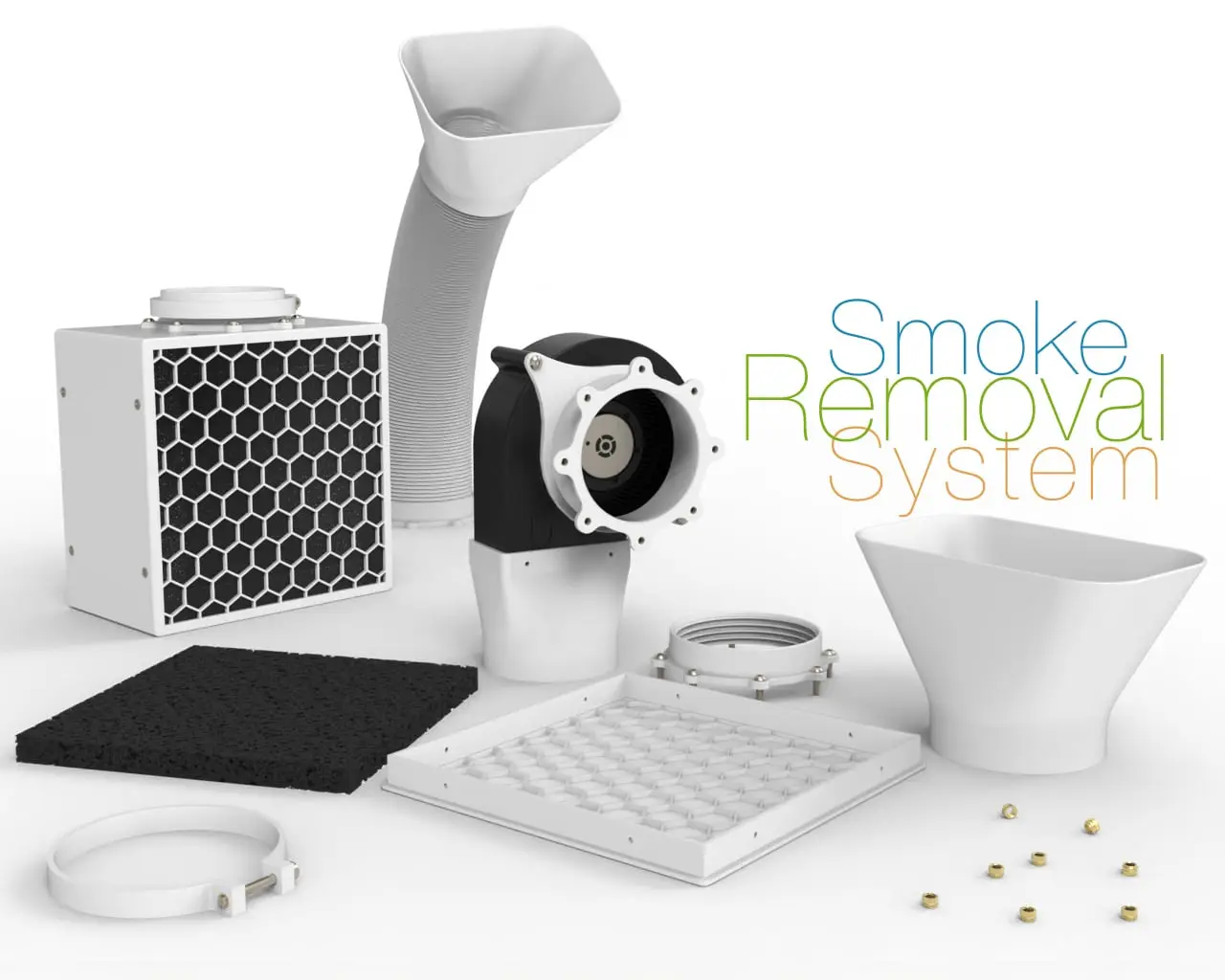

Smoke Removal System I have long dreamed of having a good smoke removal system, but I always encountered a problem - I couldn't find a suitable flexible hose. But one day, I saw a manicure fume extractor, and there was a separate tube available for it. Without missing this opportunity, I purchased it. Developing the actual system didn't take much time, but selecting the right fan turned out to be a challenging task. I tried domestic axial fans, turbines, and similar ones used in air conditioners, but only in a smaller format. Finally, I was able to try a server turbine of the 9733 format, and I settled on it.
However, there were some surprises waiting for me here... The very powerful fans turned out to be too noisy, while the quiet ones were too weak. But I found the perfect balance and chose a turbine with 4000 revolutions per minute and a 12-volt power supply. I also tried a turbine with 8000 revolutions, and although it works incredibly well, the noise becomes an issue for extended operation. Nevertheless, each of them is easily controlled by a PWM controller, and some of them even come with their own controllers.
Now I plan to integrate the entire system into the wall of my work desk. I have long wanted to upgrade it by adding new devices, including this excellent smoke removal system. Unfortunately, I don't have the option to vent the air outside, so I decided to install a block with a charcoal filter that will be placed behind the wall at the bottom. I will connect everything using a flexible tube with a diameter of 60 mm (75 mm will also work with a soft seal). Here is an approximate layout of the system:
During the operation:
Parts links below: - Dust Extractor Tube - Blower 9733 12v 6A - Blower 9733 12v 2.4A - Blower 9733 with speed controller - PWM Module 5V-35V to 0-5A - Duct Hose 60mm - Activated Carbon Filter - Insert Knurled Nuts - Button Head Screw - Wood Screw - TopZeal Filament PETG
Links to used tools: - NOGA deburring tool and Blades - Color Screwdriver Kit Hexagon
