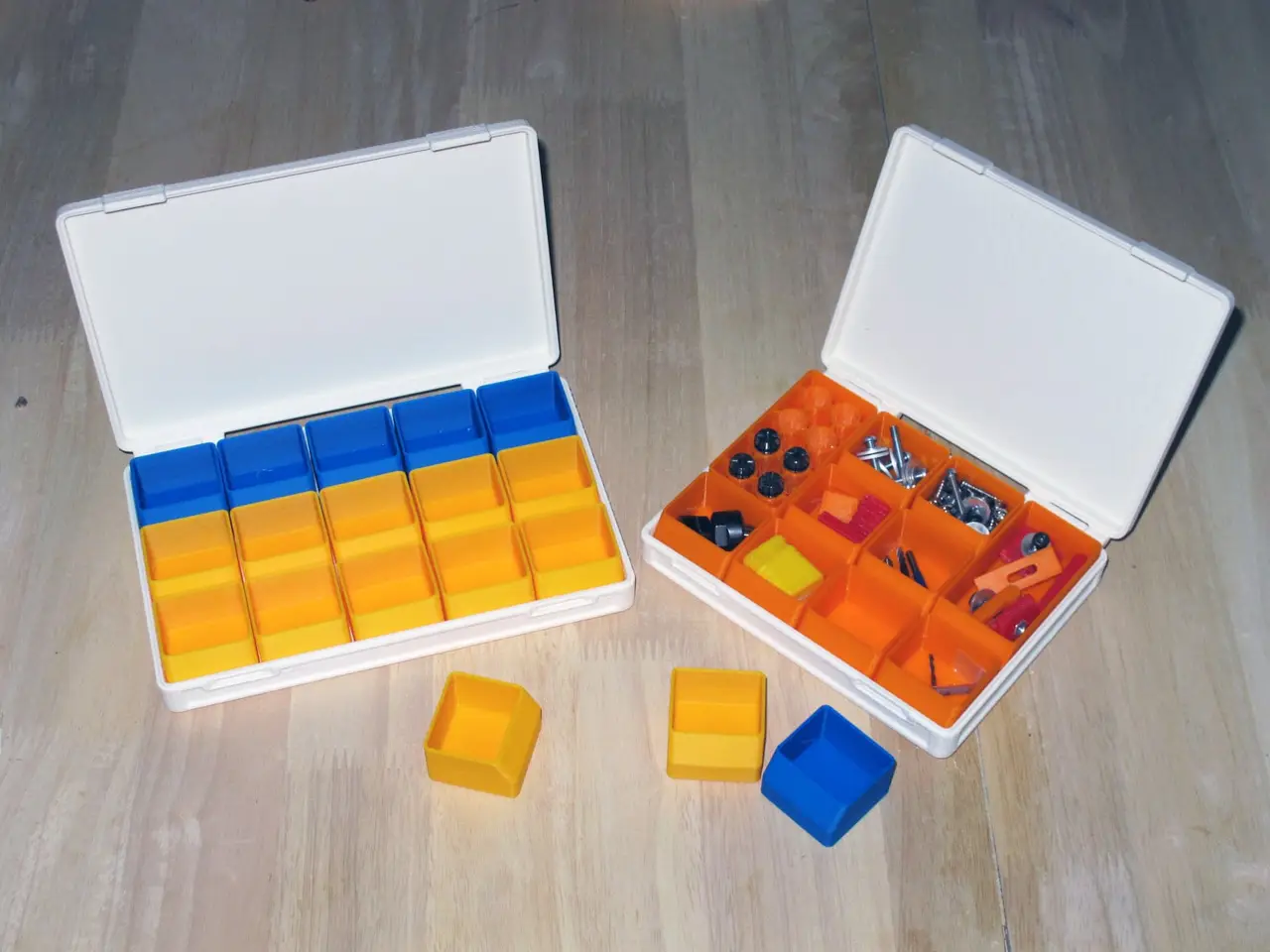

Small storage system, box with hinge

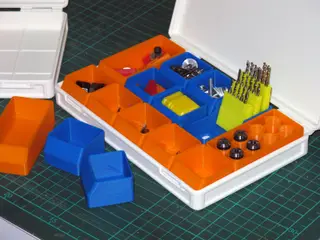

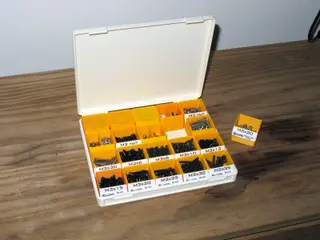

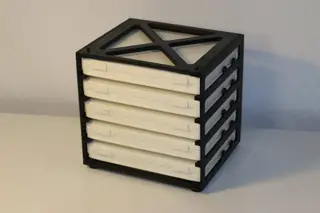

Originally designed as a screw box, I decided it could have many other uses by making different bin and size combinations. I plan to make a stacking system later on plus other bin designs and box variations. The chamfered top of the bins makes it easy to pick them out and also can be used to put a label on it. The only assembly needed is to insert a length of 1.75mm filament in the hinge holes to join the top and bottom parts. The drill bit index works for 3.17mm drill bits, also assembled by using filament as hinge pins. **Update 16 January 2020''' -Added Bin_SpoolA_38x38.stl, Bin_SpoolB_38x38.stl, Bin_SpoolC_38x38.stl and Bin_SpoolD_38x38.stl which together make a wire spool the size of a 38x38 bin, very handy. You will need to glue the two halves of the spool and the top is attached with two m2x6mm flat head screws. Update 12 February 2018 -By request I added a second version for all the box bottoms with no printing pads also a version without pads for the rack sides Rack_5b5x4_Left_NoPads and Rack_5b5x4_Right_NoPads. -Added 4b4x3 rack parts to build a rack for four boxes of 4x3 size. -Added 2x2 box. -Added 50mm high boxes in three sizes, 2x2, 2x4 and 4x4 plus a few bins for the taller boxes: Bin_38x38T, Bin_38x76T and Bin_76x76T (T for tall). Update 19 February 2017 Replaced 38x38_SlideTop_4Div.stl with a fixed version, the new one comes with its own lid that is not compatible with the other 38x38 bins. Update 27 January 2017 Added Adobe Illustrator label files for M3 series fasteners, LabelsM3_Page1.ai,LabelsM3_Page2.ai and LabelsM3_Page3.ai, so that anyone can edit them to create their own labels. Update 19 November 2016 Deleted the old rack files and added two new versions, Rack_5b5x4 (5 boxes of 5x4 size) and Rack_5b4x4. Each rack is made of five parts: _Left, _Right, _Rear and _TopBottom(x2) The change to the previous rack design is a cutout on the TopBottom part to make it easier to pull out boxes out of the rack. Update 7 November 2016 Added LabelsA5.rar with three pages of labels for different screw sizes, types and material; they are arranged to be printed in A5 sized self adhesive labels. Update 14 October 2016 Added "DrawerTray" parts, they can be used to organize the bins inside a drawer, or any other flat surface; there are many different sizes from 1x2 cells to 5x5 and they can be joined together with the DrawerTray_Clip part. Update 6 June 2016 Added the files to make a rack for five 5x4 boxes (all STL files starting with "Rack_", 5x3 and 5x2 boxes can also be used by adding the Rack_Adapter part on the sides to stop the box from sliding all the way to the rear of the rack. later on I'm going to add other rack configurations. Update 26 April 2016 Added six new bins, 38x38_Div is divided in two compartments, 38x57 are one and a half divisions wide/long, bins 38x38 and 38x76 "Slide Top" have a sliding cover to keep very small parts from falling.
