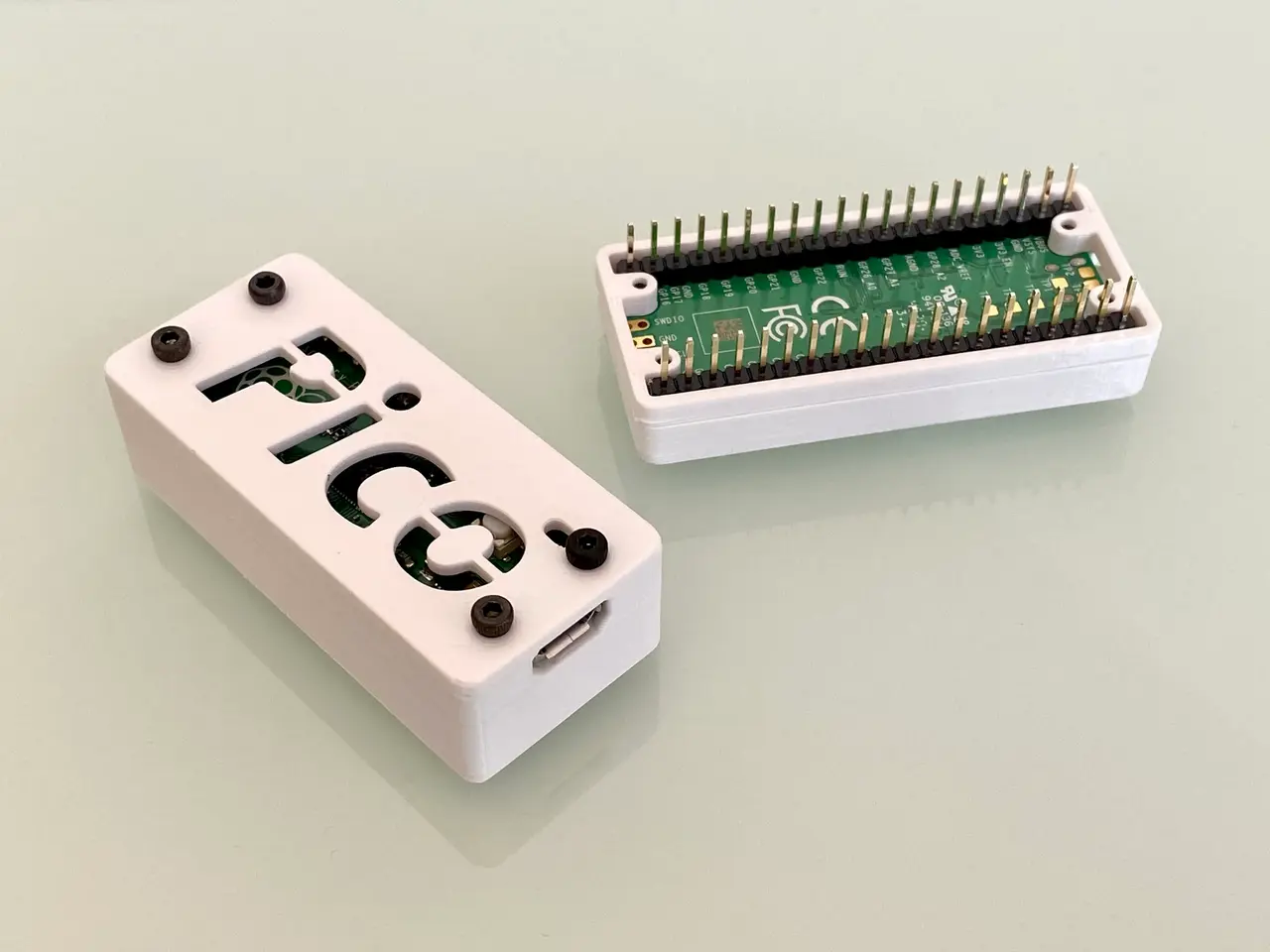

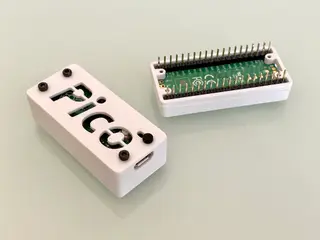

Slim modular Raspberry Pi Pico Case

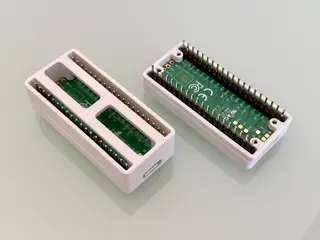

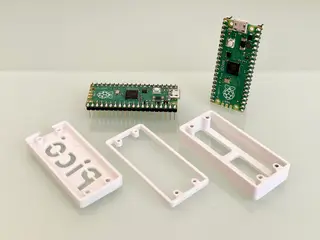

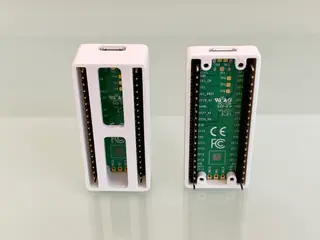

The case consists of two pieces (upper & lower). Every upper part of the case is compatible with every lower part. Just print what fits your application the best :-) Upper part: Covers the top of the Pico where the Raspberry logo and the onboard LED are located. There are two variants: With “Pico” text and without. Lower part: Holds the Pico Board firmly into the upper part. There are three variants: - Lower case: Covers the pins but they are still accessible. Additional openings allow to still see the pinout labeling on the board. - Lower case closed: Covers everything. - Lower case minimal: Just a tiny frame that fixes the board in place and makes everything very easy to access.

I added .3mf files of the closed and no text variants so you can get creative with your own case! Screws: You need four M2 screws to connect both parts of the case. Max. length: 12mm Min. length: 8 mm (best for “minimal” case variant) Print instructions: 0.2 mm layer height, no supports.

I would be very happy if you would share your experience with the case and photos of the printed results in the comments! :-) This is my private creation allowed only for non-commercial use.
