Slats Lamp - Slotted Cylinder E27 Lamp Shade with Table and Wall Stand
A clean cylinder with 40 thin vertical slots that run over the conical shoulder, projecting fine stripes of light on the walls and ceiling. The stand is just as calm: an L-arm with a soft fillet, a fluted square column and a base with engraved slats.
Cults3D entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalLicencia de uso privado de Cults3D: puedes imprimirlo para ti. No se permite compartir el archivo ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a VRam3D.
Archivos (5)
- Slats_Lamp_Arm.stl STL
- Slats_Lamp_Shade.stl STL
- Slats_Lamp_Table_Base.stl STL
- Slats_Lamp_Table_Column.stl STL
- Slats_Lamp_Wall_Plate.stl STL
- Categoría
- Hogar
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo
A clean cylinder with 40 thin vertical slots that run over the conical shoulder, projecting fine stripes of light on the walls and ceiling. The stand is just as calm: an L-arm with a soft fillet, a fluted square column and a base with engraved slats.
One design, three ways to use it:

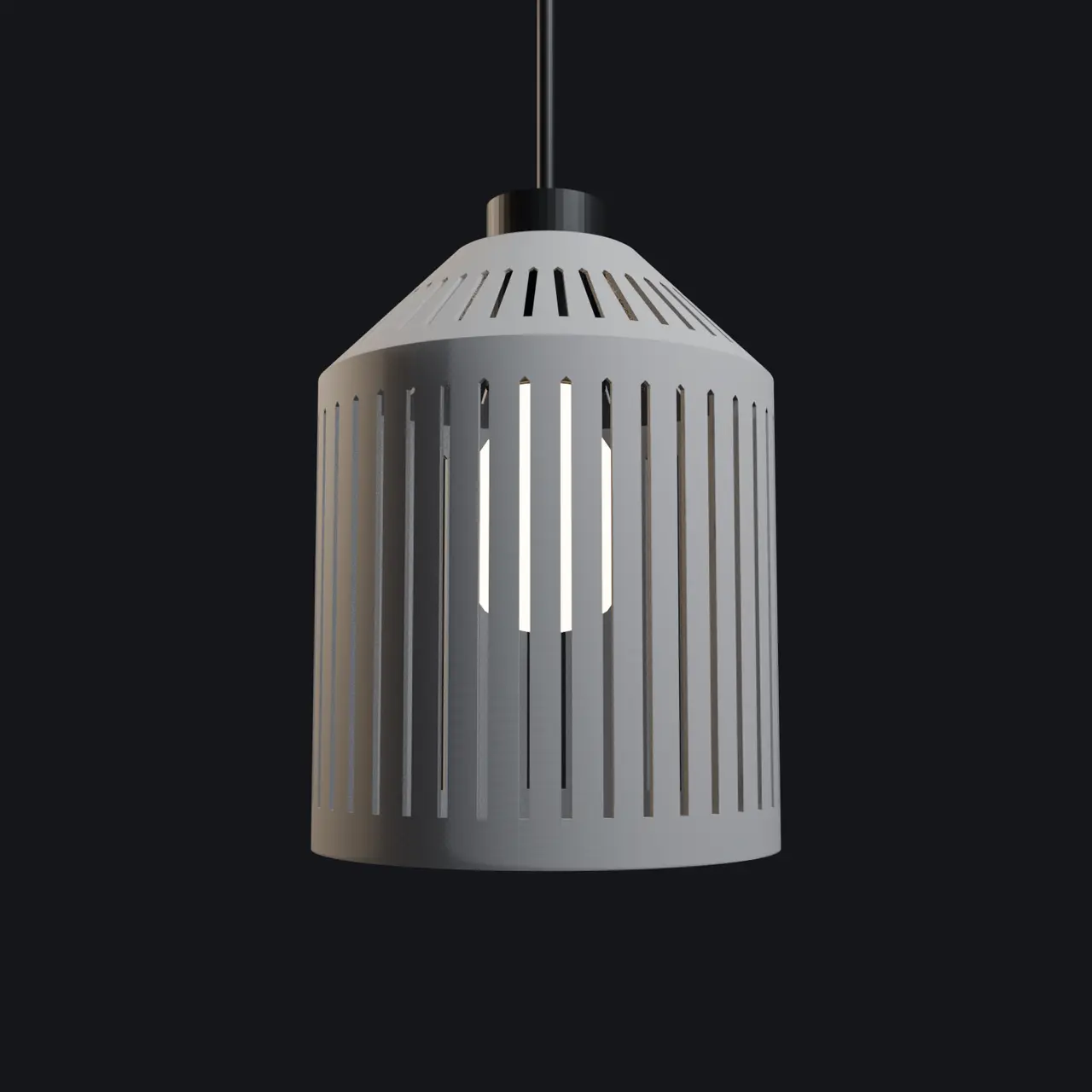

- PENDANT: hang the shade from the ceiling on any standard E27 pendant cord set.

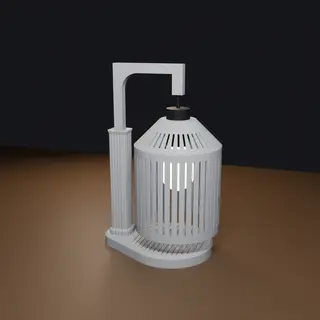

- TABLE LAMP: the shade hangs from the arm of a minimalist stand. The shade hangs over a wide base,
so the lamp is very stable (it needs a tilt of about 25 degrees to tip over).

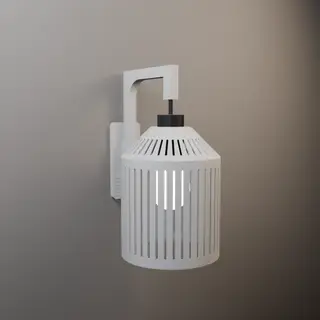

- WALL LAMP: the same arm drops into a wall plate fixed with two screws.
No rewiring, no glue, no screws in the lamp itself: you only need a standard E27 pendant cord set
(cable + lamp holder with shade ring) and an LED bulb. The cable snaps into hidden channels of the

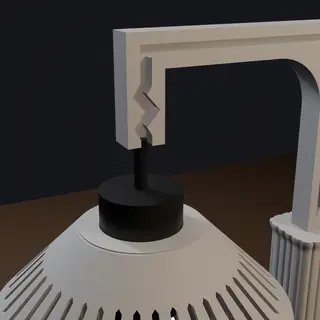

stand, and a zig-zag cable grip at the tip of the arm holds the shade at the height you choose.
Every part prints without supports and is already oriented in the STL files.
WHAT TO PRINT
- Pendant lamp ...... Shade
- Table lamp ........ Shade + Arm + Table_Column + Table_Base
- Wall lamp ......... Shade + Arm + Wall_Plate
PARAMETERS
- Shade: 150 mm diameter x 195 mm high. 40 vertical slots (3 mm) that continue over the 45 deg shoulder, 2.0 mm wall.
- Stand: clean L-arm with radius fillet, fluted square column, base with engraved slats, slatted wall plate.
- Mounting hole: 40.5 mm diameter with a 3 mm thick flat clamping area (standard E27 holder
with threaded sleeve and shade ring).
- Table lamp assembled: 214 x 152 x 330 mm (L x W x H), about 796 g printed
including the shade. Static tip-over angle about 25 deg in the weakest direction.
- Wall lamp: projects 201 mm from the wall, 285 mm high in total.
- Joints: 12 x 14 mm rectangular pegs in 12.5 x 14.5 mm sockets (0.25 mm clearance per side).
- Cable channel: snap-in, 5.4 mm mouth / 6.8 mm inside, for round 2-core cords of 6-7 mm.
- Bulb: A60 LED (60 x 108 mm) or LED filament ST64 / G80; at least 24 mm from glass to plastic.
- Approximate filament: shade 183 g, arm 45 g, column 125 g,
base 333 g, wall plate 64 g.
Descripción original del autor, publicada en Cults3D.
