SKS Bluemels rear fender seattube clamp
por Geoff Rahe en Thingiverse

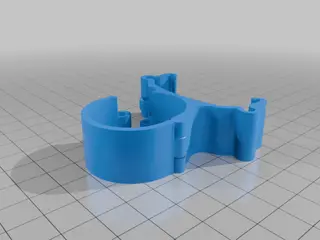

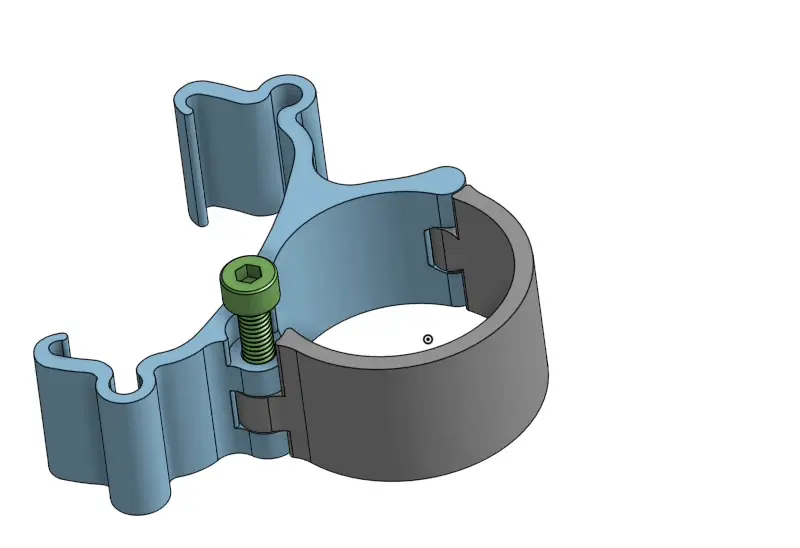

This is a clamp which will fit onto a SKS Bluemels 53mm fenders, and attaches them to a 29mm diameter seattube. The hinge can be printed in place. I used PETG with a 0.4mm nozzle. The design requires a 14mm M4 sockethead bolt to close the clamp. The design can be easily modified to change the seat..
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Geoff Rahe.
Archivos (1)
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 320
- Publicado
Sobre este modelo

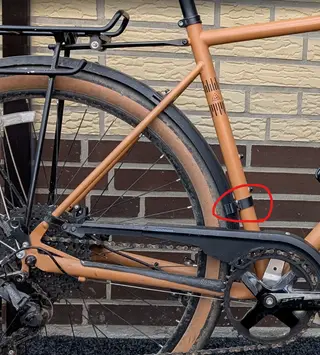

This is a clamp which will fit onto a SKS Bluemels 53mm fenders, and attaches them to a 29mm diameter seattube. The hinge can be printed in place. I used PETG with a 0.4mm nozzle. The design requires a 14mm M4 sockethead bolt to close the clamp. The design can be easily modified to change the seat tube diameter, please ask if your bike has a different seat tube size.
Descripción original del autor, publicada en Thingiverse.
