Skadis Wera 3950 Hex-Plus hex key set holder — modelo 3D

Skadis Wera 3950 Hex-Plus hex key set holder

por aeberbach en Printables

Drop in, read markings, no obstructing

Descargar gratis Ver en Printables

Todos los archivos (2) en un ZIP

Licencia

Solo uso personal

CC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual

Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a aeberbach.

Archivos (2)
Categoría
Organización
Formatos
STL
Descargas
1
Publicado

Sobre este modelo

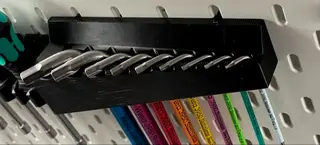

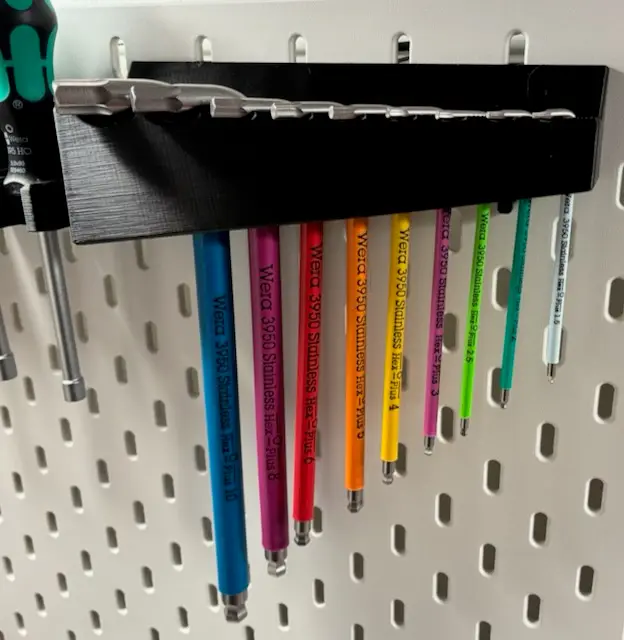

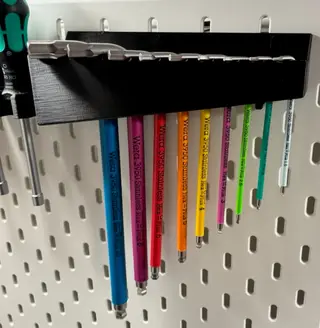

I saw there are already five or six other versions but all miss out on a thing I want. I wanted to model the radius in the bend of each key so that the key sits more naturally in the holder. I wanted the keys to be dropped in from the top rather than clipped in, but not obstruct any other key (as they do in the supplied holder). I wanted to be able to get a key out easily (unlike the supplied holder). I wanted to be able to see the markings on the side of each key - sometimes I know which key to grab by colour but not always if it is a size I don't use often. Being able to see the text means storing the key at a 45 degree angle. Probably the inch set would fit, I have the metric set. Print with the base flat on the sheet so that the circular cuts are touching it, the top will slope with the contours facing up - no supports are needed. Again this uses the slide-in hooks used by TJDesign.

Descripción original del autor, publicada en Printables.
