SKÅDIS wall spacers and caps (20 mm stand-off)
How I fixed my SKÅDIS board straight to a brick wall. Each fixing, from the front: printed cap, M5 x 25 penny washer, SKÅDIS board, printed 20 mm spacer, wall. The 20 mm stand-off gives the hooks room behind the board, and the cap hides the screw head and washer neatly.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a andiprint.
Archivos (3)

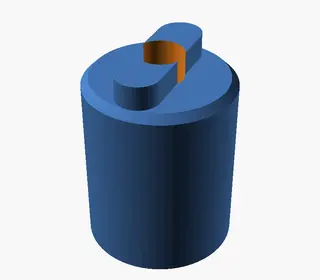

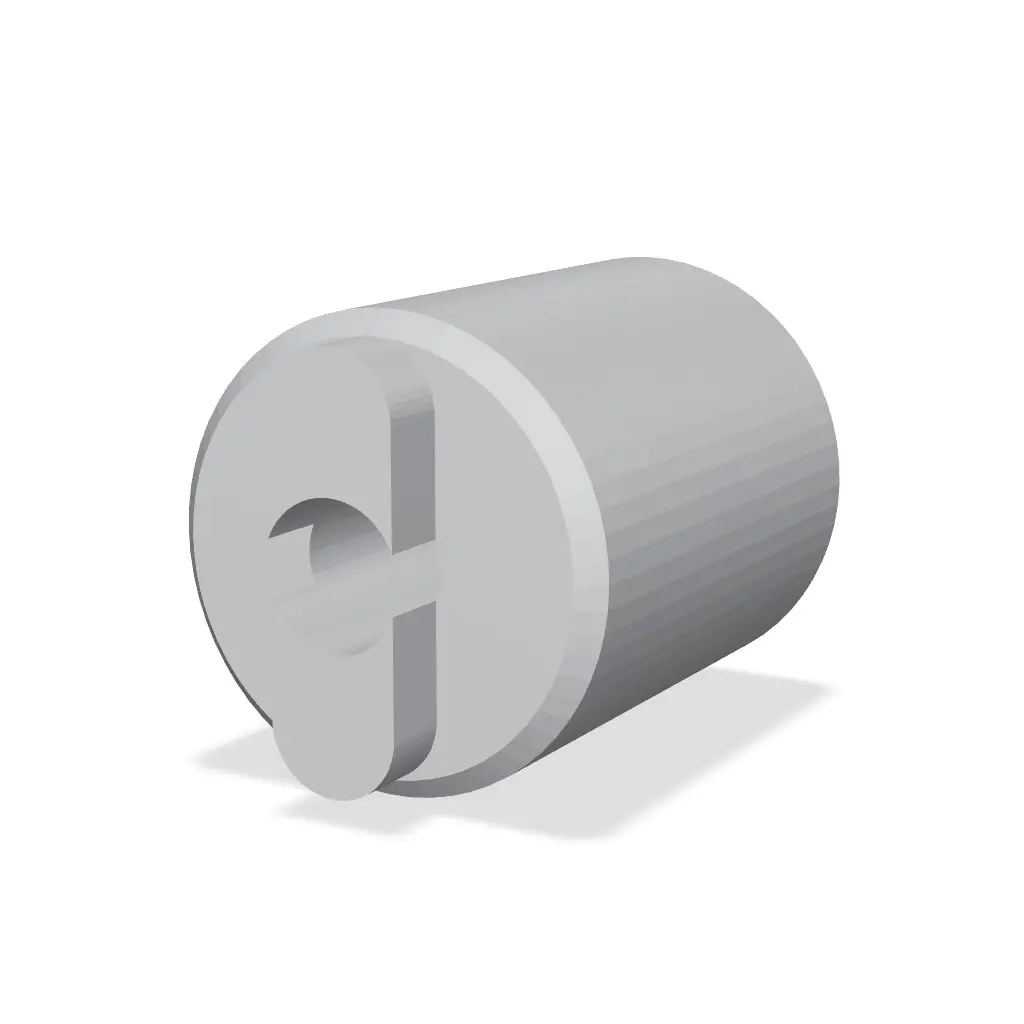

- spacer.stl STL · 175 KB

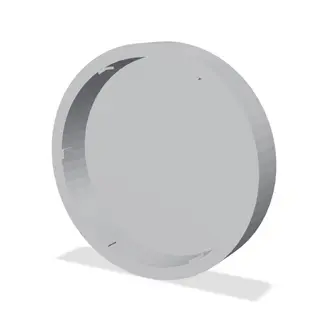

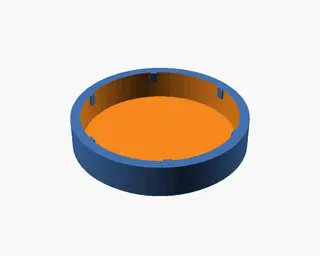

- cap.stl STL · 120 KB
- board_fixings.scad SCAD
- Categoría
- Herramientas
- Formatos
- STL, SCAD
- Descargas
- 0
- Publicado
Sobre este modelo
How I fixed my SKÅDIS board straight to a brick wall. Each fixing, from the front: printed cap, M5 x 25 penny washer, SKÅDIS board, printed 20 mm spacer, wall. The 20 mm stand-off gives the hooks room behind the board, and the cap hides the screw head and washer neatly.
Hardware per fixing: one 4.5 x 60 mm screw and a 7 mm wall plug. I used 8 fixings on a large board; print 10 of each for spares. The spacer is 16 mm across with a 5 mm hole; change sizes at the top of board_fixings.scad.
Print settings: PETG, 0.2 mm layers, 4 walls, 25% gyroid, no supports.
All 10 parts of my SKÅDIS network rack (hook bars, switch, PoE injector, mini PC, SSDs, smart home hubs, Zigbee dongle, wall spacers) are on my profile and in my "SKÅDIS network rack" collection. Editable OpenSCAD source for everything: https://github.com/PrimroseHA/skadis-network-mounts
Licence: Creative Commons BY-NC-SA 4.0 (free to print, remix and share for non-commercial use, with attribution).
