SKADIS Universal Mounting System (SUMS) - complete package (23+ attachments)
por James Mayor en Printables

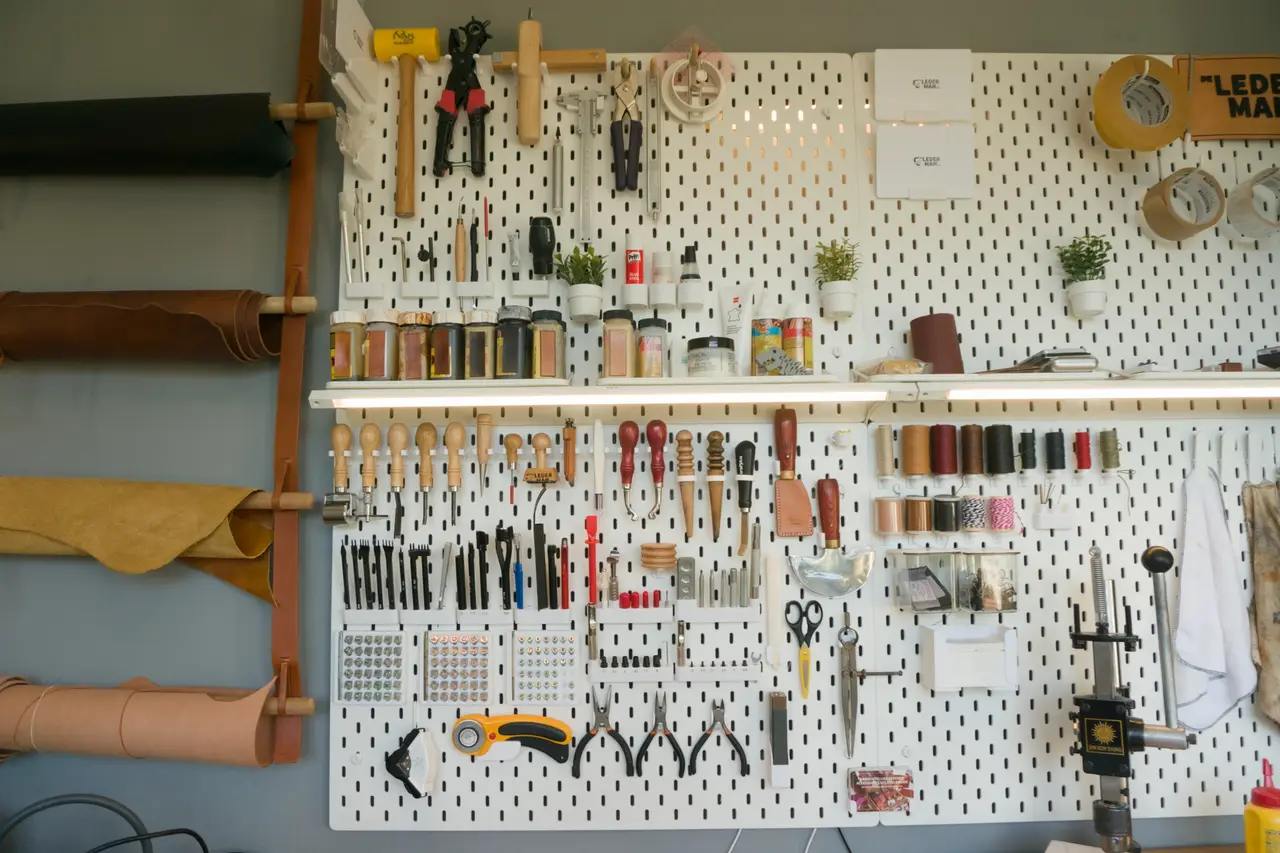

Use the IKEA SKADIS boards to organize your workshop with these 23 attachments. Build upon a simple universal peg-system
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a James Mayor.
Archivos (82)
- SUMS Peg.stl STL · 516 KB
- SUMS Peg.f3d F3D · 138 KB
- SUMS Base 1 open .stl STL · 36 KB
- SUMS Base 1 open.f3d F3D · 108 KB
- SUMS Base 1 closed.stl STL · 64 KB
- SUMS Base 1 closed.f3d F3D · 102 KB
- SUMS Base 2 vertical closed and open.stl STL · 98 KB
- SUMS Base 2 vertical closed and open.f3d F3D · 208 KB
- SUMS Base 2 horizontal open.stl STL · 68 KB
- SUMS Base 2 horizontal open.f3d F3D · 153 KB
- SUMS Gridfinity base 1x1.stl STL · 397 KB
- SUMS Gridfinity base 1x4.stl STL · 727 KB
- SUMS Gridfinity base 2x1.stl STL · 481 KB
- SUMS Gridfinity base 1x2.stl STL · 435 KB
- SUMS Gridfinity base 1x3.stl STL · 576 KB
- SUMS Gridfinity base 2x3.stl STL · 847 KB
- SUMS Gridfinity base 2x2.stl STL · 609 KB
- SUMS Gridfinity base 2x4.stl STL · 1,1 MB
- SUMS Gridfinity base - fillerplate.stl STL · 18 KB
- SUMS Lego - base plate 3x2.stl STL · 257 KB
- SUMS Lego - base plate 2x2 low.stl STL · 195 KB
- SUMS Lego - base plate 2x2 high.stl STL · 193 KB
- SUMS Display Pegholder - single.stl STL · 409 KB
- SUMS Display Pegholder - with price tag.stl STL · 465 KB
- SUMS Skydrag mount for Skadis.stl STL · 165 KB
- SUMS Skydrag mount for Skadis - with cable-channel.stl STL · 387 KB
- SUMS Wax Thread Holder .stl STL · 402 KB
- SUMS Wax Thread Holder - longer .stl STL · 378 KB
- SUMS Wax thread holder peg - small.stl STL · 283 KB
- SUMS Wax thread holder peg - medium.stl STL · 289 KB
- SUMS Wax thread holder peg - large.stl STL · 273 KB
- SUMS Wax thread holder peg - 68.stl STL · 248 KB
- SUMS Wax thread holder peg - 57.stl STL · 252 KB
- SUMS Round flask holder - universal.stl STL · 582 KB
- SUMS Round flask holder - insert 32,5mm.stl STL · 269 KB
- SUMS Round flask holder - insert 31,5mm.stl STL · 276 KB
- SUMS Round flask holder - insert 27mm.stl STL · 266 KB
- SUMS Round flask holder - insert 30,8mm.stl STL · 275 KB
- SUMS Round flask holder - insert 26mm.stl STL · 264 KB
- SUMS Round tool holder - universal 3 holes .stl STL · 738 KB
- SUMS Round tool holder - universal 5 holes.stl STL · 851 KB
- SUMS Round tool holder - universal 8 holes.stl STL · 1,1 MB
- SUMS Round tool holder tube - 11.4mm.stl STL · 53 KB
- SUMS Round tool holder tube - 9.4mm.stl STL · 234 KB
- SUMS Round tool holder tube - 9.9mm.stl STL · 237 KB
- SUMS Round tool holder tube - 3.2mm.stl STL · 189 KB
- SUMS Round tool holder tube - 5.8mm.stl STL · 215 KB
- SUMS Round tool holder tube - 6mm.stl STL · 216 KB
- SUMS Round tool holder tube - 8.4mm.stl STL · 228 KB
- SUMS Round tool holder tube - 10.4mm.stl STL · 212 KB
- SUMS Round tool holder tube - 7.2mm.stl STL · 219 KB
- SUMS Round tool holder tube - 6.8mm.stl STL · 216 KB
- SUMS Round tool holder tube - 2.1mm.stl STL · 181 KB
- SUMS Round tool holder tube - 4,5mm.stl STL · 202 KB
- SUMS Hanging tool.stl STL · 438 KB
- SUMS Hanging tool - wider.stl STL · 472 KB
- SUMS Hanging tool - round.stl STL · 458 KB
- SUMS Skiving knife.stl STL · 354 KB
- SUMS Calipers.stl STL · 490 KB
- SUMS Edge painter.stl STL · 498 KB
- Categoría
- Organización
- Formatos
- STL, F3D
- Descargas
- 602
- Publicado
Sobre este modelo
The SKADIS Universal Mounting System (SUMS) is build upon the IKEA SKADIS board and used a standardized peg system. With this system, you can use one type of peg to attach various types of attachments. If an attachment is no longer needed, breaks or has gotten a new design, you can re-use the pegs in order to save some plastic. This also makes printing the attachments easier because it's not necessary to include a peg in the design so you can often print without supports. 🦾 Base peg In this model you can find the peg, including the Fusion360 files for the base plates. Feel free to create your own models on this system. It has served me and my hobby-leathercraft-studio nicely! 😀 - SUMS peg (used in all the attachments)
- SUMS base plates for you to create your own models
Printing You can print the pegs upside down without support. The pegs may have a tight fit with the printed attachments, but this is by design. You can press them in by force. You can use your own preferred settings, but mine are printed in PLA with 20% infill, two walls and 0.2mm STRUCTURAL preset. 🧩 Attachments Upon the years, the number of attachments has grown. And it is still growing. Find all the details of the individual models on my profile. - Gridfinity base plates
- LEGO plates
- Product display pegs, usable on markets
- Skydrag light mount
Models with variable inserts In a few models, the main model is created in a large size. Using various inserts, you can vary sizes for the individual tools or products you want to store. Depending on the model, this is with various sized tubes, pegs or inserts. These are also added in the corresponding model folders. - Wax thread
- Round flasks
- Round tools in 3, 5 or 8 configuration

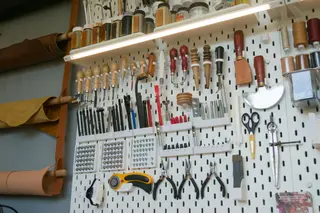

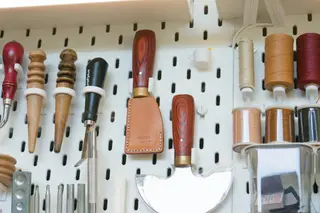

Models for individual tools - Tool holders for various (leathercraft) tools
- Wide tool holders in three designs
- Skiving knife
- Calipers
- Edge painter

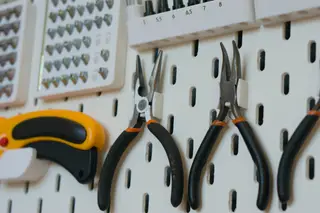

- Pliers
- Straight peg
- Wing divider
- Leather stamp letter sets
- Acrylic templates
- Square stamp
- Bone folder

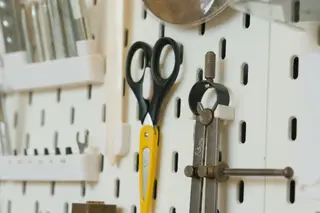

- Scissors
- Businesscards
- Tissuebox
- Paper holder
BONUS: a little cup of coffee Design your own attachments The Fusion 360 files are attached so you can build your own attachments upon this system. You can find the files for the pegs, and several starting mounting plates in this model. Make sure to remix this model to inspire me and others with your creativity. ❤ Love to hear your feedback Let me know what you think of this model, and how you think I can extend and improve it. I’m curious for your makes and remixes!
