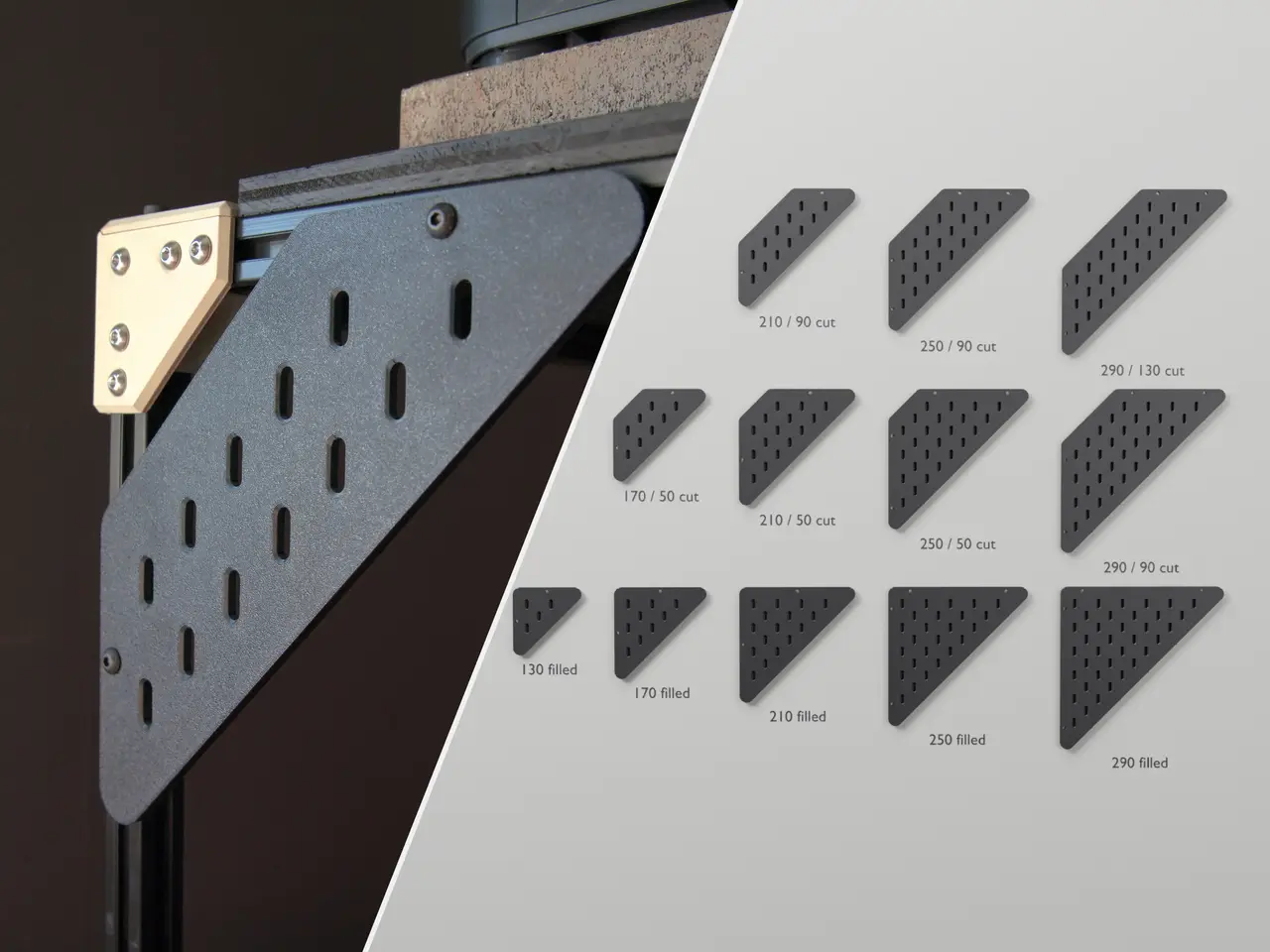

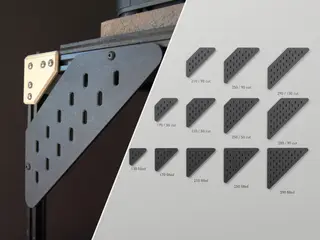

Skadis/ SKÅDIS Diagonal Corner Boards

Set of different-size Corner Skadis Boards. I originally designed this to attach to 2020 extrusion framing. Uses M5 clearance holes for mounting.

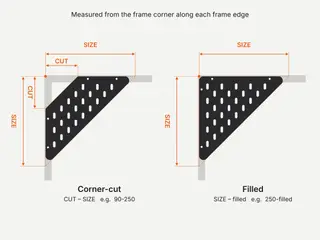

Sizing Chart: File Name Size Corner cut Printed footprint M5 holes Slots

Skadis_Corner_50-170 170 mm 50 mm 153 × 153 mm 2 8

Skadis_Corner_50-210 210 mm 50 mm 193 × 193 mm 2 15

Skadis_Corner_90-210 210 mm 90 mm 193 × 193 mm 2 12

Skadis_Corner_50-250 250 mm 50 mm 233 × 233 mm 4 24

Skadis_Corner_90-250 250 mm 90 mm 233 × 233 mm 4 21

Skadis_Corner_90-290 290 mm 90 mm 273 × 273 mm 4 32

Skadis_Corner_130-290 290 mm 130 mm 273 × 273 mm 4 27

Skadis_Corner_130-filled 130 mm none 113 × 113 mm 2 4

Skadis_Corner_170-filled 170 mm none 153 × 153 mm 2 9

Skadis_Corner_210-filled 210 mm none 193 × 193 mm 2 16

Skadis_Corner_250-filled 250 mm none 233 × 233 mm 4 25

Skadis_Corner_290-filled 290 mm none 273 × 273 mm 4 36
