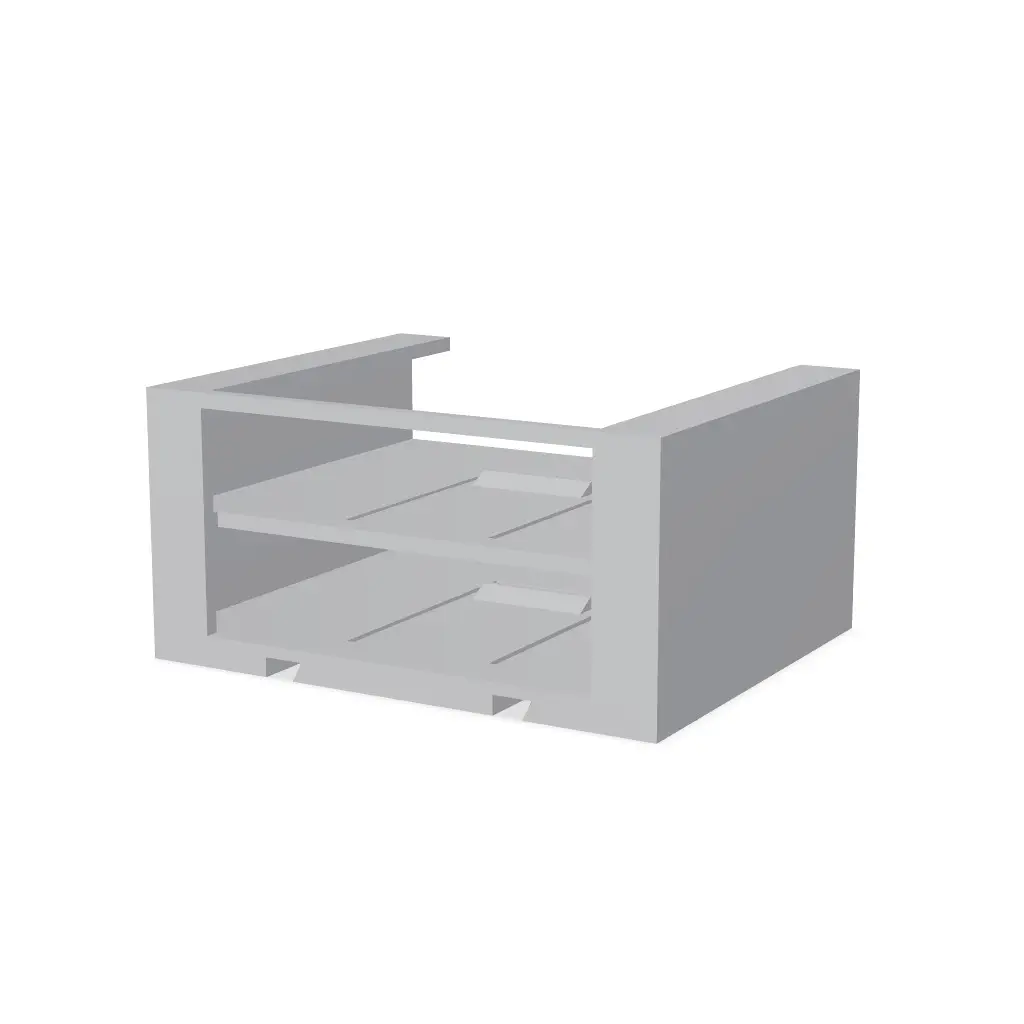

SKÅDIS rack for 2x UGREEN 2.5in USB-C SSD cases

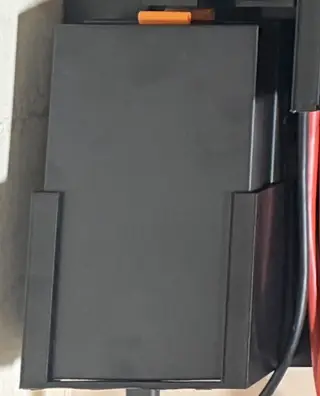

Two upright slots, front to back, for UGREEN USB-C 3.1 Gen 2 2.5" enclosures (model 80556, listed at 134 x 82 x 16 mm). Sprung bumps in each slot grip anything from 14.6 to 16.6 mm thick, so other slim enclosures fit too. The rack holds the lower 70 mm or so and the rest stands proud.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a andiprint.
Archivos (5)
- ssd_rack_PRINT.stl STL · 31 KB
- hook_bar_x2.stl STL · 84 KB
- UGREEN_SSD_rack_full_plate.3mf 3MF · 8 KB
- ssd_rack.scad SCAD
- skadis_hooks.scad SCAD
- Categoría
- Herramientas
- Formatos
- STL, 3MF, SCAD
- Descargas (todas las plataformas)
- 0
- Publicado
Sobre este modelo
Two upright slots, front to back, for UGREEN USB-C 3.1 Gen 2 2.5" enclosures (model 80556, listed at 134 x 82 x 16 mm). Sprung bumps in each slot grip anything from 14.6 to 16.6 mm thick, so other slim enclosures fit too. The rack holds the lower 70 mm or so and the rest stands proud.

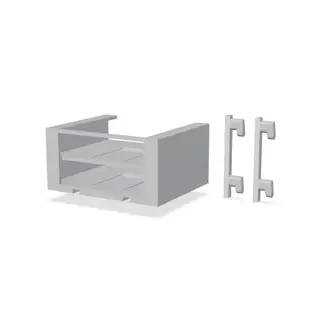

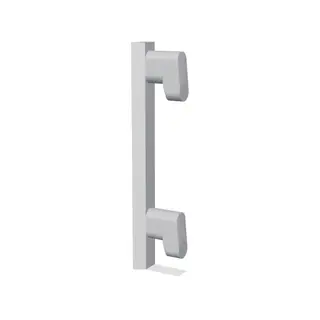

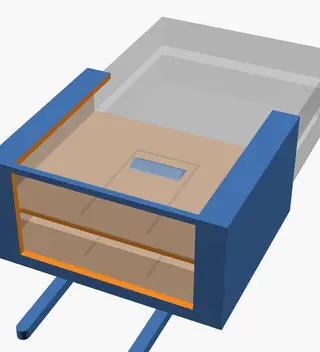

The floor is two side ledges with the middle open, so a USB-C lead comes straight out of the bottom. 8 mm front lips leave the labels and LEDs showing. Hangs on 2 hook bars (included). Print upside down, no supports. About 76 g with the bars.
Print settings: PETG, 0.2 mm layers, 4 walls, 25% gyroid, no supports.
All 10 parts of my SKÅDIS network rack (hook bars, switch, PoE injector, mini PC, SSDs, smart home hubs, Zigbee dongle, wall spacers) are on my profile and in my "SKÅDIS network rack" collection. Editable OpenSCAD source for everything: https://github.com/PrimroseHA/skadis-network-mounts
Licence: Creative Commons BY-NC-SA 4.0 (free to print, remix and share for non-commercial use, with attribution).
