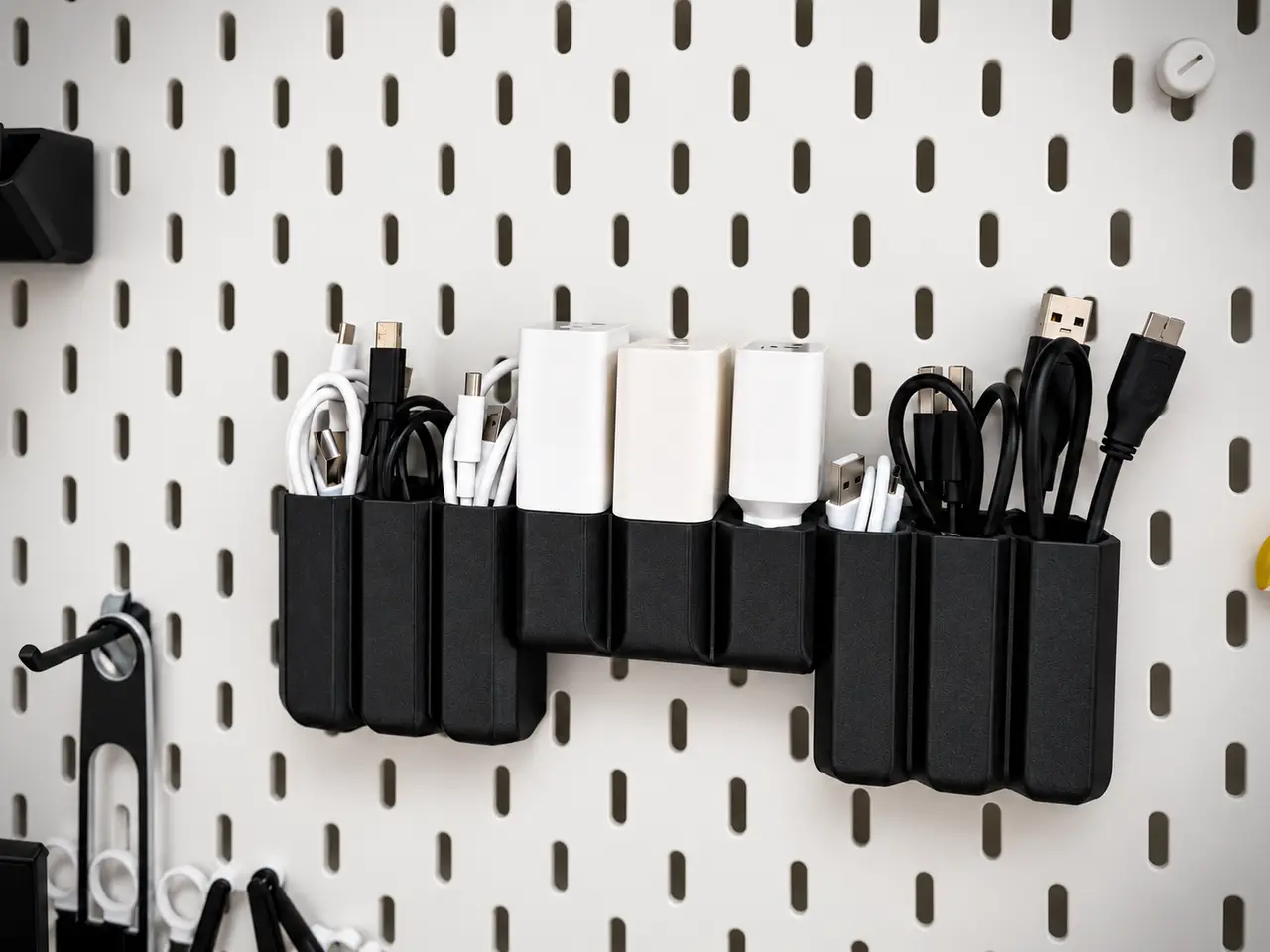

SKÅDIS Phone Charger & Cable Holder System

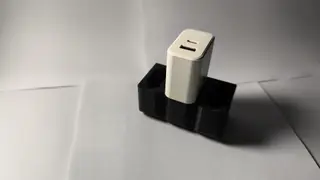

This modular system is designed for IKEA SKÅDIS pegboards and includes holders for both phone chargers and cables. The charger holder is designed around the European Europlug (CEE 7/16) standard, commonly used on phone chargers and other small electronic devices in continental Europe. The system uses a separate SKÅDIS hook that fits firmly into the pegboard. Three holder variants are included to compensate for small differences between printers and materials: - Loose Fit – easier insertion and removal.

- Close Fit – balanced fit with good retention.

- Tight Fit – stronger grip and minimal movement.

The same hook can be used with both the phone charger holder and the cable holder. All parts are designed to print without supports. The holders can be printed in their provided orientation. For the separate SKÅDIS hook, rotate/reposition the model so that the hook looks upwards. Printing recommendations: - Layer height: 0.20 mm

- Nozzle: 0.4 mm

- Walls/perimeters: 3 or more

- Infill: 15%

- Supports: Not required

- Material: PLA or PETG

Because tolerances vary between printers, materials and slicer settings, I recommend printing the close fit and changing if it does not works for you. Happy printing!
