SKÅDIS mount for TP-Link TL-SG1024D 24-port switch
Hangs the TP-Link TL-SG1024D (294 x 180 x 44 mm) flat on the board with the ports facing down and power at the top. It reuses the switch's own metal 19" rack ears: they rest on two printed shelves, bolted through the rack holes with M6 bolts (the holes are slotted +/-2.5 mm). Two side clips near the
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a andiprint.
Archivos (8)
- shelf_l.stl STL · 62 KB
- shelf_r.stl STL · 61 KB
- clip_l.stl STL · 7 KB
- clip_r.stl STL · 6 KB
- hook_bar_x6.stl STL · 84 KB
- SG1024D_switch_mount_full_plate.3mf 3MF · 169 KB
- sg1024d_skadis.scad SCAD
- skadis_hooks.scad SCAD
- Categoría
- Herramientas
- Formatos
- STL, 3MF, SCAD
- Descargas
- 0
- Publicado
Sobre este modelo

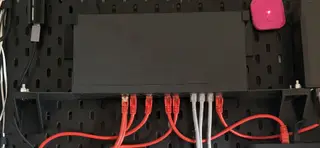

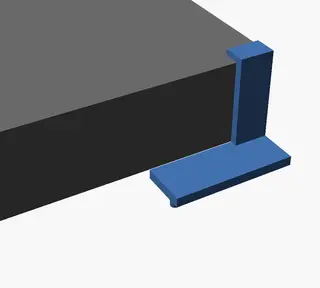

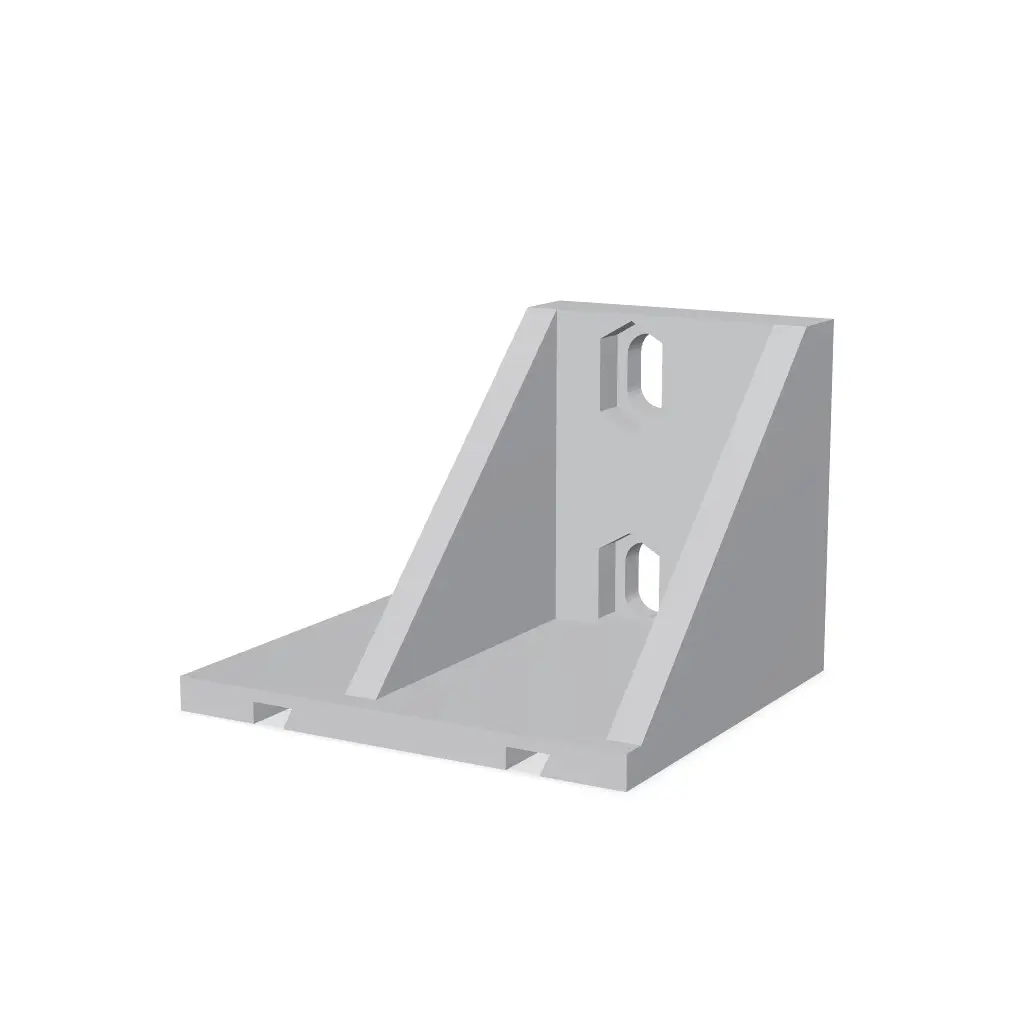

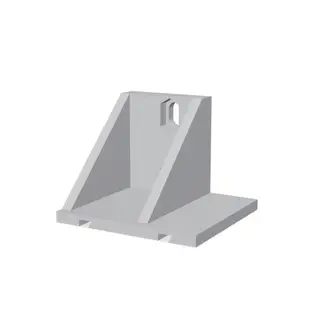

Hangs the TP-Link TL-SG1024D (294 x 180 x 44 mm) flat on the board with the ports facing down and power at the top. It reuses the switch's own metal 19" rack ears: they rest on two printed shelves, bolted through the rack holes with M6 bolts (the holes are slotted +/-2.5 mm). Two side clips near the top have a lip over the front edge and grip clear of the side vents.

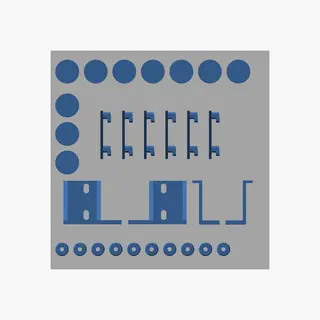

Parts: 2 shelves (L/R), 2 clips (L/R), 6 hook bars. Hardware: 4 x M6 x 16 bolts and nuts. The full plate is about 190 g of PETG. The clips print standing on their top end with no overhangs.
Print settings: PETG, 0.2 mm layers, 4 walls, 25% gyroid, no supports.
All 10 parts of my SKÅDIS network rack (hook bars, switch, PoE injector, mini PC, SSDs, smart home hubs, Zigbee dongle, wall spacers) are on my profile and in my "SKÅDIS network rack" collection. Editable OpenSCAD source for everything: https://github.com/PrimroseHA/skadis-network-mounts
Licence: Creative Commons BY-NC-SA 4.0 (free to print, remix and share for non-commercial use, with attribution).
Descripción original del autor, publicada en Thangs.
