SKÅDIS holder for Omada POE380S PoE++ injector

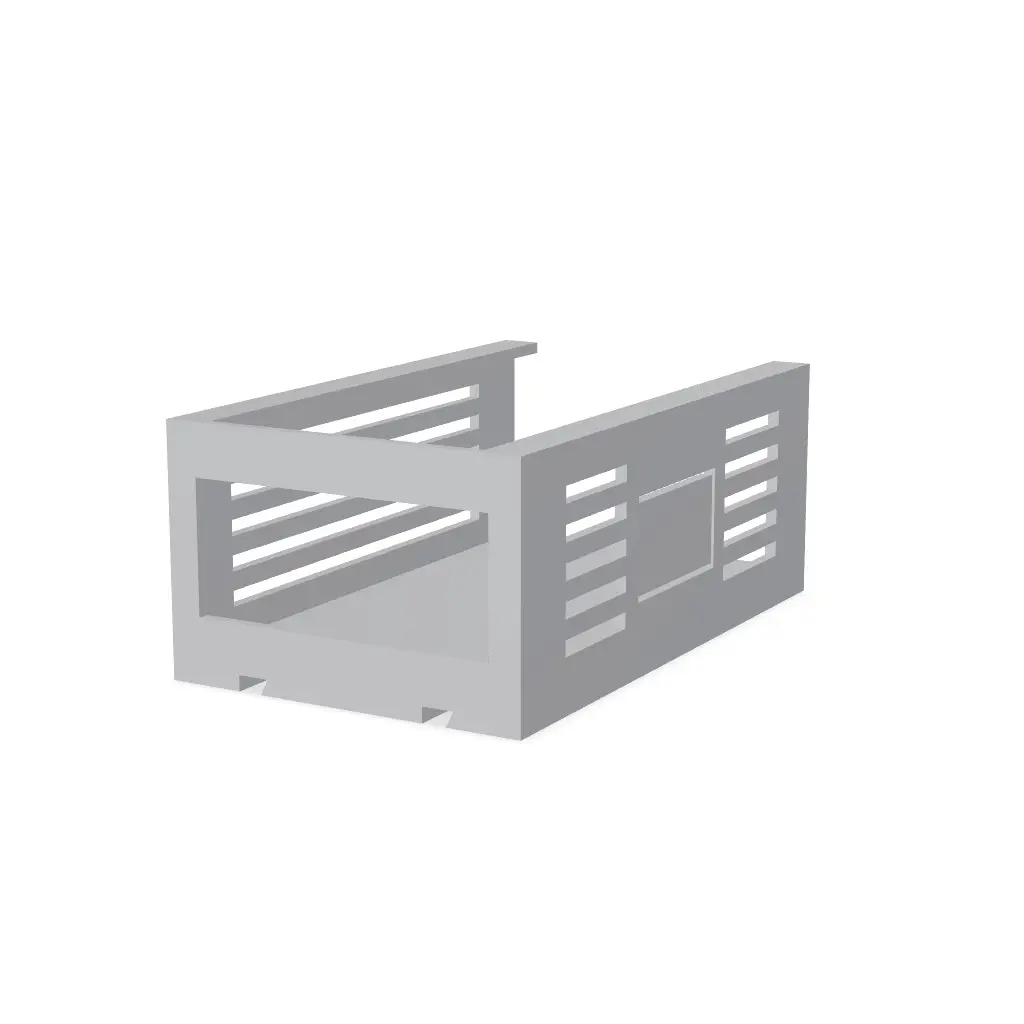

A pocket that holds the TP-Link Omada POE380S PoE++ injector (155 x 70 x 42 mm) upright on SKÅDIS. The injector drops in from the open top and sits on a floor frame that is open in the middle, so the leads on the bottom end come straight out. A spring tab keeps it snug and the logo faces out.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a andiprint.
Archivos (5)
- poe380s_pocket_PRINT.stl STL · 65 KB
- poe380s_hook_bar_PRINT_x2.stl STL · 84 KB
- POE380S_pocket_full_plate.3mf 3MF · 9 KB
- poe380s_skadis.scad SCAD
- lib.scad SCAD
- Categoría
- Herramientas
- Formatos
- STL, 3MF, SCAD
- Descargas
- 0
- Publicado
Sobre este modelo

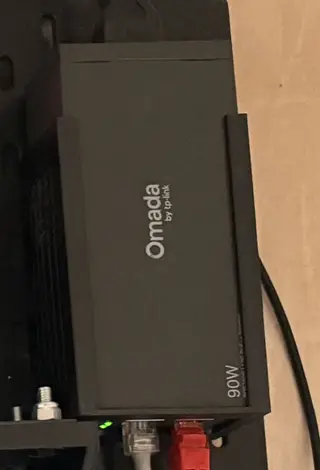

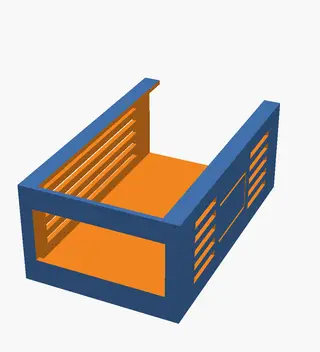

A pocket that holds the TP-Link Omada POE380S PoE++ injector (155 x 70 x 42 mm) upright on SKÅDIS. The injector drops in from the open top and sits on a floor frame that is open in the middle, so the leads on the bottom end come straight out. A spring tab keeps it snug and the logo faces out.

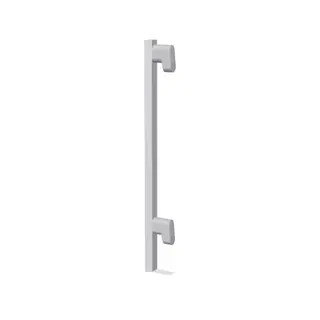

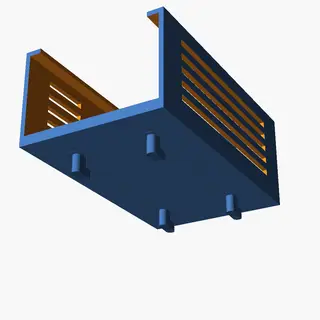

This was the first part of my rack and the test bed for the hook design, so it uses its own hook bars (included). Print the pocket upside down (open top on the bed): no supports, just one 70 mm bridge.
Print settings: PETG, 0.2 mm layers, 4 walls, 25% gyroid, no supports.
All 10 parts of my SKÅDIS network rack (hook bars, switch, PoE injector, mini PC, SSDs, smart home hubs, Zigbee dongle, wall spacers) are on my profile and in my "SKÅDIS network rack" collection. Editable OpenSCAD source for everything: https://github.com/PrimroseHA/skadis-network-mounts
Licence: Creative Commons BY-NC-SA 4.0 (free to print, remix and share for non-commercial use, with attribution).
