SKÅDIS clip for Sonoff ZBDongle-E Zigbee dongle
Stands a Sonoff ZBDongle-E (75 x 25.5 x 13.5 mm aluminium body) upright with the antenna up and the USB plug down through an open floor into a USB extension lead. That lets it sit 30 to 50 cm away from your mini PC and USB3 drives, because USB3 noise wrecks 2.4 GHz Zigbee. The body rests on two 4 mm
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a andiprint.
Archivos (4)
- zigbee_clip_PRINT.stl STL · 19 KB
- hook_bar_x1.stl STL · 84 KB
- zigbee_clip.scad SCAD
- skadis_hooks.scad SCAD
- Categoría
- Herramientas
- Formatos
- STL, SCAD
- Descargas
- 0
- Publicado
Sobre este modelo

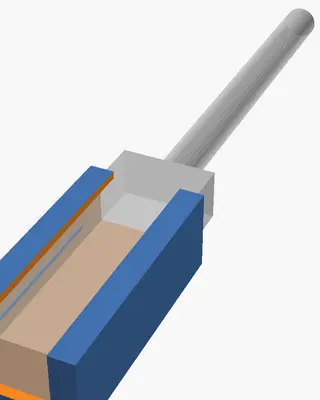

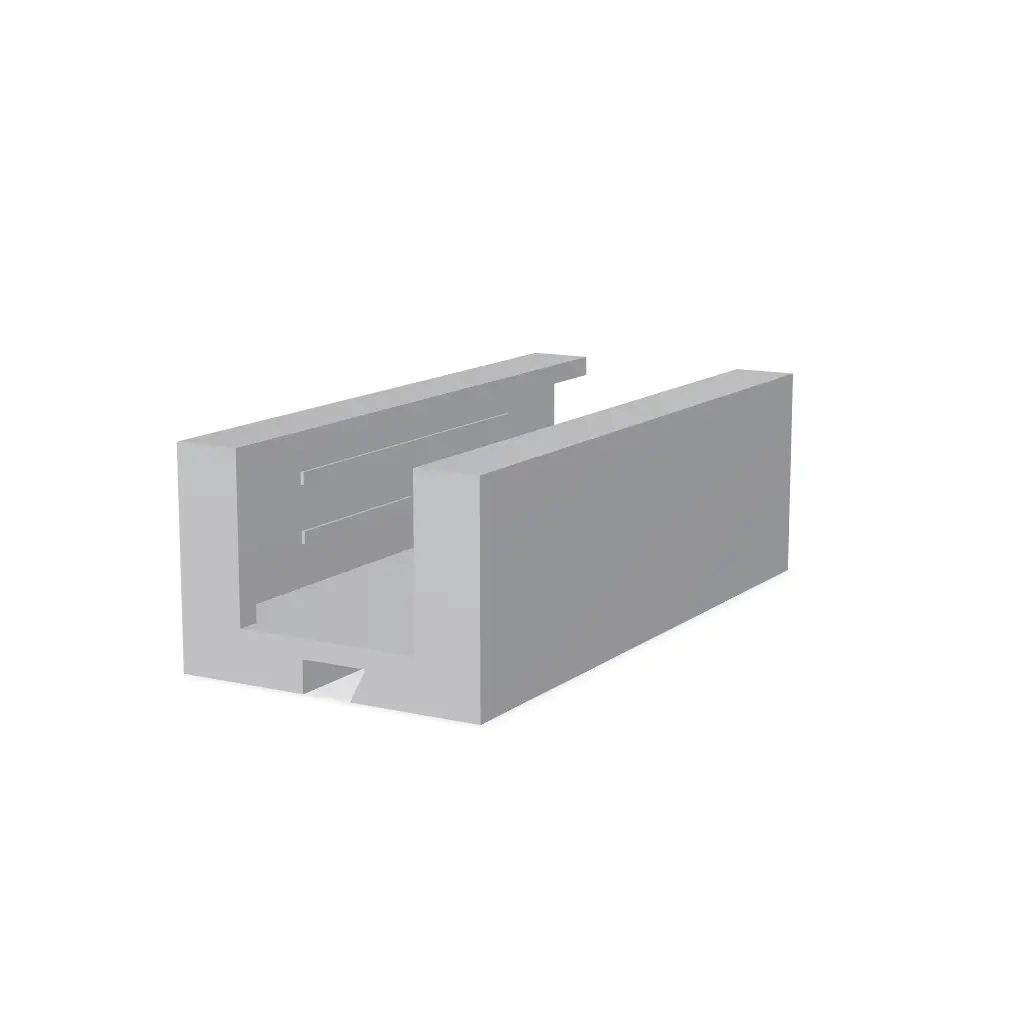

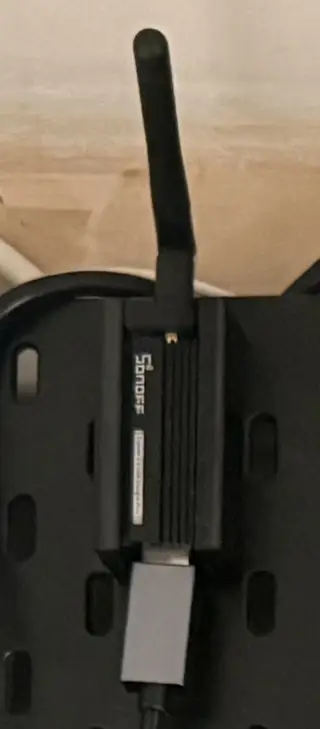

Stands a Sonoff ZBDongle-E (75 x 25.5 x 13.5 mm aluminium body) upright with the antenna up and the USB plug down through an open floor into a USB extension lead. That lets it sit 30 to 50 cm away from your mini PC and USB3 drives, because USB3 noise wrecks 2.4 GHz Zigbee. The body rests on two 4 mm ledges either side of the plug, crush ribs on the side walls hold it snug and front lips keep it in.

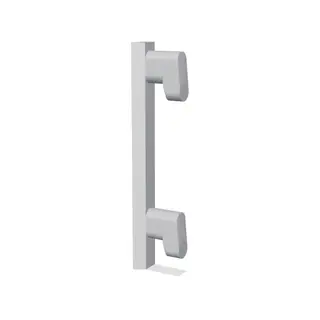

Hangs on ONE hook bar (included). Print upside down (open top on the bed), no supports.
Print settings: PETG, 0.2 mm layers, 4 walls, 25% gyroid, no supports.
All 10 parts of my SKÅDIS network rack (hook bars, switch, PoE injector, mini PC, SSDs, smart home hubs, Zigbee dongle, wall spacers) are on my profile and in my "SKÅDIS network rack" collection. Editable OpenSCAD source for everything: https://github.com/PrimroseHA/skadis-network-mounts
Licence: Creative Commons BY-NC-SA 4.0 (free to print, remix and share for non-commercial use, with attribution).
Descripción original del autor, publicada en Thangs.
