Sobre este modelo

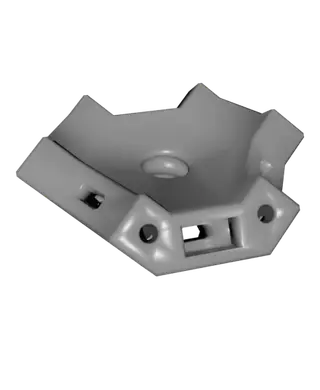

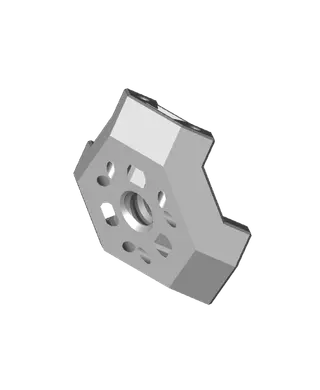

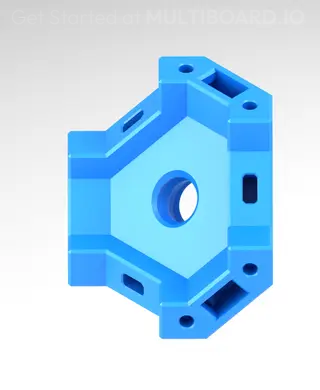

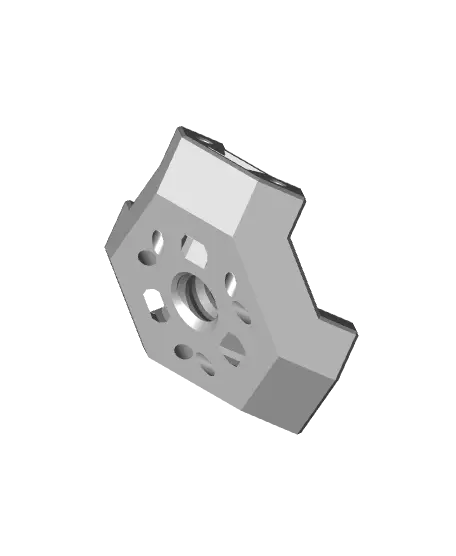

This is for making a Single Corner by connecting three Beams together. It connects using Dual Clips (https://link.Multiboard.io/dual-clips).
It also has holes for filament pieces to be inserted, which better holds the beams into place.
It also has holes to help you remove the Dual Clips using a small Allen key.
Printing Guidelines:
Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.
The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
---
This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts to create the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
