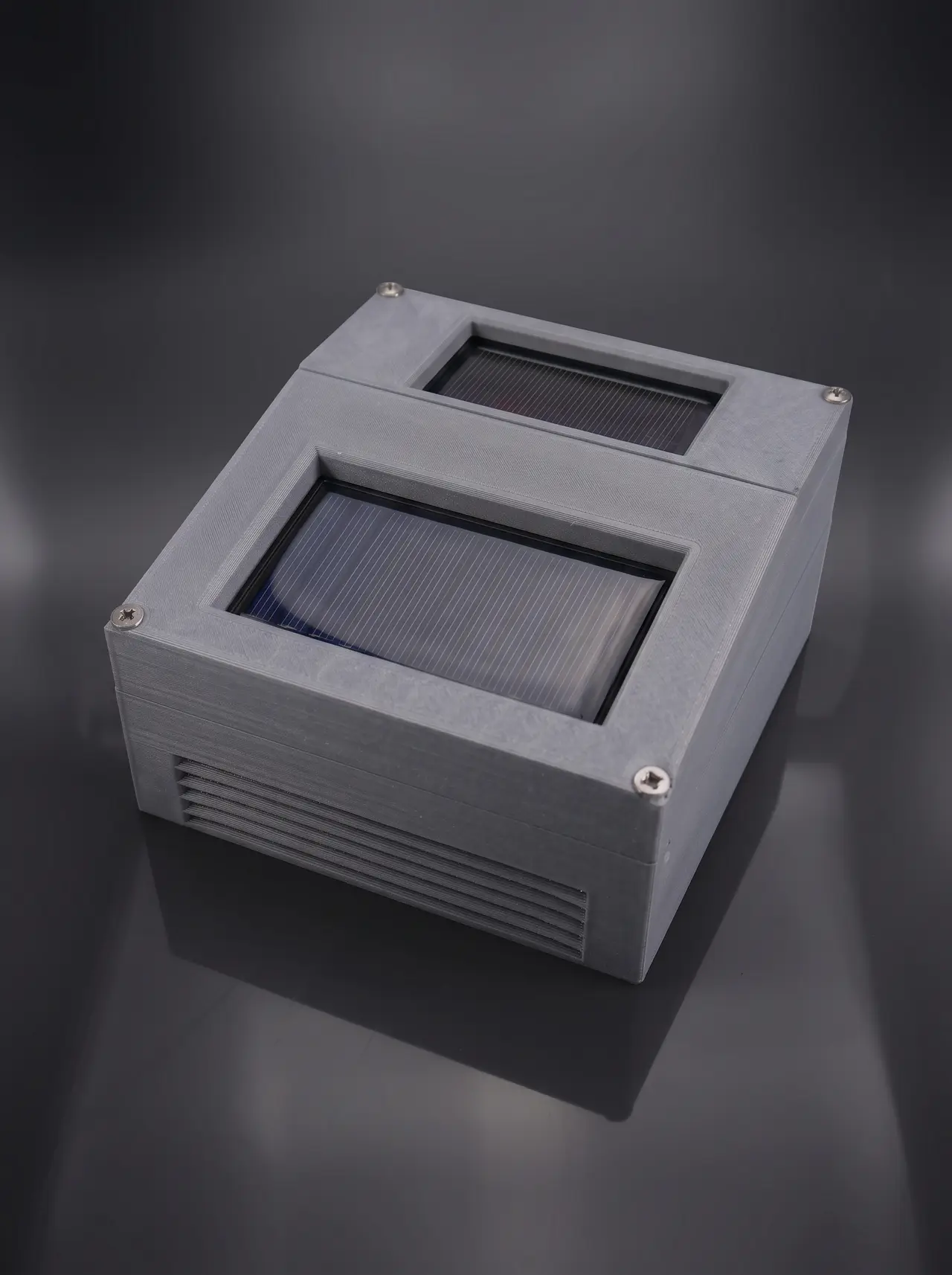

SILENCE! - Stealth Solar Anti-Bark LED Fence Light

Got a neighbor's dog that won't shut up, but don't want the drama of pointing an ugly plastic ultrasonic box over the fence? Problem solved.

SILENCE! is a functional, parametric designed, weather-resistant enclosure designed to look exactly like a modern, edge-lit solar fence light. In reality, it houses a solar-powered ultrasonic bark deterrent. The 45-degree louvers on the front conceal the transmitter from eye level while allowing high-frequency 20-25kHz sound waves to freely project into the target zone.

Because Thangs is about the geometry, I have included the raw STEP files for both the full straddle-mount assembly and the split LED-only housing. You can easily bring this back into your CAD software to remix it as a weatherproof shell for your own microcontrollers or edge computing nodes.

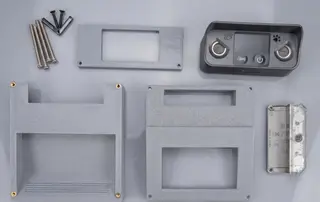

Hardware Required Ultrasonic Module: Solar Ultrasonic Bark Control (https://www.newegg.com/p/02W-01B7-00026?item=9SIAYKZM233825&srsltid=AU7gw4VQd8wNthz1UuROJnuCitmzGHF8DEtkEkN1fiwsTPIuGJAw2h_T)

LED Module: Solar Fence Lights Outdoor (https://www.amazon.com/dp/B0GGH7KYSW?lv=shuf&th=1&channelId=425&ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1&plpRedirect=mhFallback)

Inserts: (4) M4 Heat-Set Inserts (5.86mm OD)

Screws: (4) M4 x 50mm (for securing the lid)

Mounting: Standard angle brackets for fence mounting

Print Profile & Slicer Settings This geometry was designed specifically for PETG-CF to handle outdoor UV and thermal loads without warping.

⚠️ PRINTER HARDWARE WARNING: If you are printing this on a machine with stock hardware, you MUST upgrade to a Hardened Steel Nozzle and Hardened Extruder Gears. Abrasive carbon fiber will destroy stainless steel components.

Recommended PETG-CF Structural Settings:

Layer Height: 0.20mm Standard

Wall Loops: 4

Top/Bottom Shell Layers: 4

Sparse Infill: 20% Gyroid

Internal Solid Infill: Rectilinear

Supports: Tree (Auto), Tree Slim, On build plate only

Support Interface: Rectilinear pattern, 0.2mm Top Z-distance

Flushing: "Flush into objects' infill" and "Flush into support" must be strictly disabled to prevent structural weak points.

LINKS: Printables (https://www.printables.com/model/1876429-silence-stealth-ultrasonic-anti-bark-fence-light) MakerWorld (https://makerworld.com/en/models/3436654-silence-stealth-solar-anti-bark-led-fence-light#profileId-3918692) Portfolio (https://isaacnason.net/projects/)
