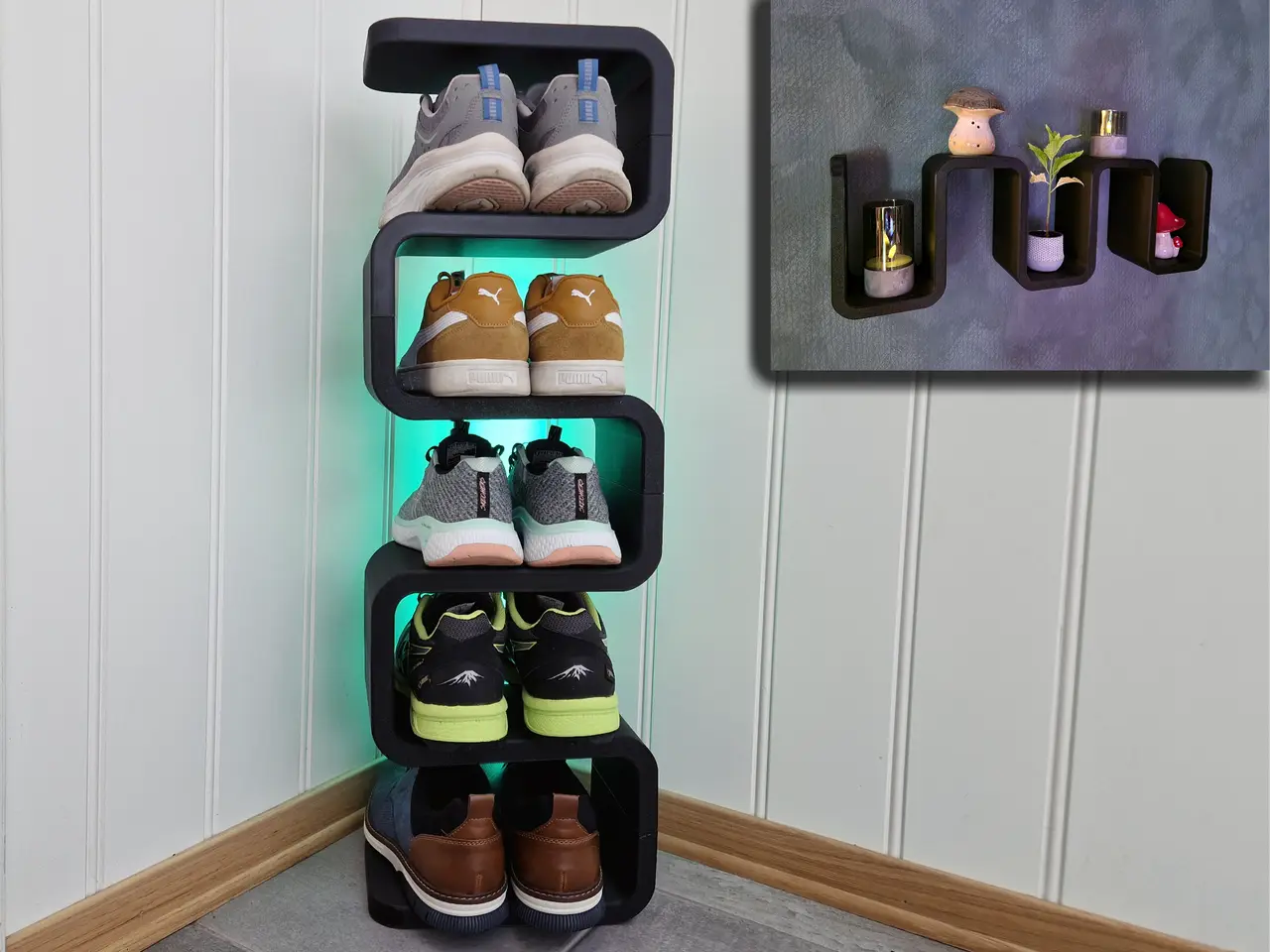

Shoe Rack / Wall Shelf

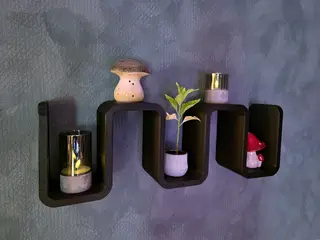

Compact and space saving shoe rack with a flowing design. When taking the pictures we found out that this also works perfect as a decorative wall shelf and possibly also other places, it turned out to be a very useful design. You can make it in whatever height / length you prefer as it only consist of 2 different parts which push together with pins.

- Build in any height

- Push together with included printable pins (glue not needed but can be added)

- Wide variety of uses

- Optional wall mount

Update As this shoe rack was a huge success i have made a whole modular shelf system that fit together with all the parts in this shoe rack. You can check it out here: Modular Shelf for Wall / Floor / Desk

If you are looking for something with LED light's, check out my Modular LED Shelf :-)

Printing

- 0.2 mm layer height

- 5% infill in shelf parts (if you are building it taller or are using it for “heavy” shoes i would recommend going to 8-15%)

- 15% infill in pins and wall mounts

- Print pins laying down

- Support for bottom bend of the end piece, pins and wall mount

- The pins are very tight, I recommend rotating both ends of the pins in the holes a bit before mounting, then it's easier to disassemble if you would like to make changes later.

- The wall mounts are threaded on the pins between two parts, mount it with the square with the screw hole facing down. Secure to the wall with a screws.
