Shimano 105/Ultegra STI Main Lever Support
por Marcelo Moreira Xavier en MyMiniFactory
T
MyMiniFactory entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Marcelo Moreira Xavier.
Archivos (1)
- shimanoultegra2.stl STL
- Categoría
- Jardín
- Formatos
- STL
- Descargas
- 903
- Publicado
Sobre este modelo
T
This a part to solve a frequent problem with Shimano 105 (R7000 series) and Ultegra (R8000 series). For some reason, after a few months in use, the shifter stops engaging to chance the front gear. The solution (if there is no warranty) is to change or customize the part named "Main Lever Support" (Y63X80010), adding about 3mm to it.

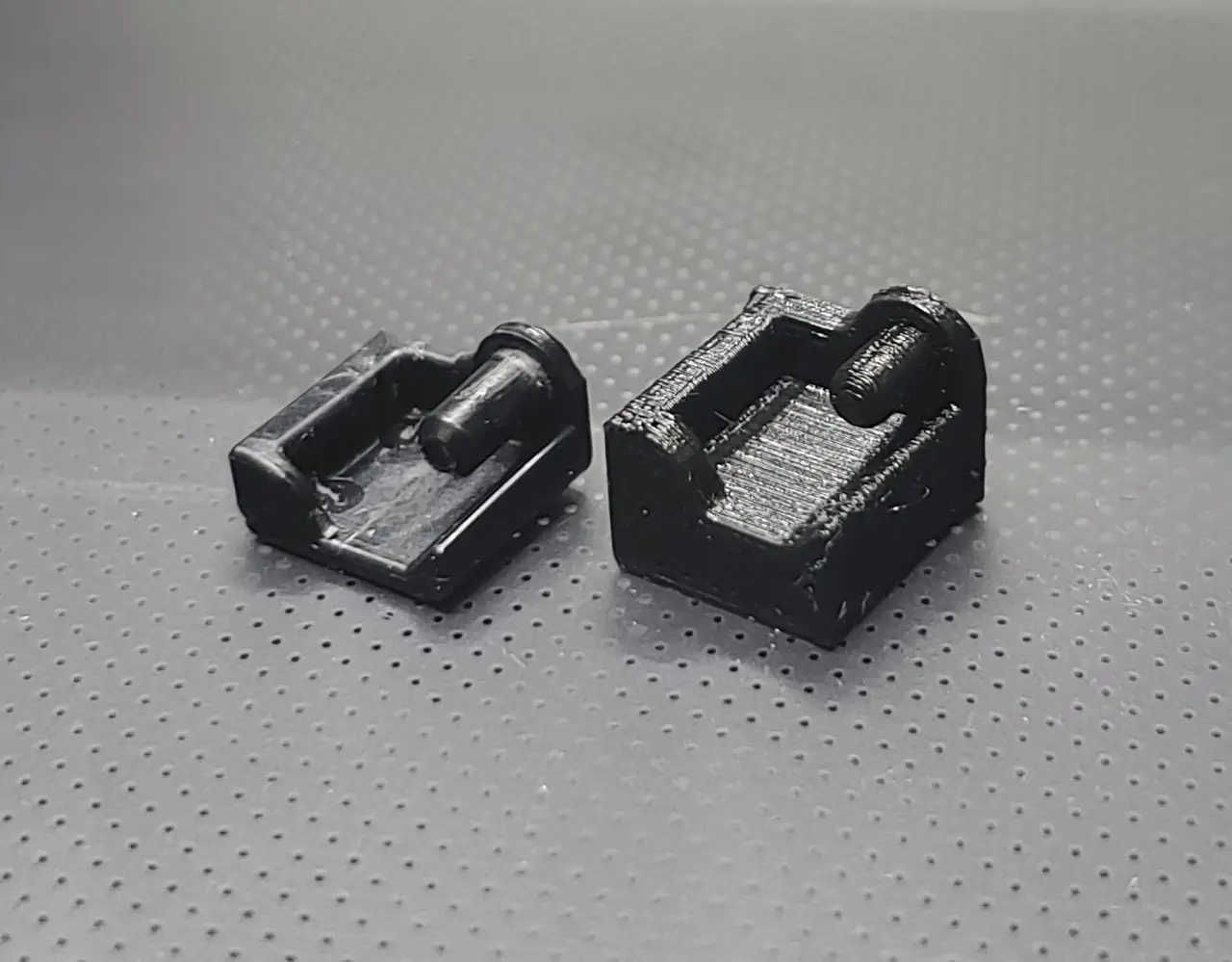

I designed a slight different replacement, but with the aditional 3mm in thickness. The diferences aim to make the part stronger on thin walls and easyer to install with a shorter pin. Between the two STL files the only difference is the pin lenght
A special thanks to Youtube user 3dlx for discovering the solution. You can find his video is bellow.
https://www.youtube.com/watch?v=-mCwvDtRw8U
Descripción original del autor, publicada en MyMiniFactory.
