ARC Raiders Shield Recharger - Assembly Guide
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Mateo Z.
Archivos (18)
- SideplateScrew.stl STL · 54 KB
- Symbol1.stl STL · 1 KB
- Symbol2.stl STL · 52 KB
- Tip.stl STL · 3,9 MB
- Top Cover (1).stl STL · 166 KB
- Top Cover.stl STL · 2,1 MB
- Topspule.stl STL · 942 KB
- Trigger Complete.stl STL · 504 KB
- Trigger Screw.stl STL · 87 KB
- All Parts.3mf 3MF · 5,5 MB
- Connector.stl STL · 507 KB

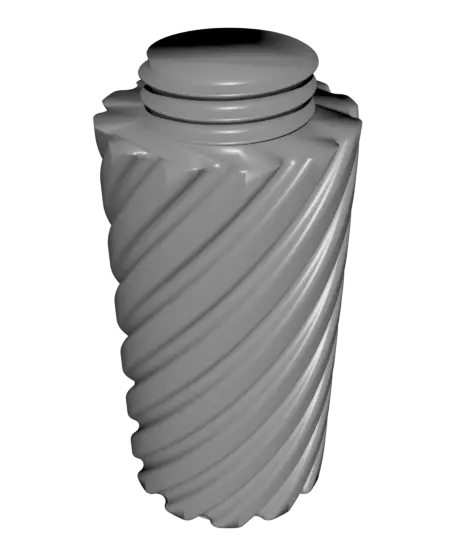

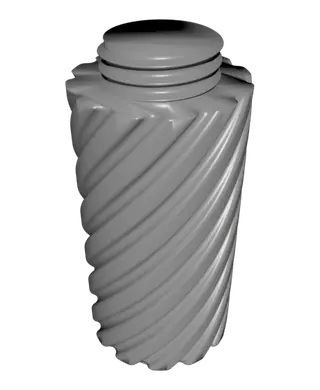

- Kupferspule.stl STL · 6,3 MB
- LED RIng.stl STL · 106 KB
- Loading.stl STL · 27 KB
- Main Body.stl STL · 3,1 MB
- Mittelspule.stl STL · 1,8 MB
- Sideplate Screw Top.stl STL · 404 KB
- Sideplate.stl STL · 67 KB
- Categoría
- Varios
- Formatos
- STL, 3MF
- Descargas
- 36
- Publicado
Sobre este modelo
ARC Raiders Shield Recharger - Assembly Guide Listen up, Raider—getting vaporized by ARC drones because your shields are down is embarrassing, so print this recharger and stay in the fight!
Instructions Print all parts using your preferred filament settings or from the prepared 3mf file. Every Part needs to be printed once. I would suggest to use a brim for better print adhesion and support enabled.

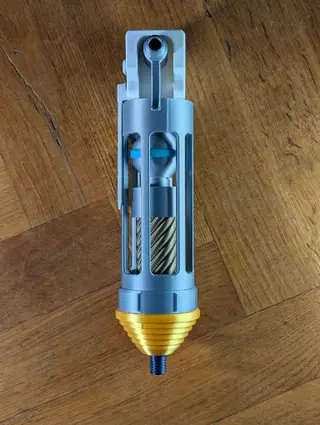

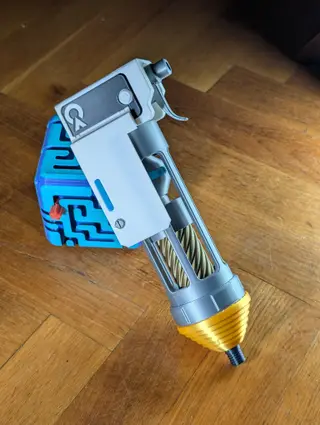

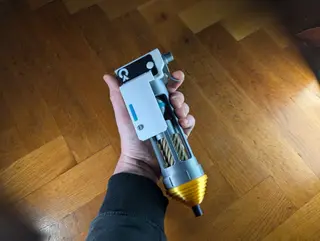

Building the Recharger: Take the Connector and screw it onto the Tip. Assemble the power core: Screw together the Copper Coil, the Middle Coil, and the Upper Coil. Screw this completed coil assembly into the Tip. Screw the Main Body onto the Connector. Prepare the electronics housing: Press-fit the Sideplate onto the Top Cover. Screw the assembled Top Cover onto the Main Body. Insert the Trigger Screw into the Trigger, then press-fit it into the hole on the Top Cover. Tip: You can use a screwdriver or a pen to push it securely into place. Have a look into the pictures to see how it is build!
You are finished. Enjoy your recharged shields!
