Shelly surface mounted switch box
por PaYFrog_Customs en Printables
A small surface mounted box for ur shelly and switch, including a clamp for in and outgoing cables.
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a PaYFrog_Customs.
- Categoría
- Hogar
- Formatos
- STL
- Descargas
- 3
- Publicado
Sobre este modelo

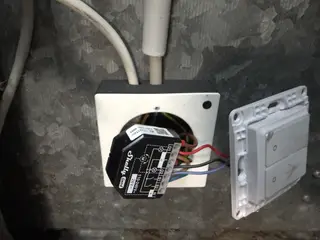

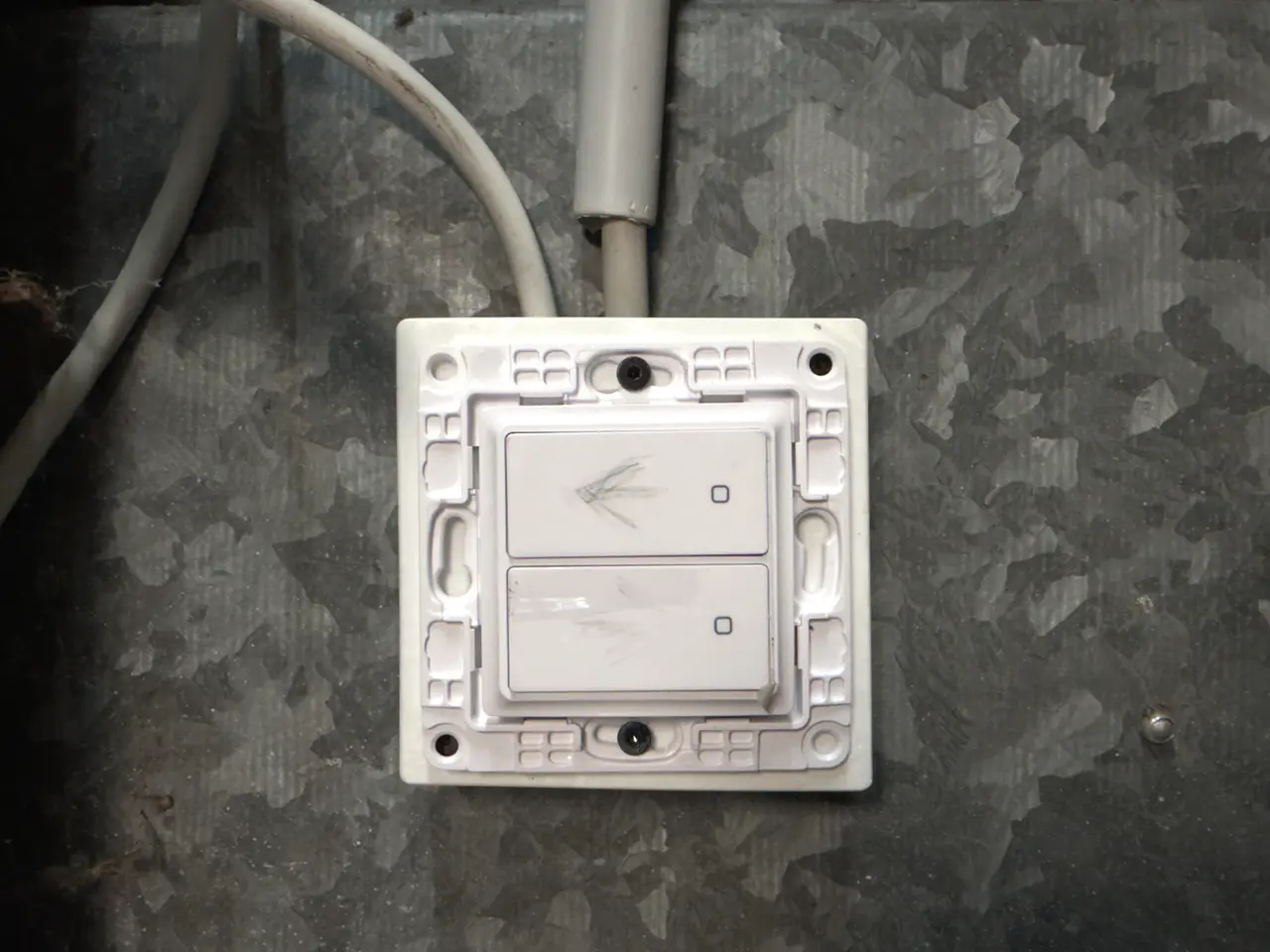

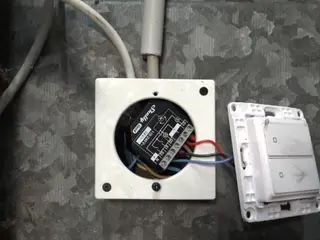

This is just a small surface mount box. I made it since I needed a way to mount my shelly2pm and the shelly switch for a motor driven shutter.
The cables can be clamped down to get some stress releave and secure them.
Electrical work is dangerous, please do not work on it if u do not have the needed knowledge and equipment!
Needed:
3x M3 Heatinsert 5x M3 10mm Countersunk For fixing the switch u can use a small screaw or an M3. I made the hole a little bit smaller for variing oprions.
Descripción original del autor, publicada en Printables.
