SHELFIE | DIY parametric shelf and storage designer

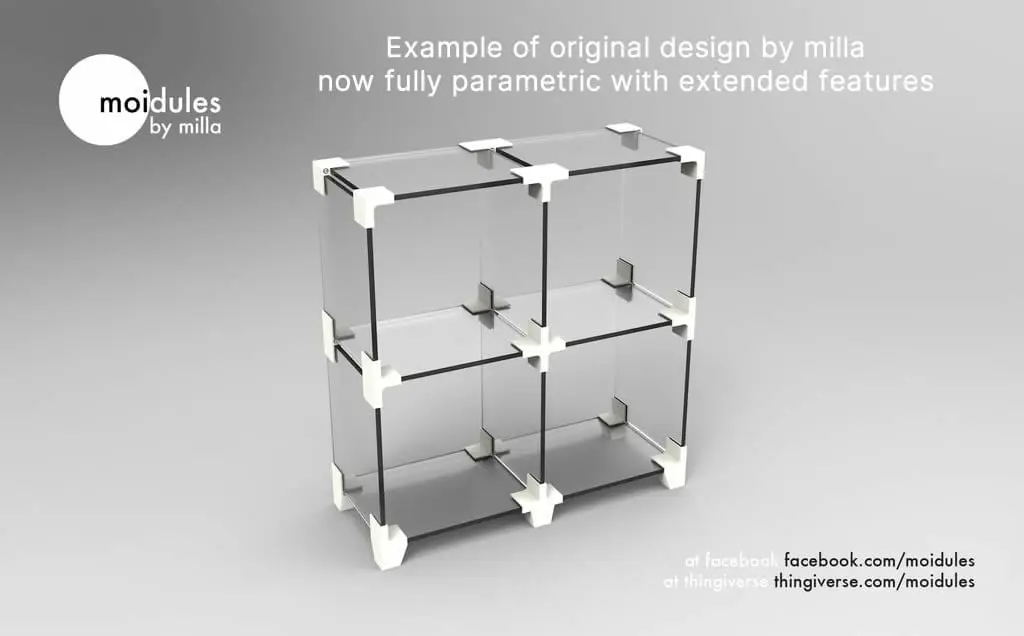

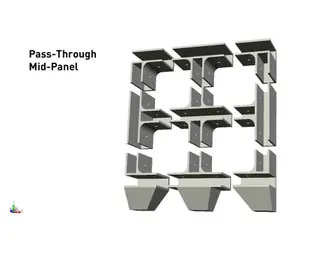

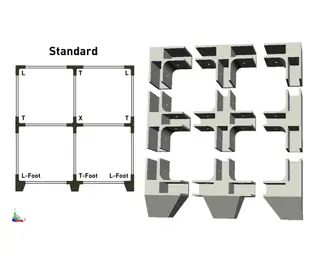

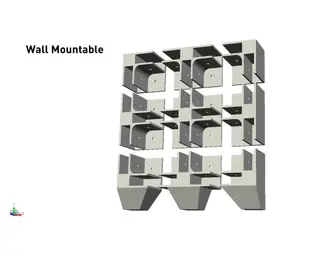

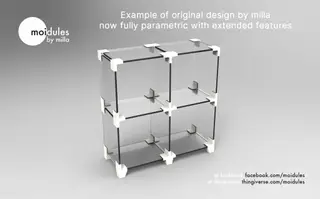

Shelfie allows you to design your own storage and shelf systems using a fully parametric design. Simply generate the required Shelfie connectors based on your preferred storage layout using the Customizer button or OpenSCAD directly. Samples for 3mm panels are included. It is based on the original concept idea from Milla Niskakoski http://www.thingiverse.com/thing:681835 I was impressed with the simplicity and practicality of Milla's initial design, but ran into some limitations when trying to construct my own shelves. The key improvements are: - Customisable thicknesses. I wanted to use the scrap wood I had lying around rather than purchase new material. - Mixed thicknesses. I wanted to use glass shelves with wood sides, but it wasn't possible unless they were the same thickness. - Wall mounting bracket option. Particularly for tall shelves, this is an important safety feature. Wall brackets also support cross-bracing by connecting a tensioned line between opposite corners or adding a back panel. - Ability to alter the size of the bracket or the wall thickness to increase strength. - Ability to attach a shelf or divider mid-span or mid-panel. Allows use of longer shelves or supports for extra strength and adding a shelf or divider in-between. - Allow panels to butt up against each other to eliminate gaps.

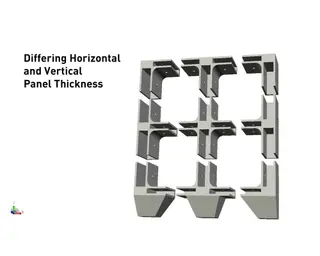

Shelfie provides full control over all parameters so you can mix materials of any thickness, add wall mounts, alter the bracket size, mid mount shelves, change the screw hole size etc. UPDATED: v4 Added countersinking to holes and set limit on wall mount corner radius. UPDATED: v5 Improved handling of smaller brackets. PS: Please support my designs by downloading and liking here - all the clicks help :) https://makerworld.com/en/models/58195#profileId-60738
