A bracket for mounting a shelf onto the wall.
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a klaxalk.
Archivos (8)
- shelf_bracket_180mm_asymmetrical.stl STL · 98 KB
- shelf_bracket_210mm_asymmetrical.stl STL · 93 KB
- shelf_bracket_180mm_symmetrical.stl STL · 98 KB
- shelf_bracket_210mm_symmetrical.stl STL · 93 KB
- plug_tolerance_0.3mm.stl STL · 618 KB
- plug_tolerance_0.2mm.stl STL · 508 KB
- plug_tolerance_0.1mm.stl STL · 443 KB
- shelf_bracket.f3d F3D · 211 KB
- Categoría
- Hogar
- Formatos
- STL, F3D
- Descargas
- 1,704
- Publicado
Sobre este modelo

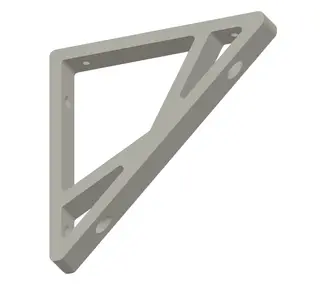

A stylish shelf bracket for mounting a shelf onto a wall. I recommend printing with PETG to prevent sagging. I printed it using Prusament White PETG with: - 5 perimeters (0.4 mm nozzle) - 10% gyroid infill.
No supports are needed. The shelf is very rigid; I bet it won't go anywhere soon. The model is parametric, so feel free to change the basic parameters or modify the holes according to your liking and available equipment. The model includes large 12 mm holes, which allow easy access to the screws. I will probably include models for plugs to hide these. I provide the following .stl files: - 180 mm to fit on Prusa Mini - 210 mm to fit on Prusa i3. - Both versions are provided in two variants: with the top holes being symmetrically and asymmetrically spaced. The asymmetrical variant is useful when you want to tighten the wall screws using a power tool. - Plugs for the engineering holes with 0.3, 0.2 and 0.1 mm tolerance. For me, the 0.2 mm worked the best.

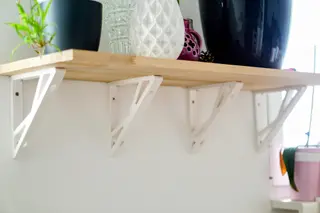

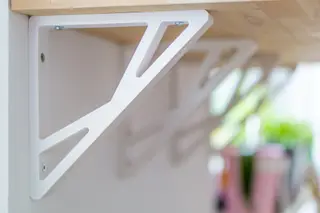

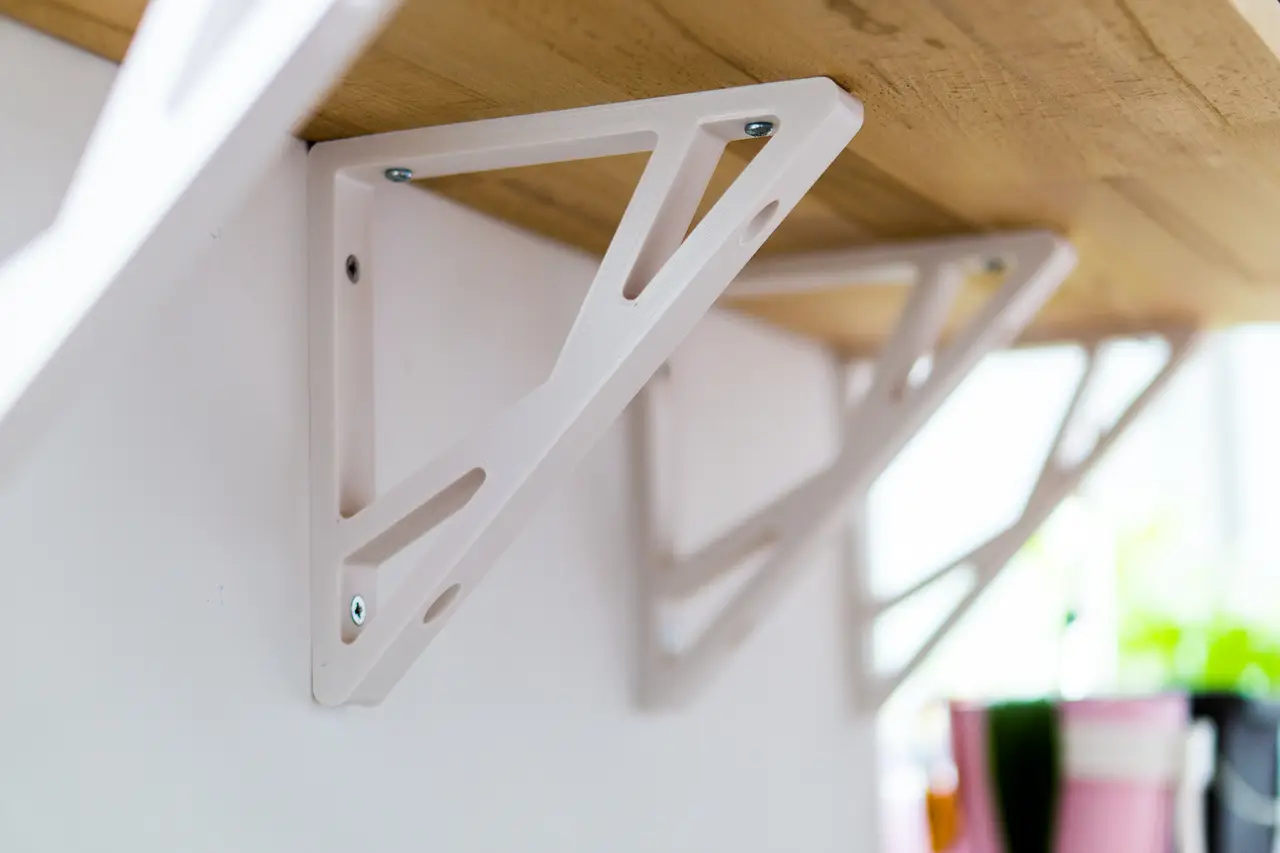

The prints in my photos were made using Prusa Mini+.
