Shamrock Oak Lab Badge Holder — CR80 ID Holder with Spare-Card Store
por ShamrockOakLab en Printables
A rigid one-piece CR80 badge holder, tape-measured and fit-gauge tested. Side-entry badge, spare-card store in back.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a ShamrockOakLab.
Archivos (3)
- Categoría
- Moda y joyería
- Formatos
- STL, ZIP
- Descargas
- 0
- Publicado
Sobre este modelo
This holder exists because my USPS badge was delaminating in a cracked red holder, so we built a better one — seventeen versions of fit tests, tape measurements, and one very patient dog later, this is the one that earned its place on my lanyard.

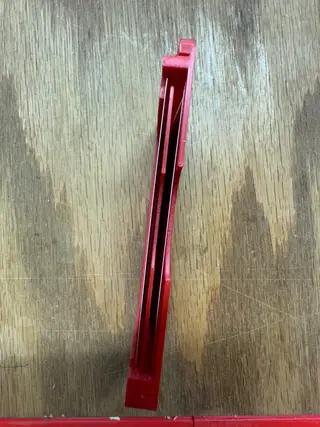

Print it standing on its left edge (the on-edge STL is included), 10 mm brim, no supports, ironing on. About 24 g of PLA and an hour of print time.
Honest notes: - The front groove is ~1.2 mm (fit-gauge slot #1). Standard CR80 badges slide right; thicker rigid badges will be a tight slide. - PLA is fine for everyday carry. If your holder lives in a hot truck cab, print it in PETG instead.
Print settings: PLA · 0.2 mm layers · 3 walls · 15% infill · ironing ON · 10 mm brim · no supports · print on edge (on-edge STL included)
