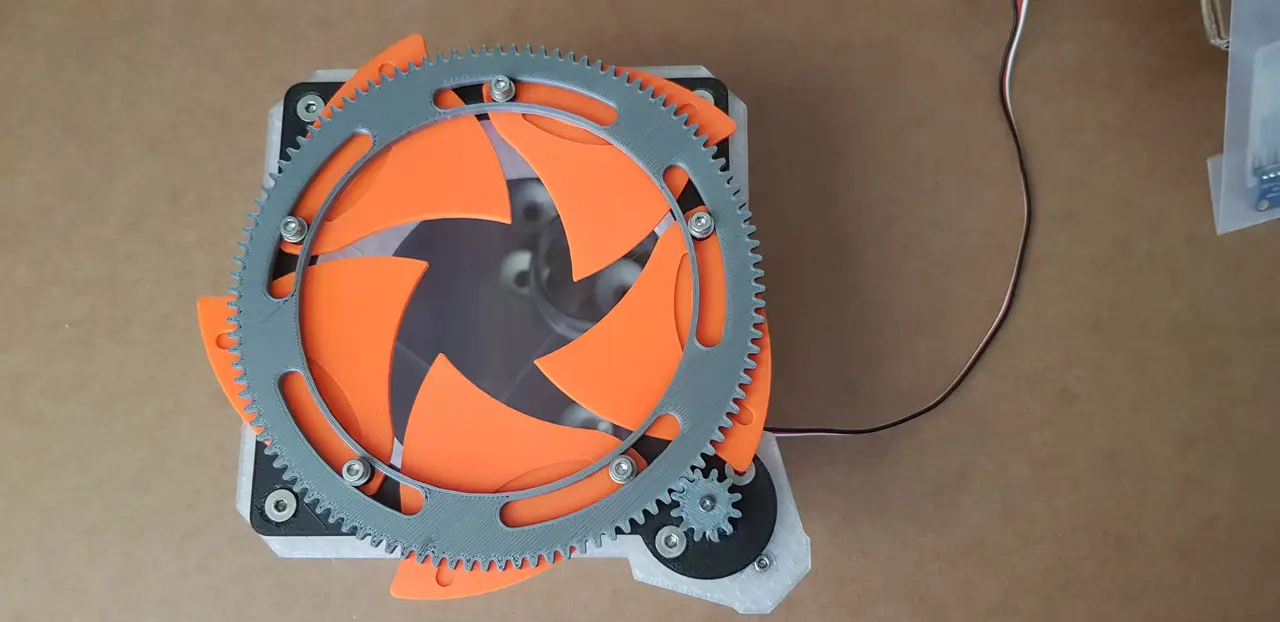

Servo automated iris / aperture for air flow controll
por AcE Krystal en Printables
I finished the project and will upload all the files and code as is.
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a AcE Krystal.
Archivos (9)
- door_blade_final.stl STL · 26 KB
- baseplate-aperature.stl STL · 179 KB
- spur-gear-12th-125mo-145at.stl STL · 125 KB
- underside-tube.stl STL · 603 KB
- spur-gear-107th-125mo-145at.stl STL · 914 KB
- topside-tube.stl STL · 276 KB
- spur-gear-12-teeth.step STEP · 931 KB
- spur-gear-107-teeth.step STEP · 12,6 MB
- baseplate.step STEP · 1,9 MB
- Categoría
- Para tu impresora
- Formatos
- STL, STEP
- Descargas (todas las plataformas)
- 3,471
- Publicado
También en
Sobre este modelo
I finished the project and will upload all the files and code as is. Servo Test (with end stop current detection) :

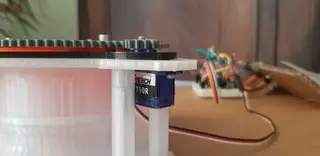

Finished Project : https://www.youtube.com/watch?v=DbXVjOoNJw4 Materials needed : - 5 m3 x 5mm - Servo FT90R (continuous rotation version of a FT,ST,SG or FG90)

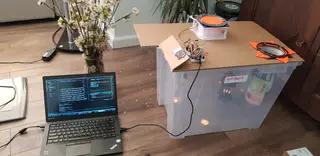

This is for a learning/hobby building project to do precise temperature control in my 3D printed enclosure, while also using the (waste) heat to dry filament storage above. The setup I'm building uses just cheap continues rotating servo's and does end stop recognition by sensing changing current draw if servo is stalling. More details, parts and script for the (IKEA LACK) 3D printing enclosure can be found here : https://www.prusaprinters.org/prints/5141-ambient-control-pcb-brain-box. Remix from "120mm Fan Aperture Door" by "Inertpyro", source : https://www.thingiverse.com/thing:529661 Uploaded tunnel parts for the original aperture (without servo) here : https://www.thingiverse.com/thing:3747061
