Self-leveling cup holder for TFK stroller
por phi.gl en Printables

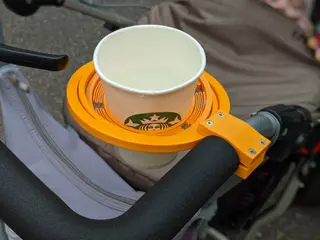

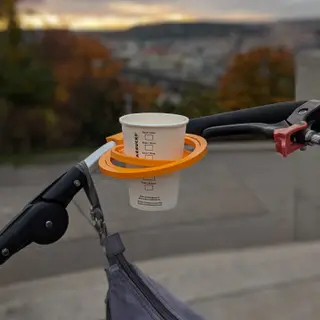

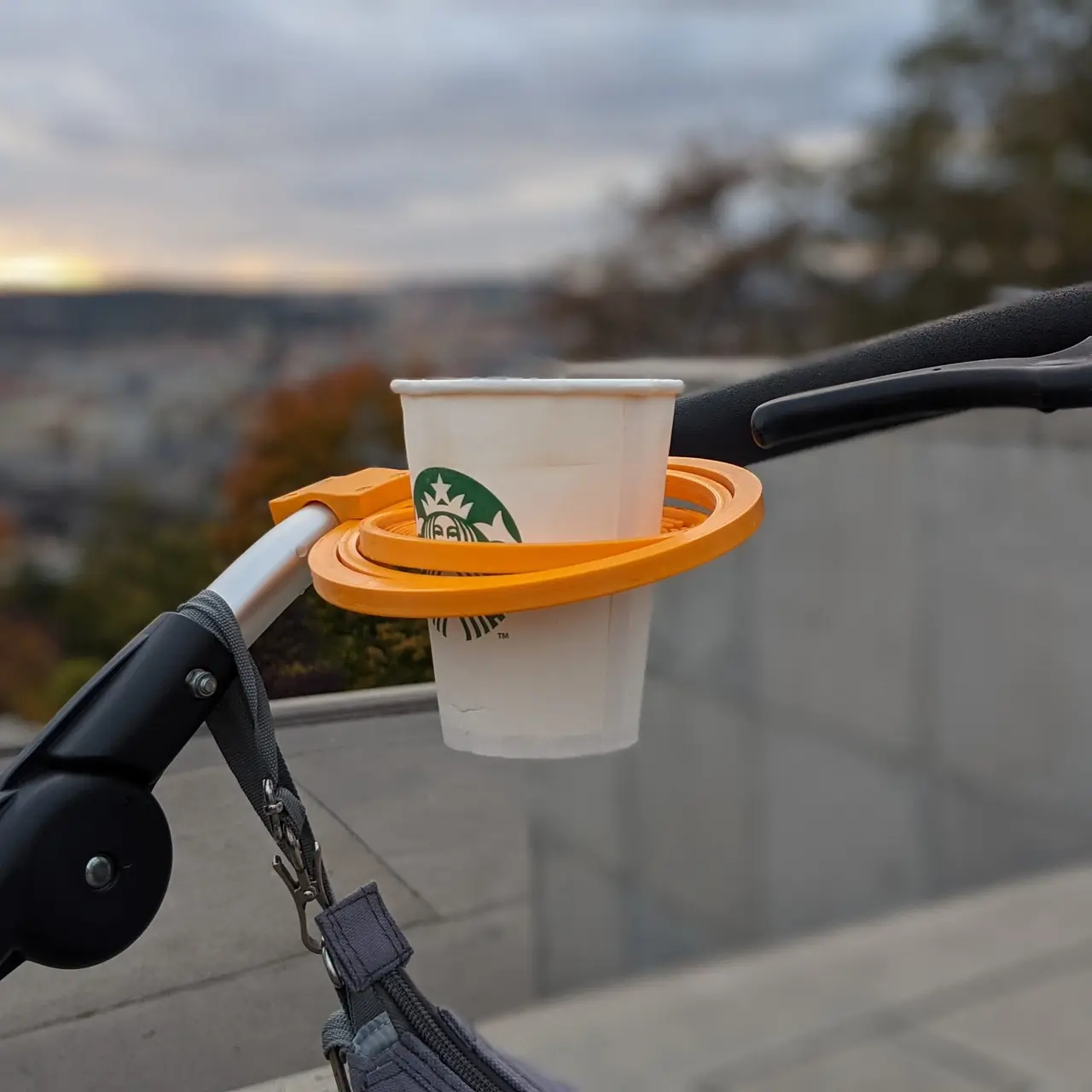

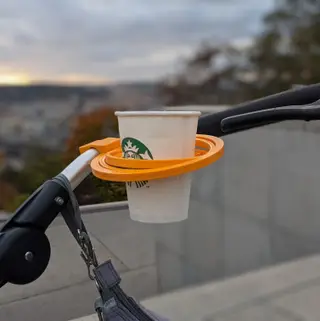

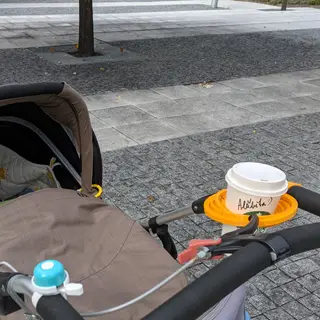

Print-in-place gyroscopic balance system and anti-vibration springs will protect your cofee during walks with your baby.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a phi.gl.
Archivos (4)
- Categoría
- Jardín
- Formatos
- 3MF, STL, GCODE
- Descargas
- 3,371
- Publicado
Sobre este modelo

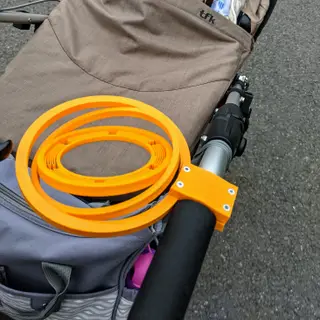

Designed for TFK Joggster Adventure. The holder prevents the cup from tilting in all directions and also uses printed “springs” to compensate for movements in the vertical direction.
Dimensions Inner diameter of the holder is 75 mm. The diameter of the handle should be around 22 mm. The holder must be attached to the handle with four screws M3x25mm.
Printing I recommend using PETG, because it provides good flexibility for the springs and seems to be sufficiently durable. No supports needed.
Descripción original del autor, publicada en Printables.
