seatpost mount bike storage tool box
por YamadaTaro en Printables

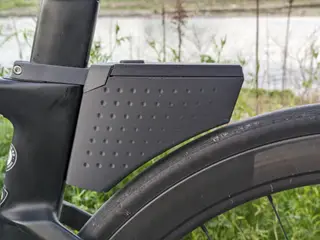

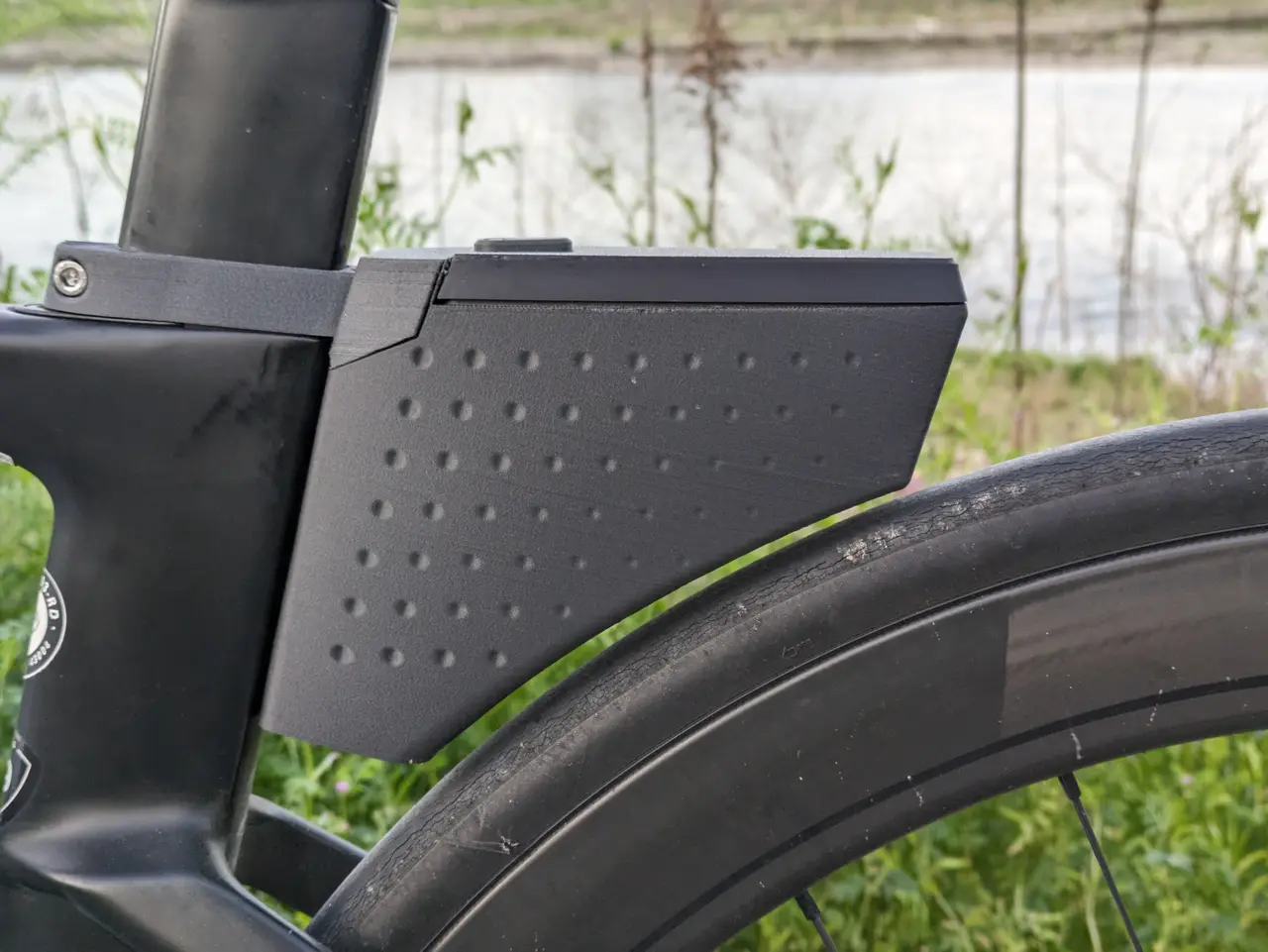

seatpost mount (aero) bike storage box for tools,repair kits. GoPRO style mount(M5 hex socket bolt)
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a YamadaTaro.
Archivos (21)
- venge seatpost gopro mount.stl STL · 282 KB
- cable tie_gopro mount.f3d F3D · 194 KB
- cable tie_gopro mount.stl STL · 142 KB
- post_mount_derosa_SK_v1_insert.f3d F3D · 891 KB
- post_mount_venge_v2.f3d F3D · 595 KB
- gopro_mount_27.2.stl STL · 632 KB
- gopro_mount_30.9.stl STL · 676 KB
- gopro_mount_31.8.stl STL · 674 KB
- gopro_mount_27.2.f3d F3D · 317 KB
- post_clamp_Trek Domane Gen 4_Not tested.stl STL · 534 KB
- Allez Sprint_Not tested.stl STL · 1,1 MB
- sl8_Not tested.stl STL · 1011 KB
- post_clamp_SL8_Not tested.f3d F3D · 474 KB
- post_clamp_DARE TSRF_from-AndreasNoer_Not tested.stl STL · 1,1 MB
- cervelo_S5.step STEP · 272 KB
- roubaix SL8.step STEP · 251 KB
- body_v2.1_t1.6.stl STL · 3,5 MB
- lid_v2.1.stl STL · 476 KB
- latch_A.stl STL · 17 KB
- latch_B.stl STL · 17 KB
- bike storage.f3d F3D · 6,8 MB
- Categoría
- Jardín
- Formatos
- STL, F3D, STEP
- Descargas
- 2,163
- Publicado
Sobre este modelo
Self remix update 2025/04/24 https://www.printables.com/model/1274183-seatpost-mount-bike-storage-tool-box-easy-edit
Here is Version 3.

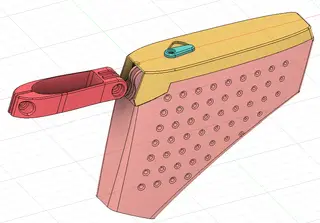

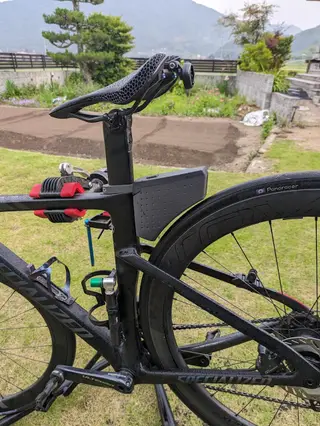

Designed for my bike,Specialized Venge. Gopro style mount,available to use almost all Aero road bike,if you design mount for your bike.
V2:Bolt cover lost while riding. Lid and cover became one piece.
V2.1:Main body shell thickness 1.2mm →1.6mm Main body bottom angle changed for stable print, and for reduces the possibility of layer separation during use.
Lid ,No-support,but need to cut off the hole support. Recommend one wall-loop for better bridge.
Printer:CR-10V3,Voron2.4 0.4mm nozzle Main body:eSUN ePA-CF 0.2mm ,good layer adhesion,get soft after absorb moisture is good. Lid:Test print with Polymaker ASA / Now working with Qidi PA12-CF. Gopro mount:I printed with Qidi PA12-CF ,it is lightweight and durable.

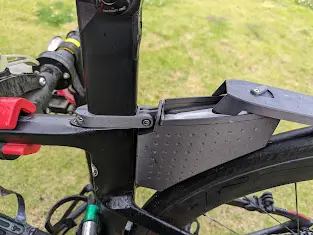

M3x8~10mm hex socket bolt & nut for Lid latch seatpost gopro mount:1x M5x8~10mm,1x M5x18~20mm hex socket bolt ,M5 nut
Add .f3d file of de rosa sk seatpost gopro mount.(for my friend) It's not perfect, but works.
1x spare tube,1.5~5mm Hex keys,CO2 inflator,chain tools,and more.
2025/01/06:Added gopro mount clamp for round seat posts.(Just CADed,not test and printed)
How to make aero-bike seat post gopro mount. I took a picture of the seat post with calipers from bottom. From this photo, the front/rear length of this seat post can be read as 52mm. I imported this photo into FUSION as a canvas. I drew a spline along the contour to create a sketch for the extrusion.
- venge
- derosa_SK
- Trek Domane Gen 4
- Allez Sprint
- Tarmac SL8
- DARE TSRF
- cervelo_S5
- roubaix SL8
