SCX 10.3 Pro-Line Back-Half Cage Hinge Pivot Bracket/Adapter

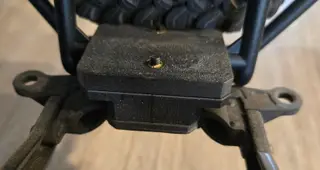

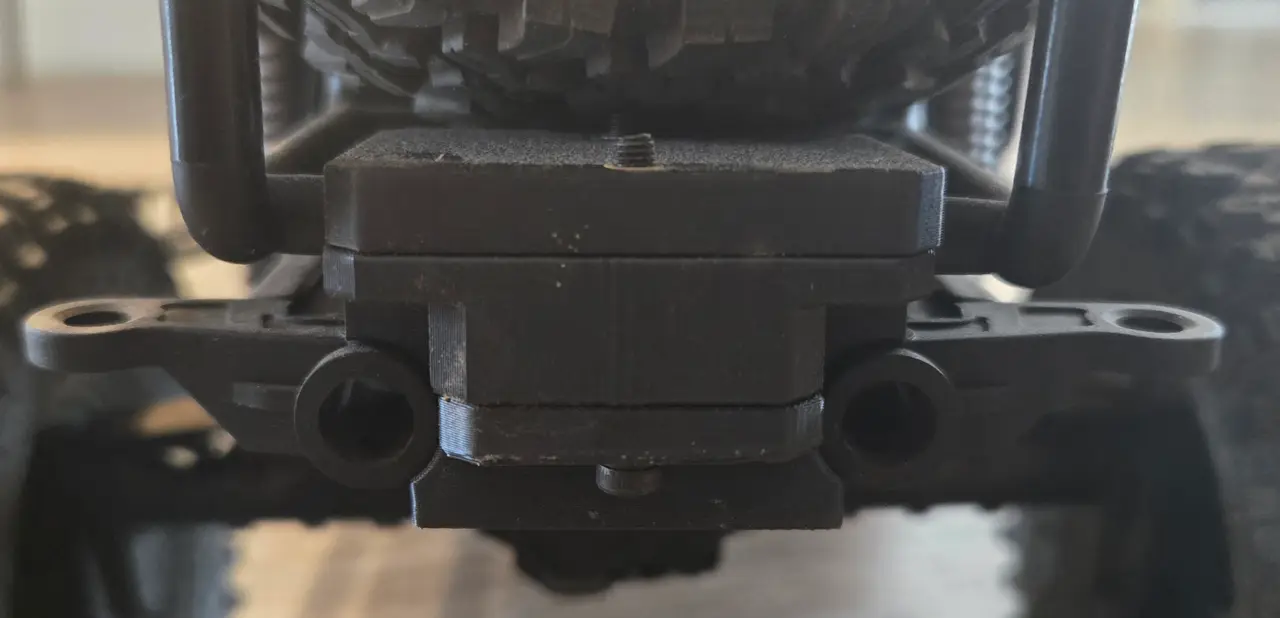

Mount your Back-Half cage to your 10 iii Basecamp. The bottom and middle brackets grasp the stock bumper mount of an Axial SCX 10.3 Basecamp. The top and middle brackets grasp the Pro-Line Back-Half cage such that the cage can pivot using the bracket as a sort of hinge. I fastened all three pieces together using 2xM3 heat-set inserts and 2xM3x25mm screws. The top bracket holes are larger to facilitate pushing in the heat-set inserts. I printed this in ASA for the UV resistance. Included is a .step file if you want to adjust it. This was my first foray into Autodesk fusion so it contains a lot of steps but I don't intend to re-create and simplify it at the moment. I've used this in conjunction with a custom bracket to connect the Pro-Line Back-Half cage to the Cliffhanger cab-only body such that the entire body can pivot at the rear bracket like a hinge. If there's interest in that model, I can upload that as well.
