Screwdriver Bit Organizer

Screwdriver Bit Organizer It is a magnetic Bit Organizer for multibit screwdriver

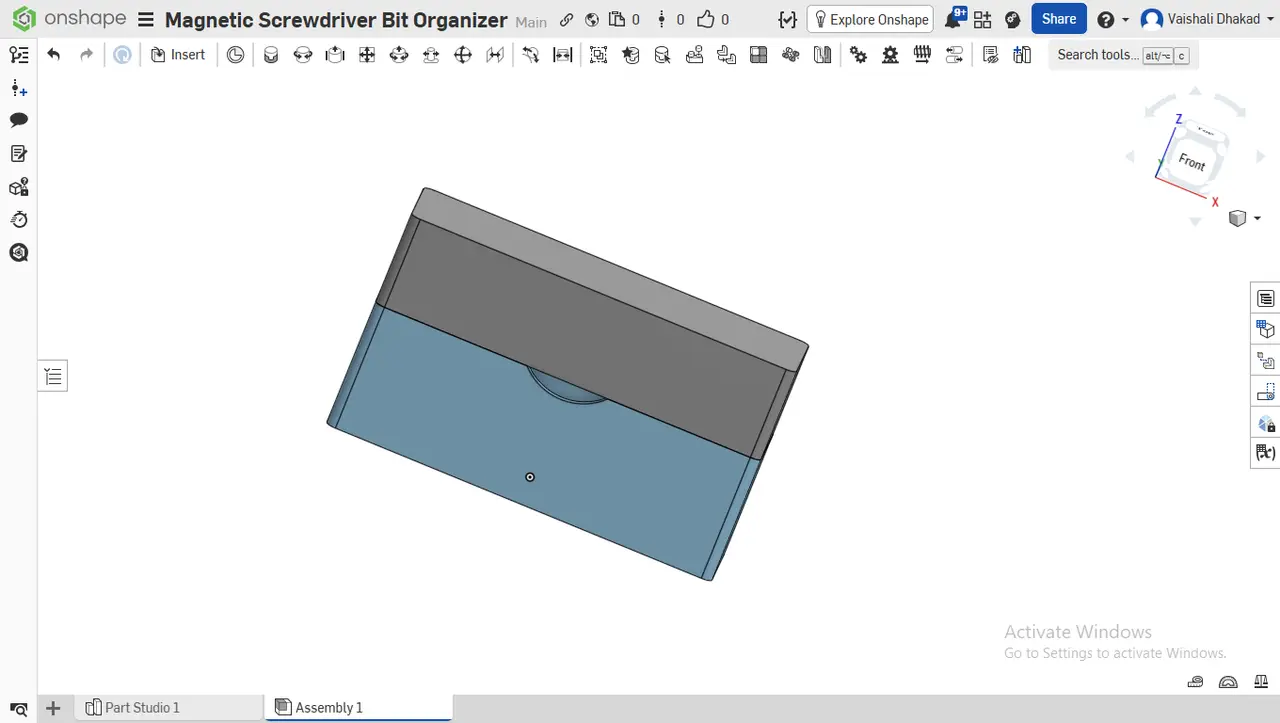

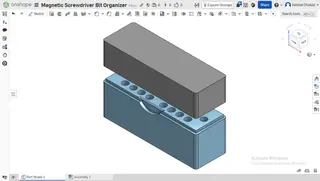

1. Model Parts And Dimensions There are two parts in the model Bottom magnetic part - It is 28.1mm high and bottom area is 81x27mm and it has 24 - 23mm depth and 5mm diameter width holes to keep screwdriver bits also in the bottom of this part there are 24 cavities of 4.1mm(diameter) and 1.6mm height to put magnets. Near the top surface there are 5(middle) and 4 (corners) cavities under 1mm depth to put magnets to keep the upper part during assembly of model Upper Part - it is similar to the bottom part but it has only 5(middle) and 4(corners) cavities for magnets with opposite poll to close the bit organizer box and the depth of the holes is 12mm to cover the upper part of the bits

2. Print and Assembly Guide The model is printable in two different parts. During printing we need to put 24 magnets (in the bottom of bottom part), 5 magnets (near upper surface of bottom part) and 5 magnets (in upper part same as bottom part's 5 surface magnets but in opposite poll so that part can close tightly )

The magnet size is 1.5(diameter)x4mm (height) After printing it is ready to use. it can hold up to 24 bits.
