Screw measuring tool: #6-1/2"+L:1/8-4"+P:28-6TPI
por andres_PI en MakerWorld

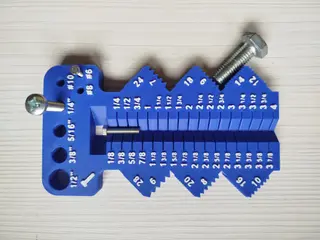

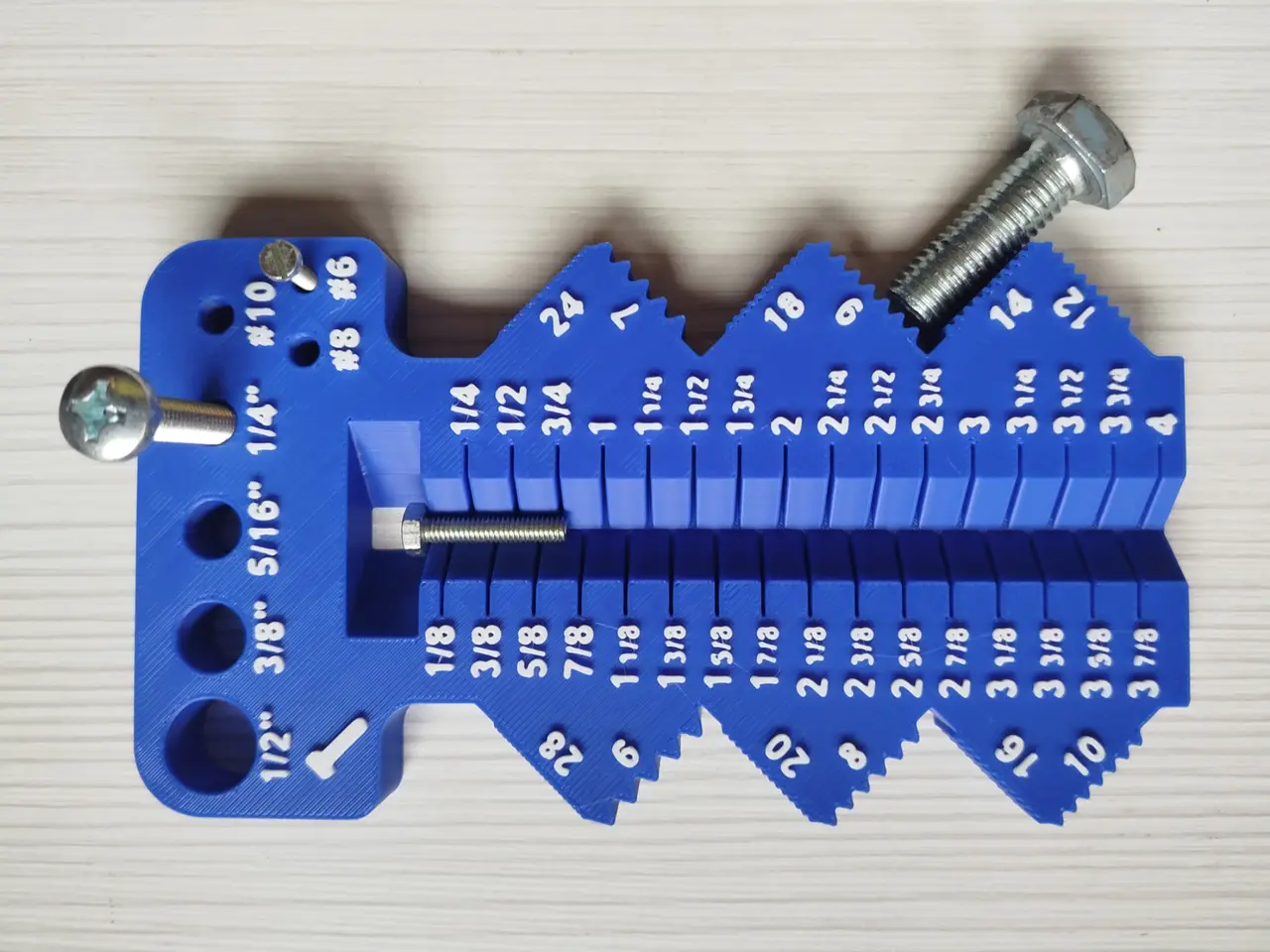

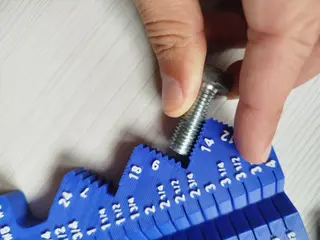

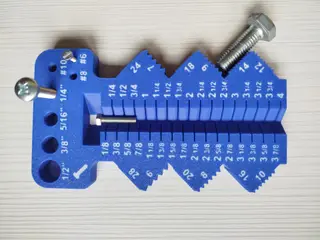

If you want the metric or ISO (EU) version, I have another model here. This tool allows you to measure imperial (US system) screws ranging from #6 to ½" in size and from 1/8" to 4" in length. It also includes a thread pitch gauge from 28 to 6 TPI.
MakerWorld entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalStandard Digital File License
Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a andres_PI.
Archivos (3)
- Con Relieve.stl STL · 7,9 MB
- Monocolor.stl STL · 7,8 MB
- Sin Relieve.stl STL · 10,5 MB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 454
- Publicado
Sobre este modelo
If you want the metric or ISO (EU) version, I have another model here. This tool allows you to measure imperial (US system) screws ranging from #6 to ½" in size and from 1/8" to 4" in length. It also includes a thread pitch gauge from 28 to 6 TPI. There are three print models/profiles:

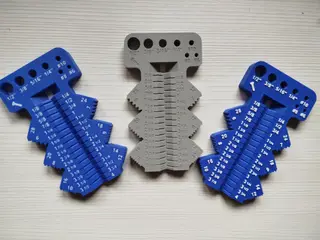

- 2-color model with raised lettering (requires a filament change for the last 5 layers, so it can be printed without issues even without an AMS)
- 2-color model with flat lettering (easier to print with an AMS, though it is set up to require only two color changes)
- Single-color model (debossed/negative lettering)
If you prefer, there is a model without the screw pitch gauge.
If you like this model, don't hesitate to visit the rest of my designs.
Boost Me¡Gracias por el apoyo!
Descripción original del autor, publicada en MakerWorld.
