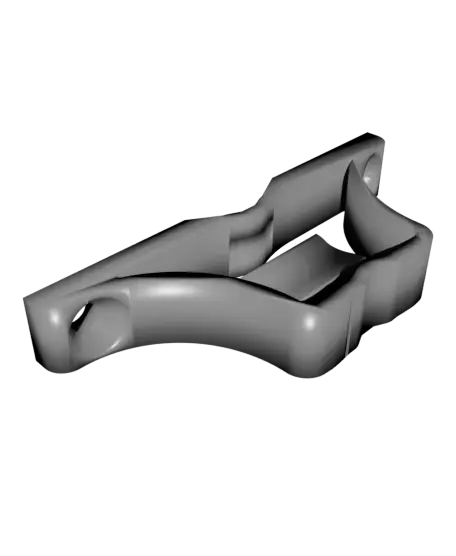

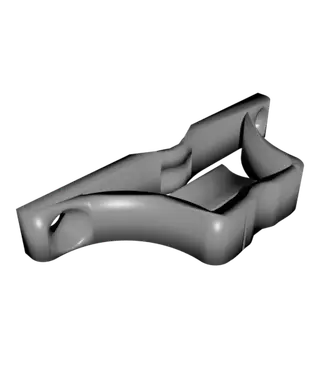

Screw In, Free-Standing Foot
por Jonathan K en Thangs
Attach a “Free-Standing Foot” to your Multiboard so it stands by itself, and use it as a desk organizer.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesMULTIBOARD LICENCE - Download Terms and Conditions - 12-June-2024
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Jonathan K.
Archivos (1)
- Screw In, Free-Standing Foot.stl STL · 284 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 5,736
- Publicado
Sobre este modelo
Attach a “Free-Standing Foot” to your Multiboard so it stands by itself, and use it as a desk organizer.

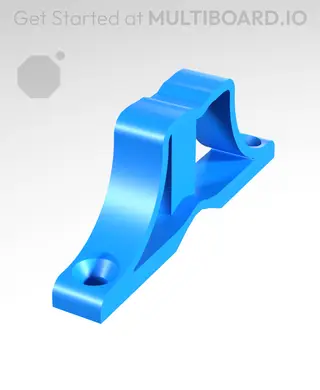

This version of the Free-Standing Foot has screws holes on it, allowing you to screw it to a surface.
The free-standing foot comes with two pieces: the foot and the support piece.
To set it up, you insert the foot into a hole on the bottom of your Multiboard, then you place the support piece inside the foot to secure it into place.
Learn more about this part at https://multiboard.io/knowledge-hub
Printing Guidelines:
The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
—
This object is part of Multiboard, a FREE "all in one" organization system with 700+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.
Explore and build the coolest, most adaptable workshop at https://multiboard.io
Descripción original del autor, publicada en Thangs.
