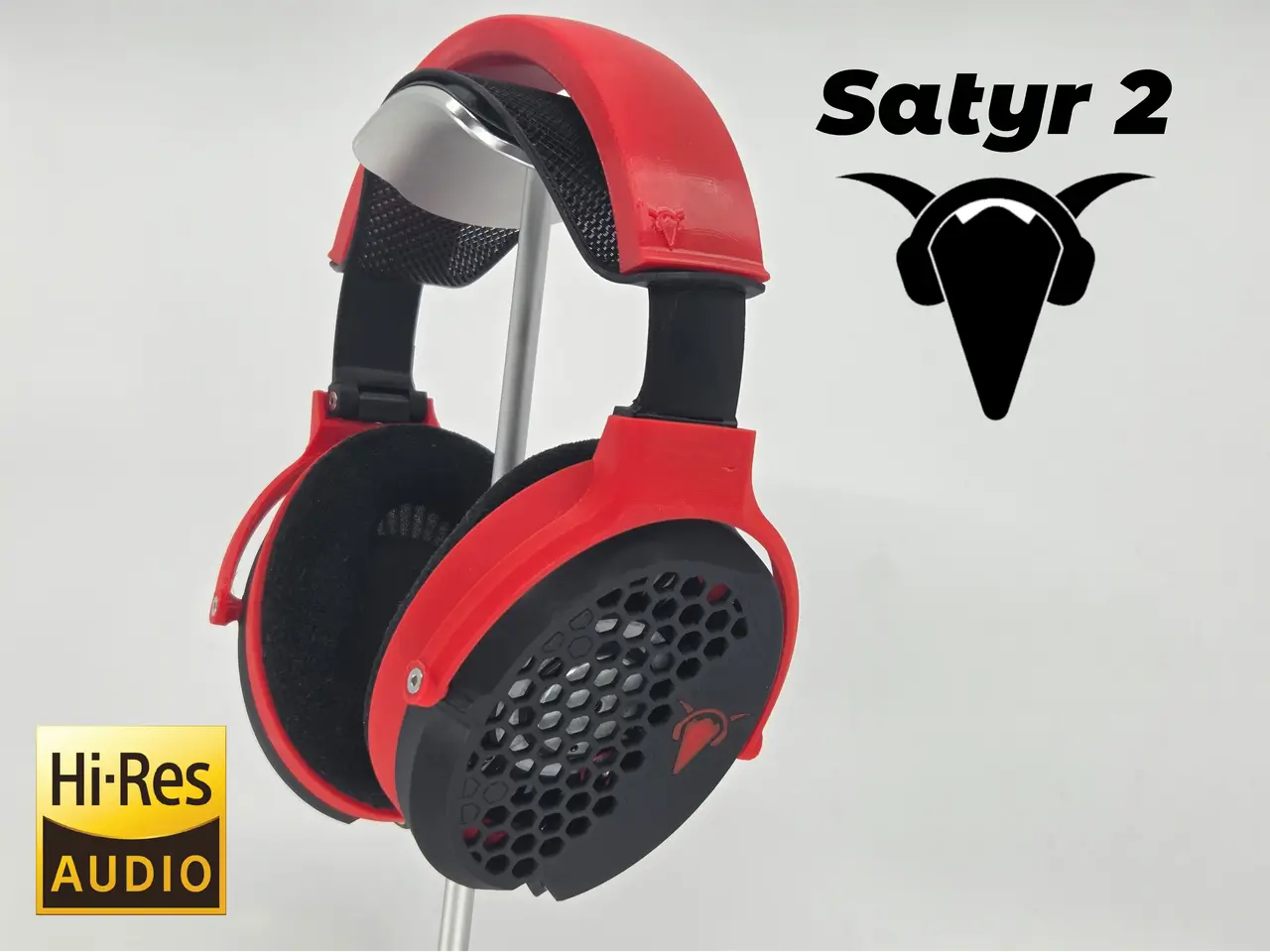

Satyr 2 (DIY HiFi Headphones)
por Capra-Audio en Printables

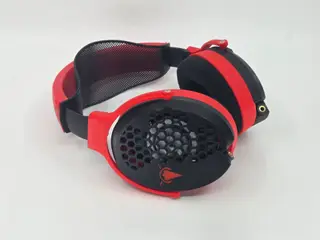

High-End, Audiophile-grade, 3D printable open back headphones.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Capra-Audio.
Archivos (12)
- Satyr 2 Rear Housing Right.3mf 3MF · 362 KB
- Satyr 2 Yoke Left.3mf 3MF · 182 KB
- Satyr 2 Yoke Right.3mf 3MF · 182 KB
- Satyr 2 Housing Left.3mf 3MF · 263 KB
- Rear Cup (L).stl STL · 1,6 MB
- Rear Cup (R).stl STL · 1,5 MB
- Rear Cup 3.5mm (R).stl STL · 1,6 MB
- Rear Cup 3.5mm (L).stl STL · 1,7 MB
- Baffle Frame.stl STL · 1,3 MB
- 50mm Baffle.stl STL · 1,4 MB
- Yoke (R).stl STL · 504 KB
- Yoke (L).stl STL · 839 KB
- Categoría
- Tecnología
- Formatos
- 3MF, STL
- Descargas
- 528
- Publicado
Sobre este modelo
The Satyr 2 presents a sound profile that is a delicate balance of clarity and warmth. It leans toward a mid-forward and neutral signature, allowing vocals and instruments to truly shine and take center stage. There's a subtle but noticeable boost in the bass, giving the low-end a satisfying fullness without being overpowering. This is then followed by a gentle roll-off in the sub-bass frequencies, a characteristic often found in open-back headphones, which contributes to its airy and spacious soundstage. Video Tutorial Self sourced BOM Affiliate Links: 2x 50mm Peerless Drivers 12x FHSC M3x6 Bolts 8x BHSC M3x6 Bolts 14x M3x5 Heat-set Inserts 10 Micron Nylon Mesh
3.5mm or MiniXLR Connectors Geekria Pads (Cheapest) Stock Sennheiser HD600 pads (Best Sounding) ZMF HD600 Pads (Most Comfortable)
Additional Affiliate Links if you want to support us further: Polymaker 95a TPU Polymaker PLA Pro Polymaker PETG
Place a piece of 10micron nylon mesh in in front of the baffle before applying the pads, make sure its nice and tight. Use 4 m3x6 FHSC bolts and 4 m3x5 heat-set inserts to affix the Baffle Frame to the Rear Housing. Use 4 m3x6 bhsc bolts to affix the driver to the 50mm baffle assembly. Use Stock HD600 pads for the best sound. (ZMF perforated leather pads are a nice alternative if the senn pads are out of stock). The Headband files can be found here.
Compare against other headphones: Squig.Link
Compare against other headphones: Squig.Link
Compare against other headphones: Squig.Link
