Samsung TV Remote Reference Model — STEP & STL

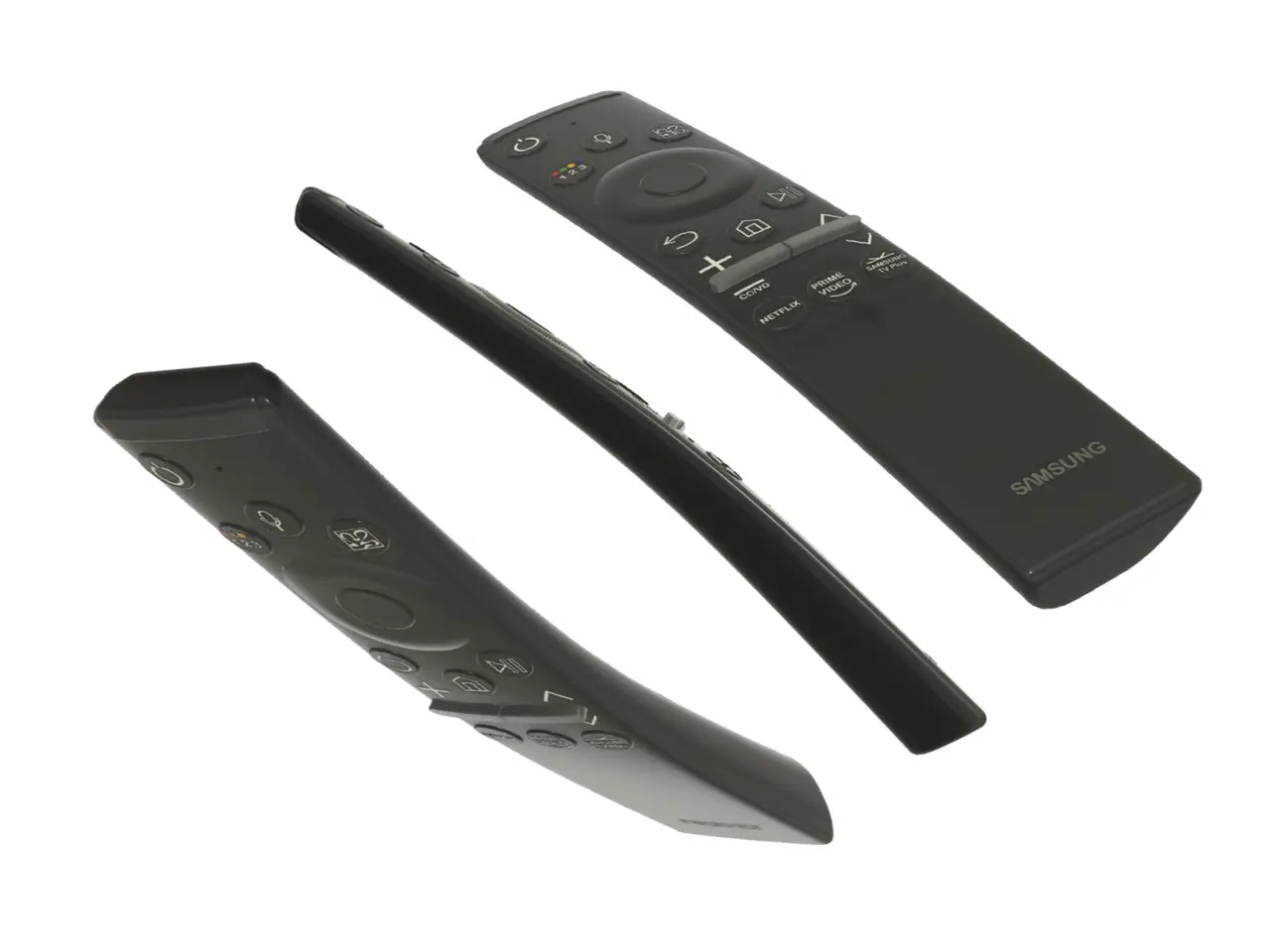

Samsung TV Remote Reference Model — STEP & STL A 3D reference model of a Samsung TV remote, independently created by Yutaka3DLab for designing custom mounts, stands, holders, organizers, and other accessories. This model provides reference geometry for CAD design, prototyping, and fit-checking. It is intended as a design aid, not as a functional replacement remote. FEATURES - Independently created Samsung TV remote reference geometry

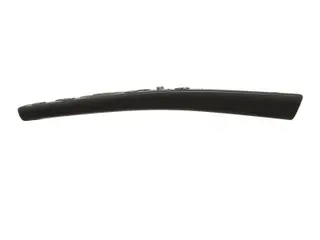

- Curved body profile and representative button layout

- STEP file for CAD design and modification

- STL file for visualization, positioning, and test fitting

- Useful for designing custom remote holders, stands, wall mounts, and organizers

- Suitable for personal, educational, and commercial accessory development, subject to the selected license

COMPATIBILITY Based on a Samsung BN59 / TM2050-style TV remote, matching the general appearance shown in the images. Samsung manufactures multiple remote designs and revisions. Please compare the shape of your physical remote with the model before using it for accessory design. This is independently created reference geometry, not official Samsung CAD data. Critical dimensions and fit should be verified against the actual remote. FILES INCLUDED - STEP — editable CAD reference geometry

- STL — mesh reference geometry

- README.txt — model information and usage guidance

- LICENSE.txt — licensing information

INTENDED USE Use this reference model to develop your own original products, including: - Desktop remote stands

- Wall-mounted remote holders

- Remote organizers

- Storage accessories

- Custom mounts and enclosures

Commercial development of original accessories is permitted as described in the licensing information. Resale or redistribution of the reference model itself is not permitted under the intended terms. IMPORTANT - Digital 3D model only — no physical remote is included.

- This is not a functional electronic remote.

- This model is intended primarily for CAD reference, not as a finished 3D-printable product.

- Verify critical dimensions before producing fitted accessories.

LICENSE Open Community License v1.1 + Research & Development v1, as selected on Printables. See LICENSE.txt and the license displayed on this Printables listing for applicable terms. ABOUT THE DESIGNER Designed by Yutaka3DLab https://yutaka3dlab.com/ [email protected] Samsung is a trademark of Samsung Electronics. Yutaka3DLab is an independent designer and is not affiliated with or endorsed by Samsung.
