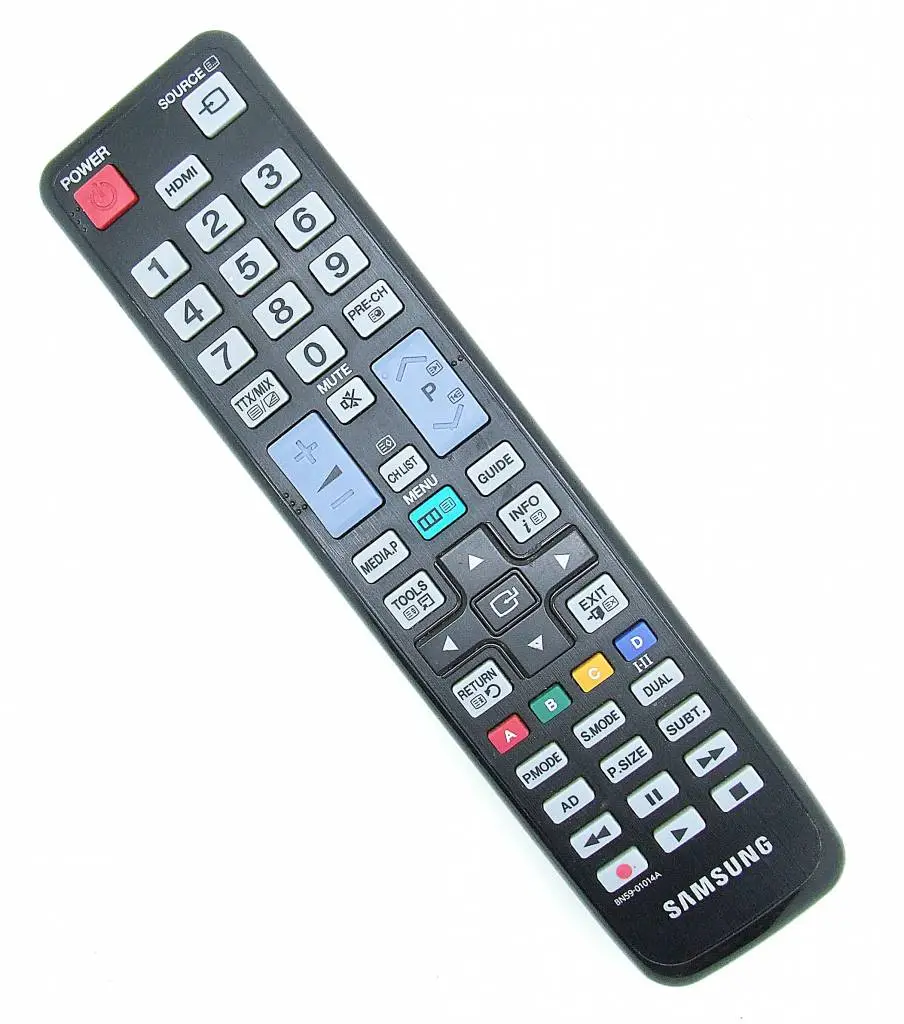

Samsung TV Remote control Battery lid

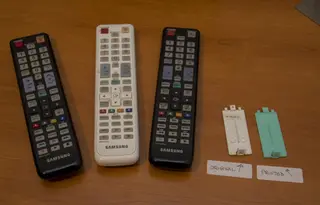

I have three similar Samsung TV Remote control, my son playing broke the battery lid of one of these remote controls.

I printed this lid with a clone of prusa (zonestar), unfortunately not very precise and for this I had to do various tests but in the end perseverance rewards

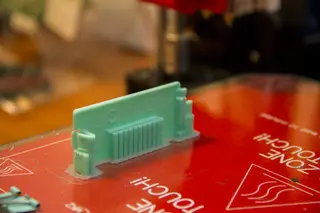

I decided to print the object vertically for two reasons :

1) for anisotropy, in this way the clip is resistant, does not break .. otherwise printing in horizons (easier and faster) the clip is very delicate if printed in PLA

2) it was easier for me to remove the media and avoid using the tool file :)

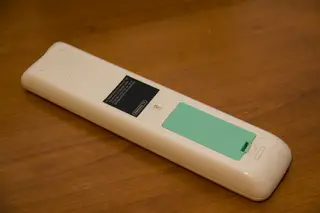

this battery lid has been tested on my TV remote controls SAMSUNG mod. AA59-004654 BN59-010781 BN59-01039A

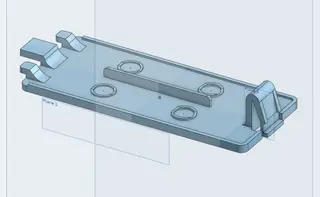

I took measurements with the caliber and designed with onshape

Look the video

I hope it can be useful to others
