Ryobi 18V Battery Mount

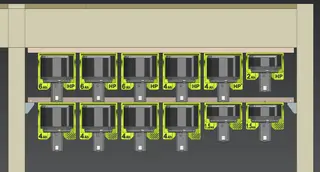

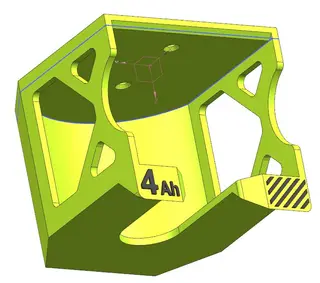

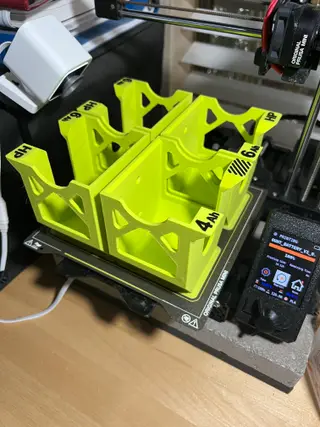

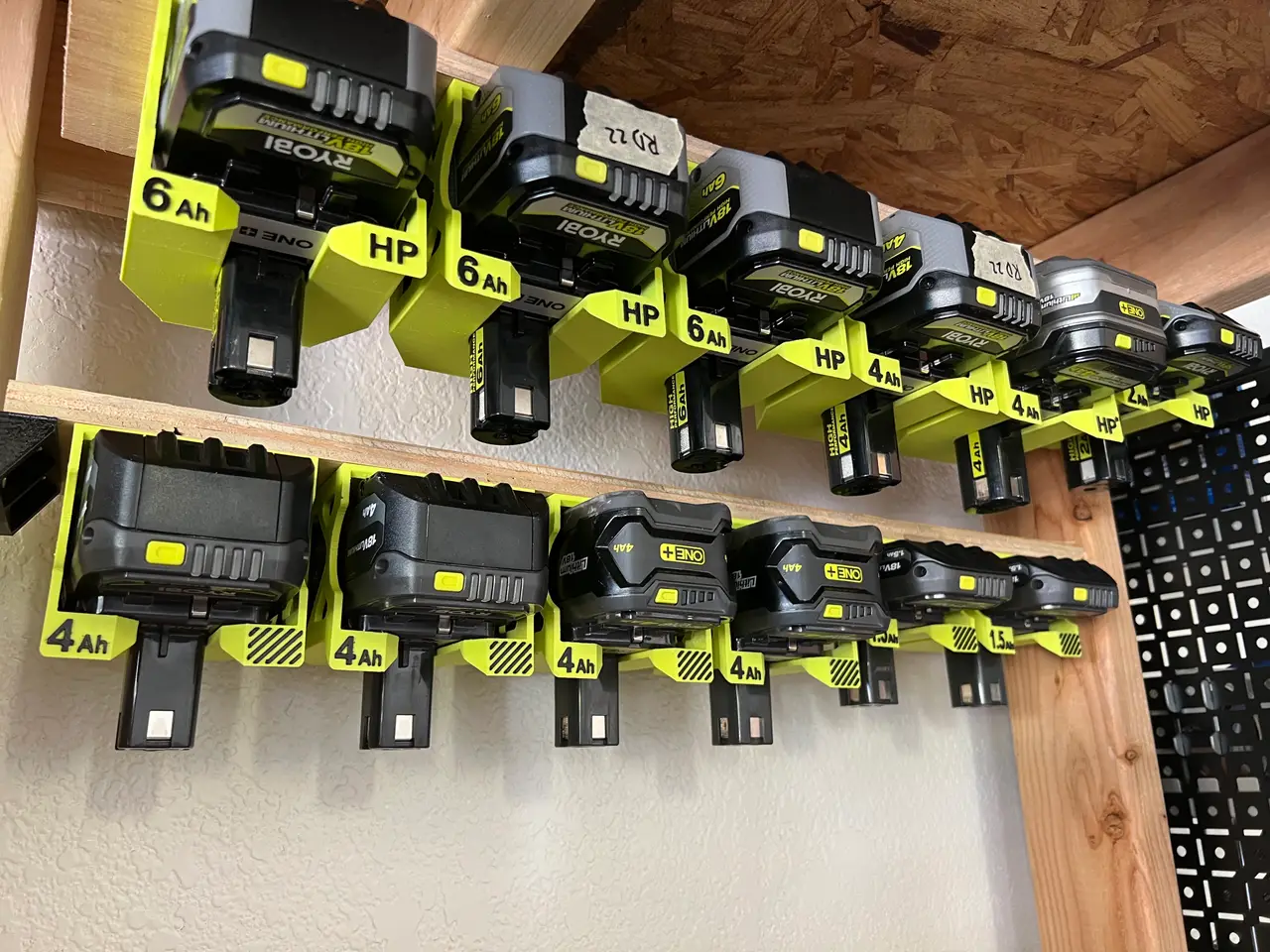

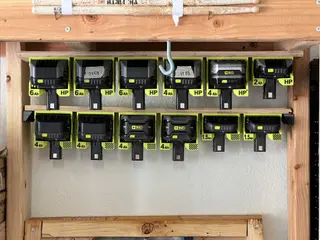

Fitment Note: I only have the Ryobi batteries shown in my photos. Using calipers, I was able to precisely design for those versions, which you'll find have excellent fitment. I'm actively adding new version, however I'm basing them on other peoples measurements - I have no way to test them. If you find something doesn't fit, or would like a new version added, please describe exactly how wide/tall/deep they should be based on the diagram below. Thank you! Files are provided for various Ryobi 18v battery mounts. There's two main categories: large and small: - The large mounts include custom text for 6AH HP, 6AH HP (old version), 5AH, 4AH HP, 4AH, 3AH, 3AH HP, and blank (no text) - The small mounts include custom text for 2AH HP, 1.5AH, and blank (no text) - I highly recommend adding a color change for the text, as seen in my photos, to help readability. You can also do no color change, and then use a black marker to color the text (this doesn't look quite as good). - The filament used is PLA from Overture, Matte Grass Green (matches Ryobi green pretty close!). - 4 can be printed at a time as shown in one of my photos (for a Prusa Mini). - No support required - Mounting holes are designed for #6 screws - These fit most Ryobi batteries perfectly, but some older batteries may be tight. Sanding the interior faces will fix that. - I regrettably designed these in imperial units, so they will need to be converted in your slicer to metric. In PrusaSlicer this is a very easy task of right clicking on the model and selecting “Convert from imperial units”:

-
