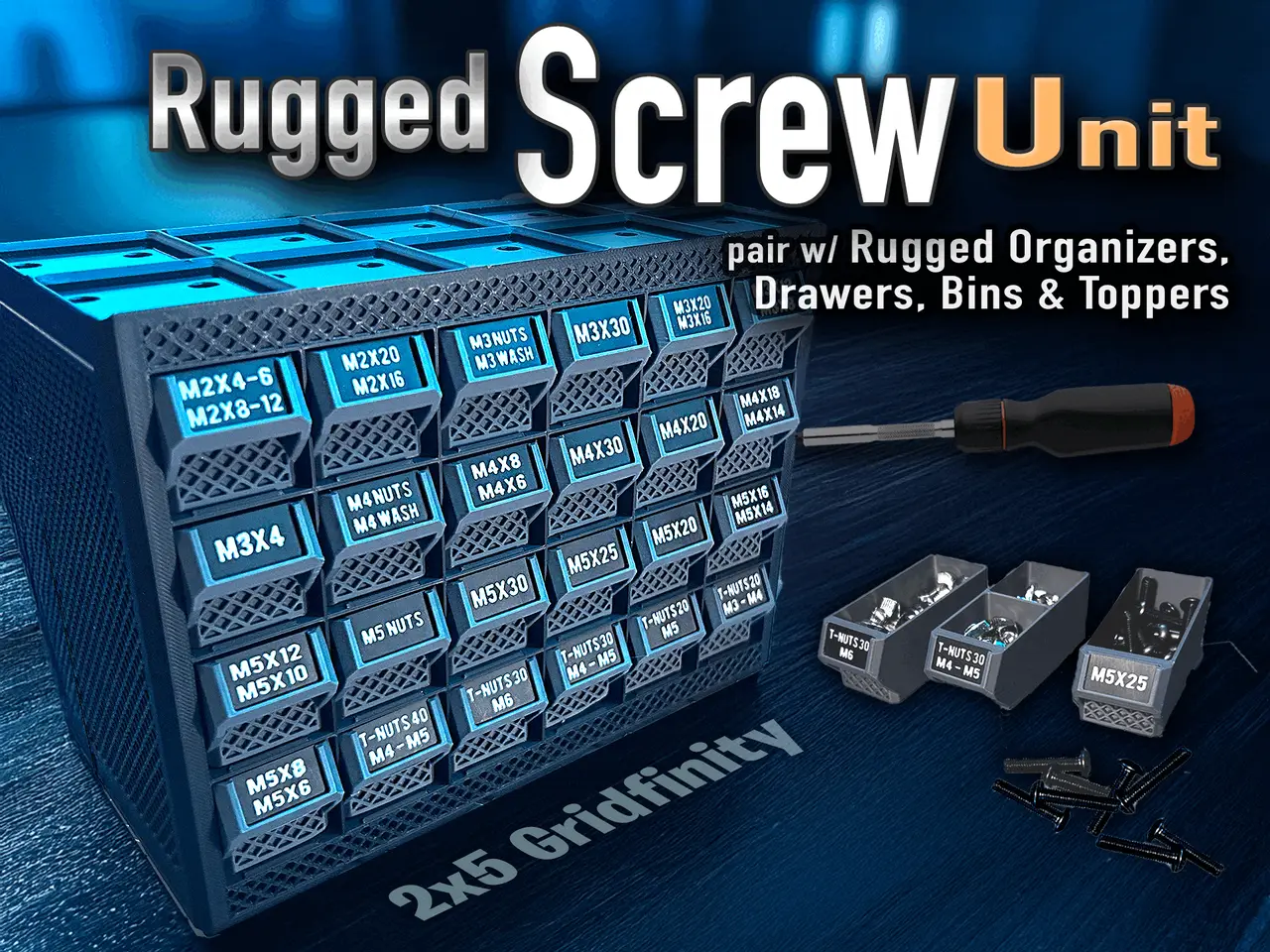

Rugged Screw Unit - Gridfinity Hardware Storage
por K2_Kevin en MakerWorld
New XL Version now available as well, Click Here! Check out the Full Rugged Organizer System Collection “Click Here”
MakerWorld entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalStandard Digital File License
Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a K2_Kevin.
Archivos (13)
- Rugged_ScrewU_1Scoop.stl STL · 122 KB
- Rugged_ScrewU_2Scoop.stl STL · 171 KB
- Rugged_ScrewU_4Scoop.stl STL · 212 KB
- Rugged_ScrewU_DIV_Scoop.stl STL · 141 KB
- Rugged_ScrewU_Magnet_Topper.stl STL · 663 KB
- Rugged_ScrewU_NoScoop.stl STL · 100 KB
- ScrewUnit-Drawer_Wide_2.stl STL · 160 KB
- ScrewUnit-Drawer_Wide_2Scoop.stl STL · 210 KB
- ScrewUnit-Drawer_Wide_4.stl STL · 168 KB
- ScrewUnit-Drawer_Wide_NoScoop.stl STL · 155 KB
- ScrewUnit-Drawer_Wide_Scoop.stl STL · 171 KB
- Wide Drawer Label.scad SCAD · 5 KB
- Small Drawer Label.scad SCAD · 5 KB
- Categoría
- Herramientas
- Formatos
- STL, SCAD
- Descargas
- 28,632
- Publicado
Sobre este modelo
New XL Version now available as well, Click Here!
Check out the Full Rugged Organizer System Collection “Click Here” Also fits my Rugged Organizers & Custom Storage Drawers New Rugged System Add-Ons added all the time!

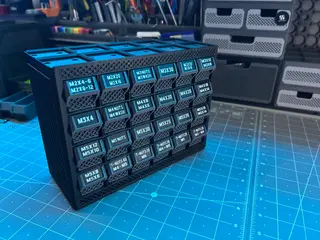

Rugged Screw Unit Collection - (Gridfinity Stackable)
CUSTOM LABEL GENERATOR - Click Customize for Small & Wide (BETA)
Check out the FULL RUGGED COLLECTION
Need to visualize your layout? Try this amazing Rugged Drawer System Planner by shinaka
What's Special about the Rugged Screw Unit?
- Added drawer stops!!! Don't accidentally spill your screws.
- Gridfinity for easy stack-ability
- Rugged Tray Topper (for top and in front of ScrewUnit) with magnet option to hold spare screws/parts while in use.
- Toppers take 2 magnets stacked for more magnetic strength.

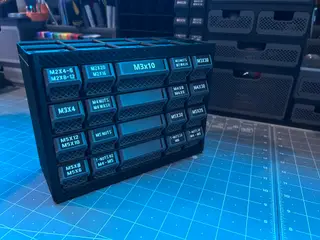

- Scoop and no scoop drawers
- Large Screw holes for wall mounting.
- Compatible with all Rugged Organizer drawers (lines up perfectly offering the ability to overlap toppers or other items.
- 6x2 magnets with glue. Glue in hole(s)
PRINT SETTINGS:
- Layer Height: 0.2mm
- Supports and Brim Ears added for cleaner gridfinity and drawer fronts.
- DRAWERS: Supports Recommended (Normal Supports on front lip ONLY)
- I setup the Frame to print vertically (backside down) without supports. There was a little stringing under some of the gridfinity, but that did not warrant me using supports. 10 seconds of post processing (just clip the saging strings) saves a lot of print time. If you want or need to use supports, I'd recommend paint on manual supports only under each grid finity block on the bottom.
- Build Plate: Large prints like this are prone to warping. I recommend using GLUE / Nano Polymer on your build plate, and lower the AUX fan speed to 20-50% prevent warping!

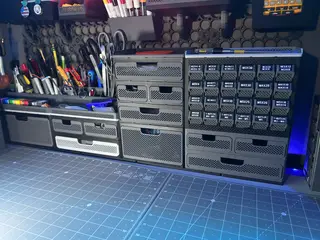

Rugged Organizers / Drawers with your Screw Unit!
Q&A - What does Gridfinity 2x5, 3x4, 2x5, etc. mean?
- Gridfinity is a modular, open-source organization system that uses a grid to attach/organize multiple boxes or holders to items.
- Gridfinity Baseplates are optional, not required for these models. Profile for Gridfinity Baseplates added, you can overlap your drawer across multiple baseplates to secure multiple drawer frames together horizontally.
- 2x5 is the grid size on the top/bottom of drawer frame and other gridfinity models dimensions.
- Optional Magnet baseplates offer the option of a very secure platform (Only a few magnets should be more than enough)
- The drawer frame sizes are based on the Gridfinity Grid, but you can mix sizes.
