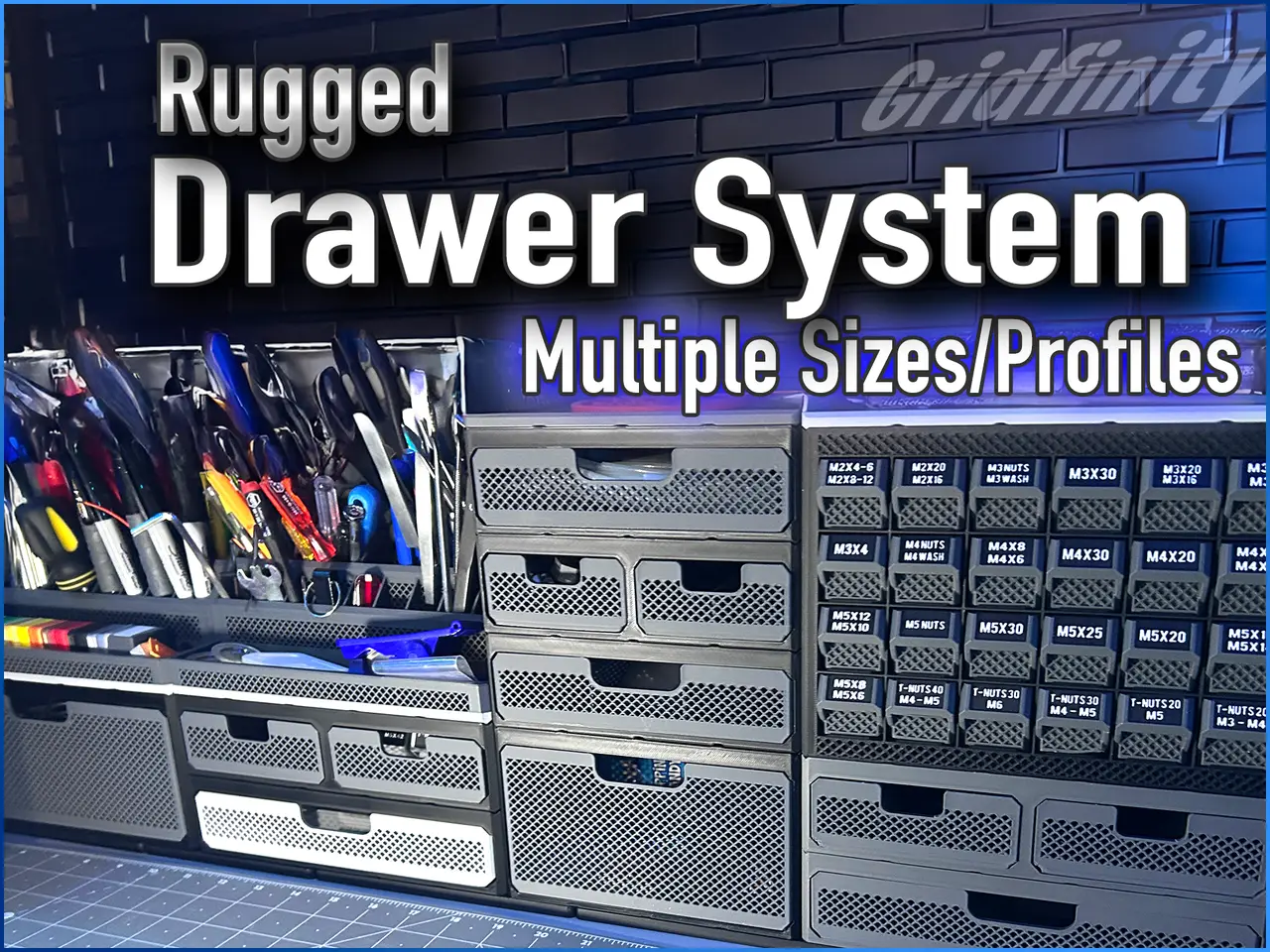

Rugged Drawer System - Gridfinity Organizer

Dimension Convention: Depth × Width ⭐️ Be Sure to Check out the Full Rugged Organizer System Collection “Click Here” ⭐️

Also fits any of my Rugged Models Rugged Organizers & Custom Storage Drawers New Rugged System Add-Ons added all the time! ALL NEW MODULAR MAKER STATIONS

More than 45 Drawer Sizes in Print Profile Listing

Be sure to check all sizes - “Click to see more” in Profile list. Select the size/profile, then click Download 3MF

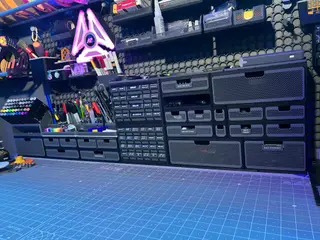

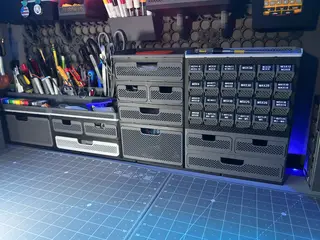

RUGGED DRAWER SYSTEM RUGGED FOR REASON! Designed to meet the demands of both light and heavy-duty storage applications. A stackable Gridfinity Drawer System that perfectly pairs with the Rugged Desktop Organizers, Bins and more. Stand alone stackable drawers. This versatile and functional model is perfect for those looking to bring organization to their workspace. It's available in multiple sizes (more profiles/sizes coming soon). Whether it’s for your desk at home, office or work bench, this Drawer System is designed to bring ease and structure to your space.

Notes:

- UPDATE: Added 4x6 Triple Height Drawers.

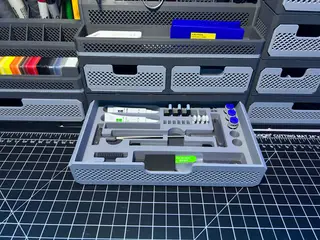

- UPDATE: Added new divided drawers to the 5x4 Set.

Printing Tips/Settings:

- With large prints, warping can happen.

- Clean your print bed thoroughly

- Use Glue Stick or Nano Polymer to prevent warping

- If not using my profile, be sure the Aux Fan in the X1/P1S is turned off (This can help prevent warping on large prints)

- If your room temp is colder than normal, raising up bed temp to 65c can help.

- I setup the Drawer Frame to print vertically (backside down) without supports. There can be a little stringing under some of the gridfinity, but that did not warrant me using supports. 10 seconds of post processing (just clip the sagging strings) saves a lot of print time. If you want or need to use supports, I'd recommend paint on manual supports only under each gridfinity block on the bottom.

- Print Settings that can help and often do not transfer when checking printer type.

- In SPEED | slow down for overhangs. - 50mm/s - 10%

- 40mm/s - 25%

- Acceleration | Outer Wall = 3500mm/s

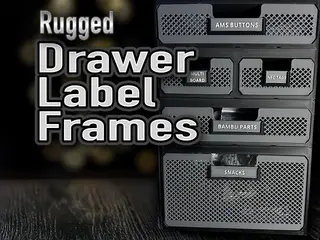

CUSTOM LABEL GENERATOR

Click [Customize] for Small & Wide Labels (Next to the DOWNLOAD button.)

Q&A - What does Gridfinity 3x5, 3x4, 2x5, etc. mean?

- Gridfinity is a modular, open-source organization system that uses a grid to attach/organize multiple boxes or holders to items.

- Gridfinity Baseplates are optional, not required for these models. Profile for Gridfinity Baseplates added, you can overlap your drawer across multiple baseplates to secure multiple drawer frames together horizontally.

- 3x4, 3x5 etc. is the grid size on the top/bottom of drawer frame and other gridfinity models dimensions.

- Optional Magnet baseplates offer the option of a very secure platform (Only a few magnets should be more than enough)

- The drawer frame sizes are based on the Gridfinity Grid, but you can mix sizes.

Need to visualize your layout? Try this amazing Rugged Drawer System Planner by shinaka
