RS-01 Version C OpenRC F1 Fully Adjustable Racing Suspension Chassis

RS-01 Open RC F1 Adjustable Suspension Racing Chassis Version C

By Brett Turnage www.bti3dlabs.com @3dprintRaceTech

***Simplify3d article on the RS-01 chassis and Senna car*** https://www.simplify3d.com/3d-printed-tribute-to-formula-one-icon-ayrton-senna/

**3ders http://www.3ders.org/articles/20160502-3d-printed-formula-one-rc-car-pays-homage-to-racing-legend-ayrton-senna.html**

Aggressively driving the RS-01 Chassis https://youtu.be/opCakqTYoYw

Full car: RS-01 Ayrton Senna’s 1993 McLaren MP4/8 Formula 1 RC-Car http://www.thingiverse.com/thing:1517150

*****UPDATE 4/26/16: Version C*****

***Front suspension and servo mount has been updated to the version that I used in the Senna MP4/8 car:

* Servo now sits upside down * New arms are thicker and have two mounting points to adjust wheel base length. * Rims and Tires for F104 version.**** * New rockers and damper mount

UPDATE: 3/23/16

* New front Suspension * 12 page manual * Parts List (added 3/24/16) * Center Body with hole for fan (3/30/16) if using a ESC with a fan * Tamiya F109 support added * New Front (body) * Motor Lid for F109 * New servo mount

thanks to all who supported this project if you already downloaded the files please re-download to update your files.

Front suspension demonstration video:

https://www.youtube.com/watch?v=kcflgugvOYg

https://www.youtube.com/watch?v=710K5RflqO4

Rocker arm demonstration:

https://www.youtube.com/watch?v=JQEMEXzakdE

Rear suspension demo video:

https://www.youtube.com/watch?v=DTZXX_mjeZY

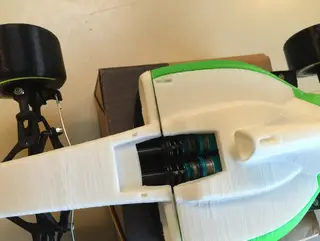

Body on and shock movement demo:

https://www.youtube.com/watch?v=LLCjCuojl9Y

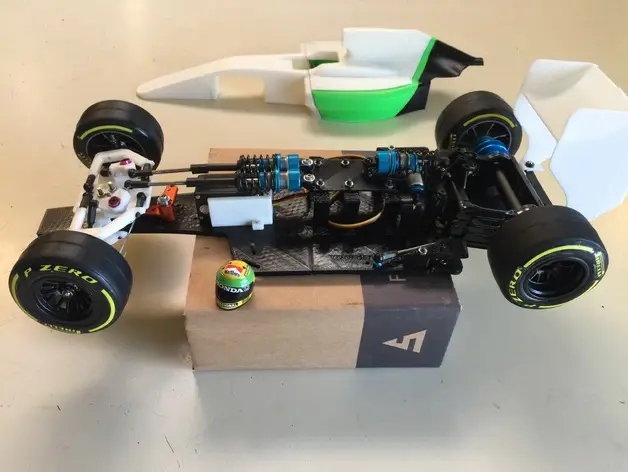

Introducing the RS-01 3d printed chassis designed for the Open RC F1 Remote Control Car.

I’ve named this chassis the RS-01. The “RS” stands for Riverside Speedway. The Riverside Speedway was a historic track, located on the border of Moreno Valley and Riverside, California, that hosted all of the greats from Carol Shelby to Mario Andretti. It even hosted many Formula 1 races. I grew up in Moreno Valley, less than a mile away hearing the sounds of engines filling the air, so I hold that track and it’s historic history as part of my heritage. As a homage to this great track I’ve named my chassis after it.

About Me: I’m a car guy who learned Computer Aided Design (CAD) 5 days ago (since I posted this)… This is the first design that I’ve made. No lie!

GOALS:

The RS-01 Chassis is designed to turn the Open RC F1 into a competition RC race car. This car is a 3d printed version of competition RC cars like the Tamiya F104 Pro Ver. 2 and 3Racing FGX F1—cars that cost around $600.

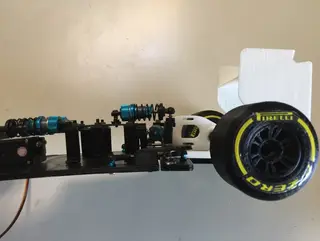

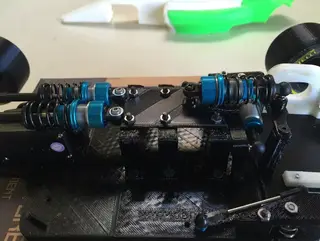

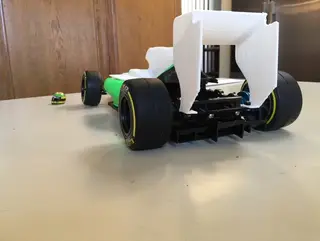

It features tunable front pushrods, adjustable rear suspension with an anti roll dampener. The front suspension translates the movement through rocker arms that then compress the shocks. The rear suspension moves independently of the main body. It is basically a Live Axle with a Panhard Bar. It not only compresses, but can also move torsionally, so if one wheel hits a rock, only that wheel will move up.

Modular Design

I designed this chassis to be modular. You can run 3d printed wheels, or actual plastic wheels from the store—just by changing the axles. Different motor mounts will also be easily swapped in by printing out a different rear chassis which has the correct holes for that particular setup. I did this so that people can choose which type of car that they want to build. If you just want to experience the Open F1 RC car in its full 3d printed form, then you can. Those 3d parts bolt right up! Now you can have a printed 3d printed suspension to help you corner faster and hopefully avoid crashes caused by having no suspension, BUT if you are focused on building the fastest remote control car that you can have, with the most powerful motor and stickiest rubber tires that you can find—cars that can run 80 mph, then this chassis will also work for you. In its race form it is designed to use Tamiya F104 rear motor mounts and rear axle. With these additions, the sky is the limit. Go to the track and show people how fast a 3d printed car can go!

Front Suspension:
