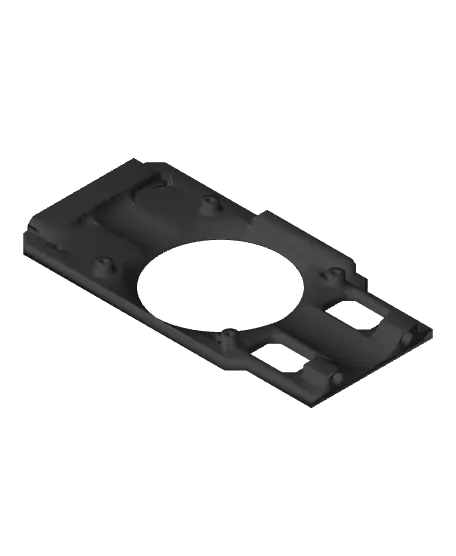

RPi Mount + 4010 Axial Fan and Waveshare USB Support
This design features a unique mounting system that positions the fan in front of the Raspberry Pi rather than on top, which is ideal for tight spaces. This also supports cooling when utilizing a Waveshare USB tophat, which traditional top-down fan mounts would not be equipped to do.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Matthew J.
Archivos (2)
- RPi + 4010 Axial Mount - Waveshare USB Hub Comp - Less Filament.3mf 3MF · 131 KB
- RPi + 4010 Axial Mount.3mf 3MF · 120 KB
- Categoría
- Para tu impresora
- Formatos
- 3MF
- Descargas
- 7
- Publicado
Sobre este modelo

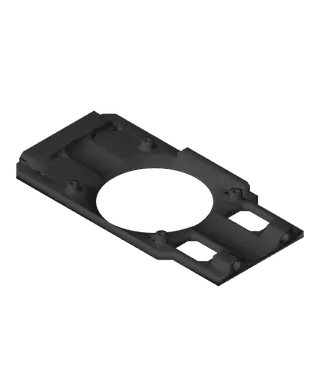

This design features a unique mounting system that positions the fan in front of the Raspberry Pi rather than on top, which is ideal for tight spaces. This also supports cooling when utilizing a Waveshare USB tophat, which traditional top-down fan mounts would not be equipped to do.
Hardware Required - M3x6 screws (2) - M3 heat set inserts (2) - This is for where the fan mounts

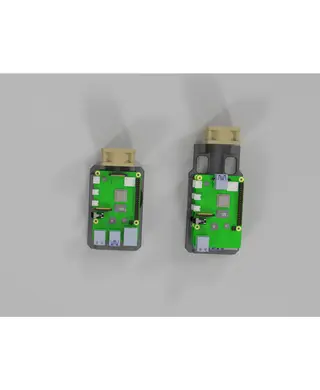

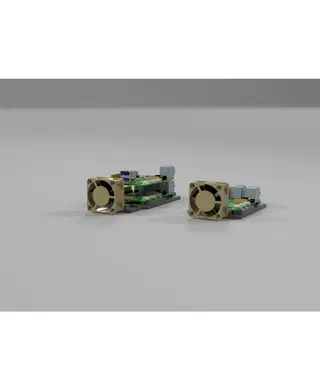

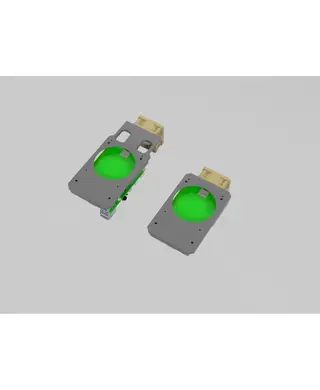

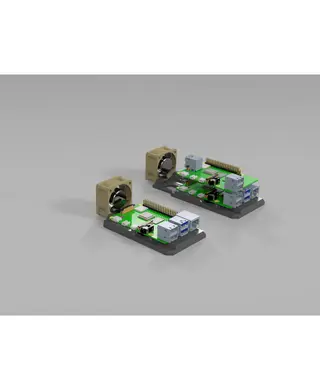

Features Space-Saving Design: The fan is mounted in front of the Raspberry Pi, allowing for more compact setups. Multiple Versions: One version is for standard Raspberry Pi setups, while the other provides additional clearance for a Waveshare USB tophat. Efficient Cooling: The axial fan ensures your Raspberry Pi stays cool, preventing overheating during demanding tasks. DIN Rail Compatibility: This mount can be easily attached to a DIN rail with standard Voron DIN clips, offering versatility in installation options. Easy to Print: Designed with optimal 3D printing settings in mind, ensuring a hassle-free printing experience. Get ready to elevate your Raspberry Pi projects with this innovative mount that combines functionality and convenience!
3D Print Settings - Walls: 3 - Infill: 15% - Top/Bottom layers: 4
Happy printing!
