Router Mounting Template for worktop connector bolts
por Michał Mietliński en Printables

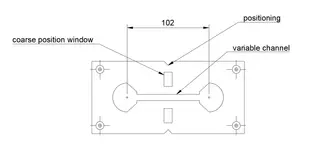

Worktop Jointing Bolt Template for easy routing, variable for different router bit sizes available, print in place.
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Michał Mietliński.
Archivos (6)
- Router_template_8mm_channel.stl STL · 47 KB
- Router_template_11mm_channel.stl STL · 47 KB
- Router_template_14mm_channel.stl STL · 46 KB
- Router_template_8mm_channel_clamp_channel.stl STL · 37 KB
- Router_template_11mm_channel_clamp_channel.stl STL · 37 KB
- Router_template_14mm_channel_clamp_channel.stl STL · 36 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo
Worktop Connector Bolt Drilling Jig A simple 3D printed drilling jig for accurately marking and drilling holes for worktop connector bolts. Designed to help position the holes consistently when joining two worktops together. The jig makes the layout quicker and more accurate compared to measuring and marking by hand. Place the jig on the worktop, align it with the joint, and use the appropriate drill bit to mark or drill the required holes.
Descripción original del autor, publicada en Printables.
