Round Junction Box Cover Plate with Cable Pass-Throughs

Round Junction Box Cover Plate with Cable Pass-Throughs

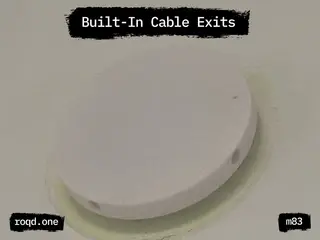

A round cover plate for recessed electrical junction boxes with openings for bringing selected cables out of the box.

Need a custom part for your setup? I design print-ready models from photos, sketches and measurements. Request a custom design (https://roqd.one/ith)

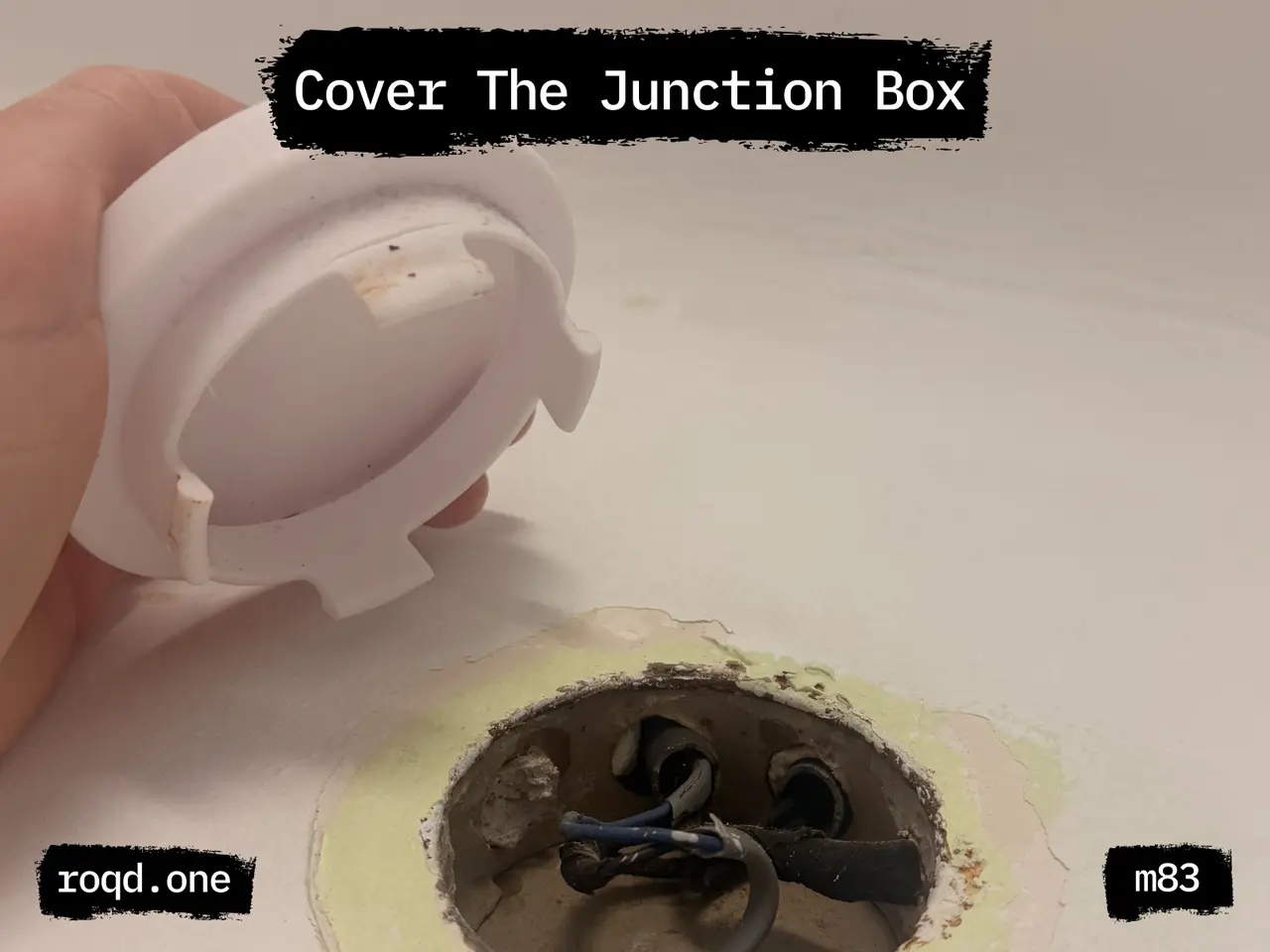

I designed this cover to replace loose or damaged covers on round recessed wall boxes while still allowing cables to exit when needed. The inner ring inserts into the box and the outer flange covers the surrounding opening.

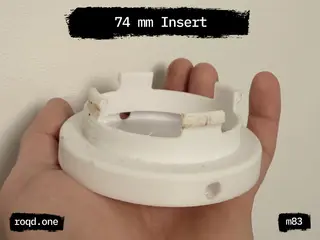

Key details - Outer cover diameter: 94 mm - Outer cover inner diameter: 90 mm - Outer cover thickness: 12 mm - Insert outer diameter: 74 mm - Insert inner diameter: 70 mm - Insert depth: 10 mm - Retention tabs extend approximately 8.25 mm deeper - Diameter across tab ends: 78 mm

Files included - Round junction box cover plate model

Important

This is a mechanical cover, not a certified electrical enclosure component. Verify fit, cable protection and electrical clearances. The recessed geometry was designed with support material in mind.
