Rotary to linear drive
por mgg942 en Thingiverse
This is a reworked update of Things 614962 and 652717. The geometry has been corrected to give a more truly linear output, and some fixing points have been enlarged for greater robustness. A complete set of stl file have been uploaded here. The model is based on mechanism 329 from 507movements.com..
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a mgg942.
Archivos (12)
- gear_inner_3_retainer.stl STL · 38 KB
- conn_rod_3_retainer.stl STL · 38 KB
- end_2.stl STL · 167 KB
- driver_2f.stl STL · 567 KB
- handle_inner.stl STL · 186 KB
- handle.stl STL · 154 KB
- handle_sleeve.stl STL · 205 KB
- piston.stl STL · 73 KB
- conn_rod_3.stl STL · 729 KB
- gear_outer_f.stl STL · 1,1 MB
- base_2f.stl STL · 977 KB
- gear_inner_3f.stl STL · 1,2 MB
- Categoría
- Educación
- Formatos
- STL
- Descargas
- 37,961
- Publicado
Sobre este modelo

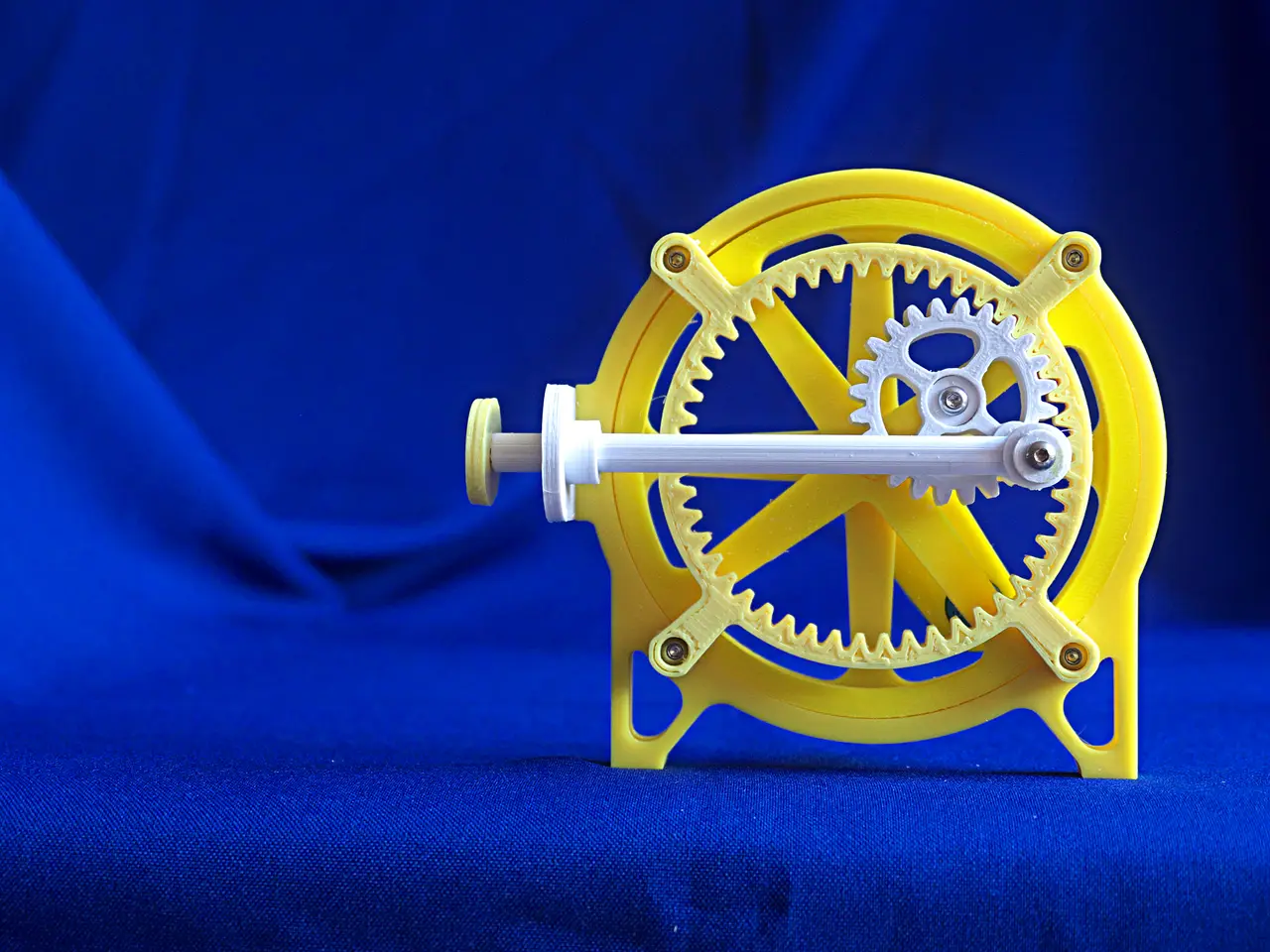

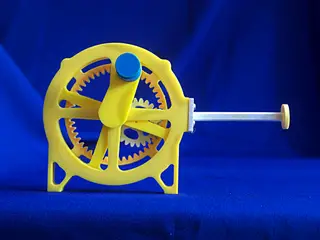

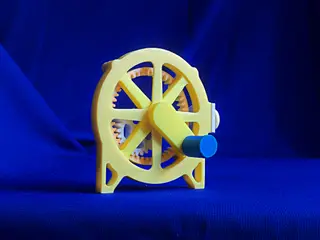

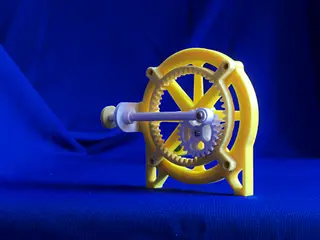

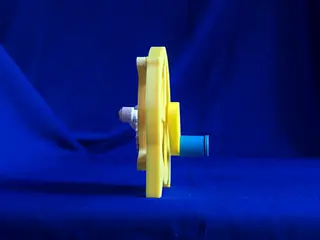

This is a reworked update of Things 614962 and 652717. The geometry has been corrected to give a more truly linear output, and some fixing points have been enlarged for greater robustness. A complete set of stl file have been uploaded here. The model is based on mechanism 329 from 507movements.com. Designed in Moi and made in PLA on an Ultimaker 1. An animation created in Blender is available here: https://youtu.be/T4Nh_J__8oU A video of the printed model is available here: https://youtu.be/Cy_rkiBq3vw Note the flexing!
