Rose Window Lamp - Gothic Arcade E27 Lamp Shade with Table and Wall Stand
A ribbed gothic bell with a pointed-arch arcade at the rim, quatrefoils, lancets and trefoils between 16 vault ribs. The stand carries a rose window in the bracket with a fleur finial, a fluted column with annulets and a stepped base with an engraved rose.
Cults3D entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalLicencia de uso privado de Cults3D: puedes imprimirlo para ti. No se permite compartir el archivo ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a VRam3D.
Archivos (5)
- Rose_Window_Lamp_Arm.stl STL
- Rose_Window_Lamp_Shade.stl STL
- Rose_Window_Lamp_Table_Base.stl STL
- Rose_Window_Lamp_Table_Column.stl STL
- Rose_Window_Lamp_Wall_Plate.stl STL
- Categoría
- Hogar
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo
A ribbed gothic bell with a pointed-arch arcade at the rim, quatrefoils, lancets and trefoils between 16 vault ribs. The stand carries a rose window in the bracket with a fleur finial, a fluted column with annulets and a stepped base with an engraved rose.
One design, three ways to use it:

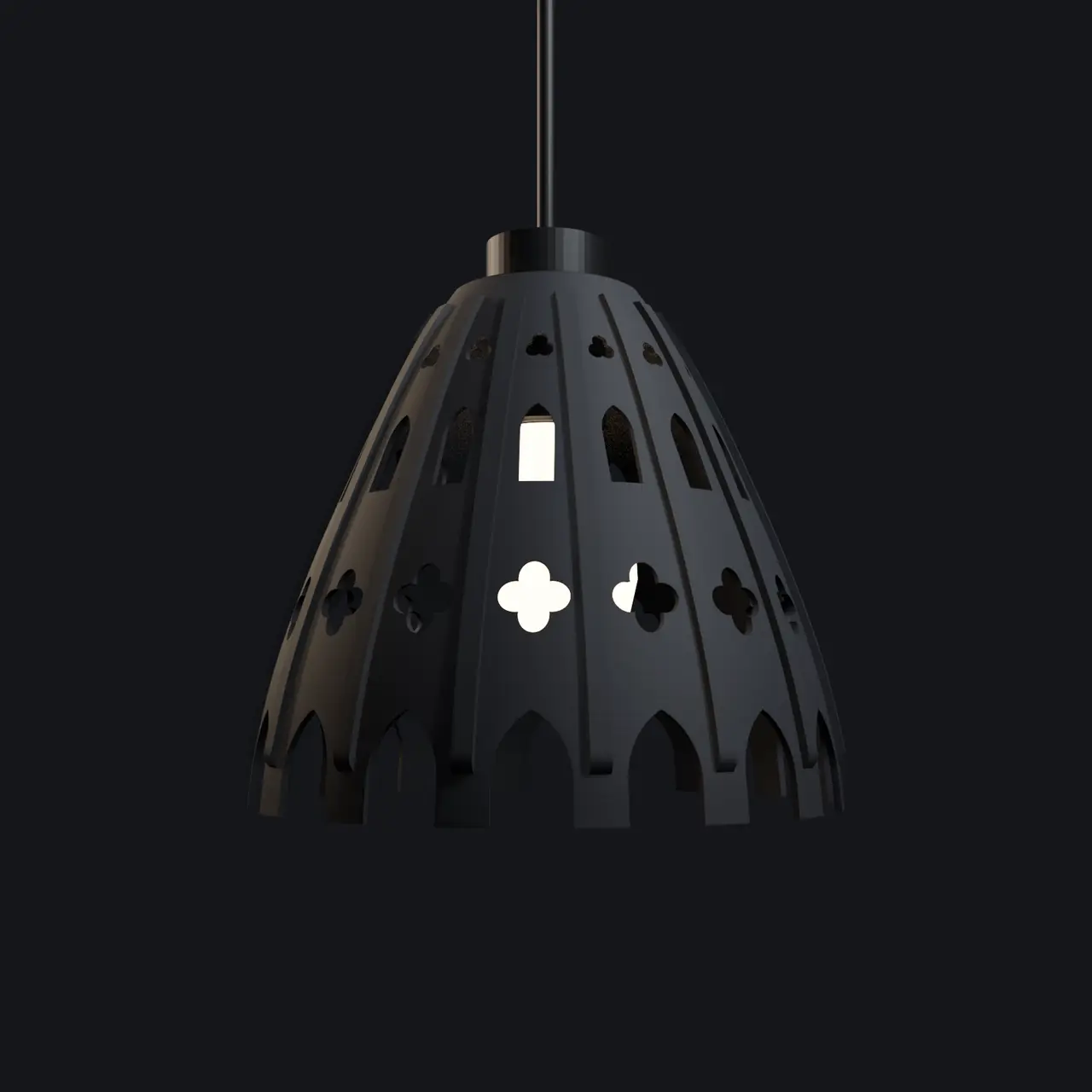

- PENDANT: hang the shade from the ceiling on any standard E27 pendant cord set.

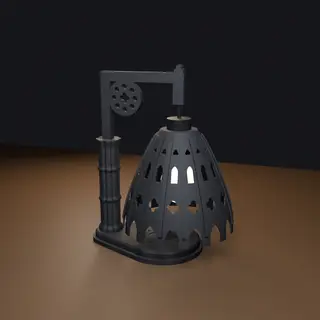

- TABLE LAMP: the shade hangs from the arm of a gothic stand. The shade hangs over a wide base,
so the lamp is very stable (it needs a tilt of about 24 degrees to tip over).

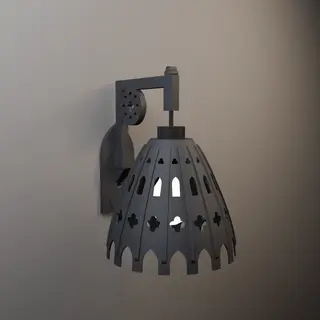

- WALL LAMP: the same arm drops into a wall plate fixed with two screws.
No rewiring, no glue, no screws in the lamp itself: you only need a standard E27 pendant cord set
(cable + lamp holder with shade ring) and an LED bulb. The cable snaps into hidden channels of the

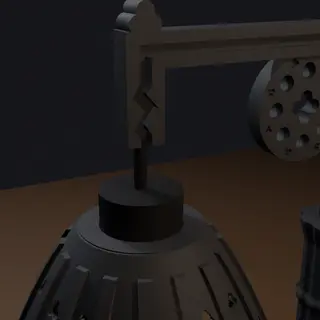

stand, and a zig-zag cable grip at the tip of the arm holds the shade at the height you choose.
Every part prints without supports and is already oriented in the STL files.
WHAT TO PRINT
- Pendant lamp ...... Shade
- Table lamp ........ Shade + Arm + Table_Column + Table_Base
- Wall lamp ......... Shade + Arm + Wall_Plate
PARAMETERS
- Shade: 191 mm diameter x 169 mm high. 16 vault ribs, 16-arch pointed arcade, 16 quatrefoils, 16 lancets, 16 trefoils.
- Stand: bracket with rose window and fleur finial, fluted column with annulets, stepped base with engraved rose, lancet wall plate with rose window.
- Mounting hole: 40.5 mm diameter with a 3 mm thick flat clamping area (standard E27 holder
with threaded sleeve and shade ring).
- Table lamp assembled: 257 x 191 x 316 mm (L x W x H), about 775 g printed
including the shade. Static tip-over angle about 24 deg in the weakest direction.
- Wall lamp: projects 243 mm from the wall, 271 mm high in total.
- Joints: 12 x 14 mm rectangular pegs in 12.5 x 14.5 mm sockets (0.25 mm clearance per side).
- Cable channel: snap-in, 5.4 mm mouth / 6.8 mm inside, for round 2-core cords of 6-7 mm.
- Bulb: A60 LED (60 x 108 mm) or LED filament ST64 / G80; at least 24 mm from glass to plastic.
- Approximate filament: shade 212 g, arm 66 g, column 98 g,
base 287 g, wall plate 74 g.
Descripción original del autor, publicada en Cults3D.
