Roll Support for Spools - Ender 3 - V2
por Bernardo en MyMiniFactory
Version 2 (V2)
MyMiniFactory entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Bernardo.
Archivos (4)
- Roll Support For Spools Ender 3 Clamp.stl STL
- Roll Support For Spools Ender 3 Roll.stl STL
- V2 Roll Support For Spool Ender 3 Clamp.stl STL
- V2 Roll Support For Spool Ender 3 Roll Cylinder.stl STL
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 1,915
- Publicado
Sobre este modelo
Version 2 (V2)
I made a smaller version, so now it fits smaller spool holder holes. It fits as low as a internal spool holder diameter of 56mm
If you like my designs, please support by tipping me. Even $1 is fine :) https://paypal.me/bmabma
----------------------------------

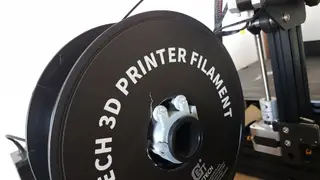

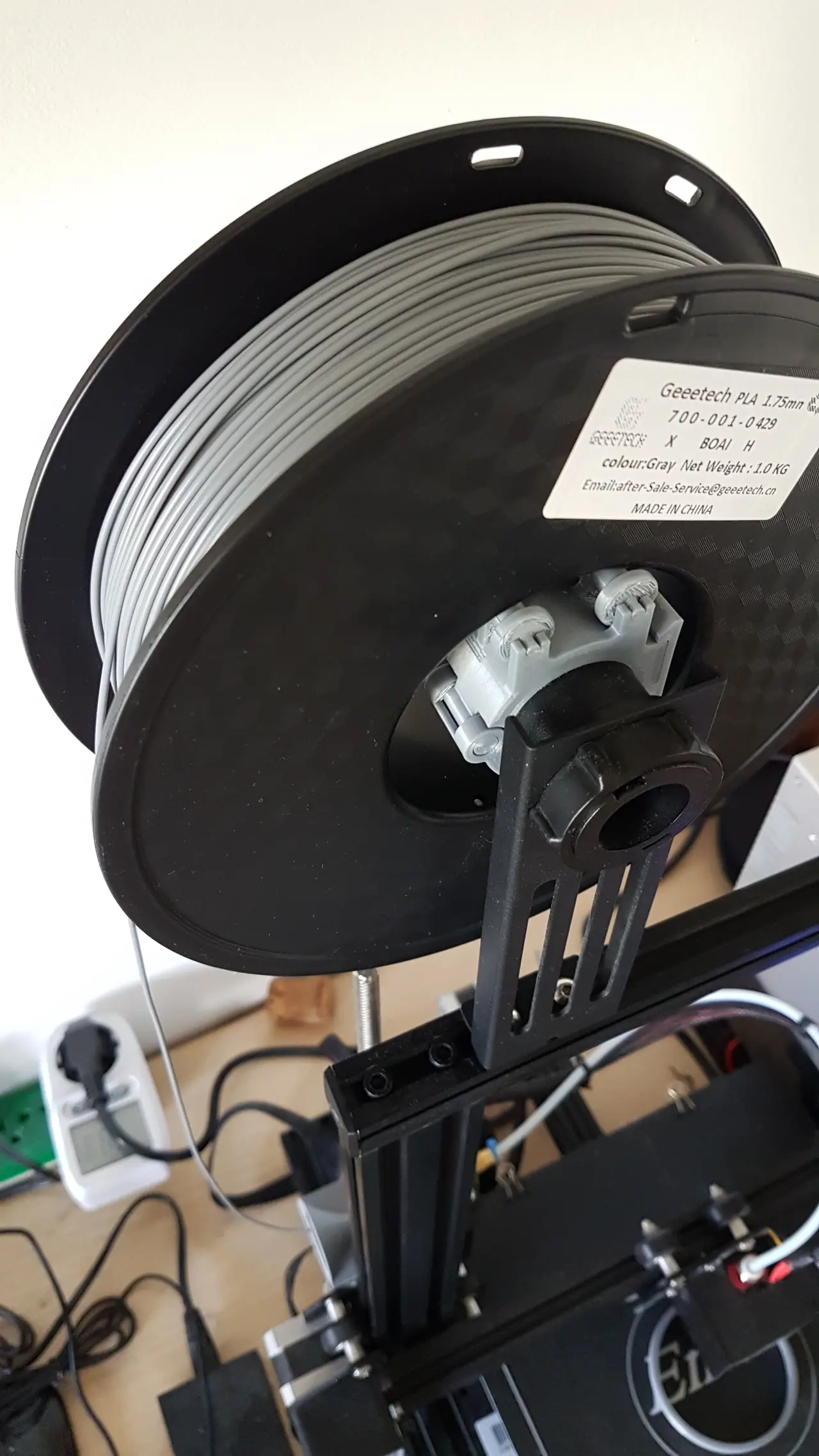

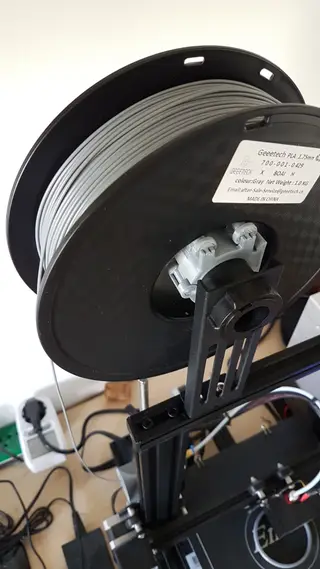

The original spool holder of Creality Ender 3 has a diameter (30mm) too small in comparison to the spools i've been using (74mm) so I did this support.

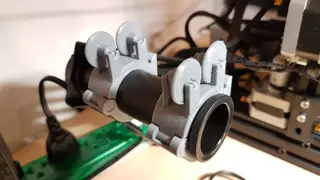

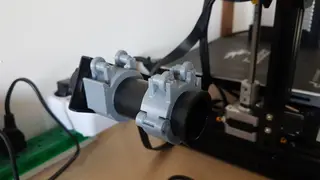

There are 2 supports that are clamped to the original spool holder, and each one has 2 rolls on the top that make contact with the spool. No need to use bearings, bolts nor any extra part, just print it!
I used 0.2mm of layer height, 0.20 infill and tree supports
You need to print:

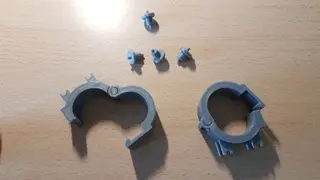

- 2x Roll support for spools - Ender 3 - CLAMP
- 4x Roll support for spools - Ender 3 - ROLL
https://www.youtube.com/watch?v=WHJQXTCmQHY
Descripción original del autor, publicada en MyMiniFactory.
