roLED Addressable RGB Wristband #hallowearable #hallowearables

The roLED - an Addressable LED wristband powered by the microcontroller or single board computer of your choice, featuring 4 capacitive touch pads to select between multiple modes.

Descargar en Thangs

Thangs entrega los archivos a usuarios con cuenta gratuita

Licencia

Uso comercial permitido

Licencia BSD

Puedes usarlo, modificarlo y venderlo manteniendo el aviso de copyright del autor.

Al descargar aceptas respetar la licencia y dar crédito a Earthworm_Jon.

Archivos (10)

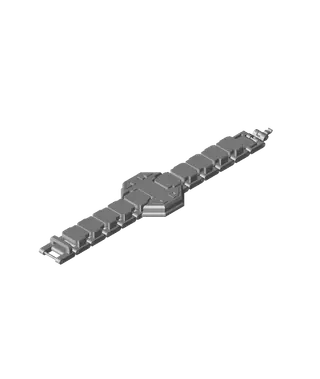

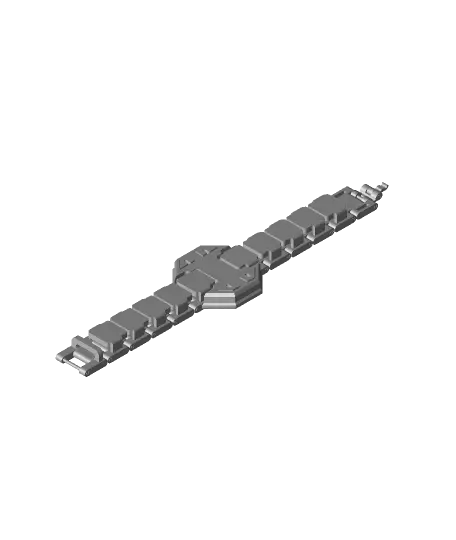

assembledwristband_DONOTPRINT.stl STL · 3,4 MB
case bezel.stl STL · 60 KB
case.stl STL · 194 KB

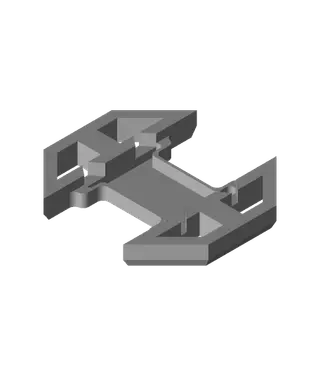

latch inner.stl STL · 116 KB
latch link.stl STL · 179 KB
latch outer.stl STL · 241 KB
link base.stl STL · 162 KB
link face.stl STL · 76 KB
pico case lid.stl STL · 3 KB
pico case lower.stl STL · 6 KB

Categoría: Cosplay y props
Formatos: STL
Descargas: 34
Publicado: 7 de octubre de 2021

Sobre este modelo

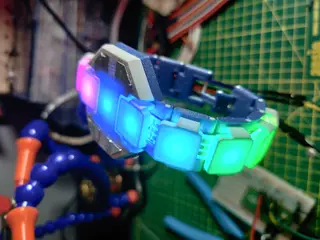

The roLED - an Addressable LED wristband powered by the microcontroller or single board computer of your choice, featuring 4 capacitive touch pads to select between multiple modes.

Please note that the software included is in a very basic state and only seeks to demonstrate the hardware features of the device at this time. Community contribution on both the software and hardware side of the project is very much welcomed and appreciated

Features:

Supports as many neopixels / ws2812b LEDs as you can reasonably power

4x capacitive touch pads for input

Compatible with most microcontrollers and single board computers

Bracelet style wristband that can be easily adjusted to fit your wrist

All parts printed in PLA

Estimated print time: 4.5 to 6 hours

Estimated assembly time: 1 hour

Optional case for the Raspberry Pi Pico

For full documentation, build instructions and demo code please go to https://github.com/EarthwormJon/roLED-addressable-wristband

#HalloWearables / #HalloWearable
