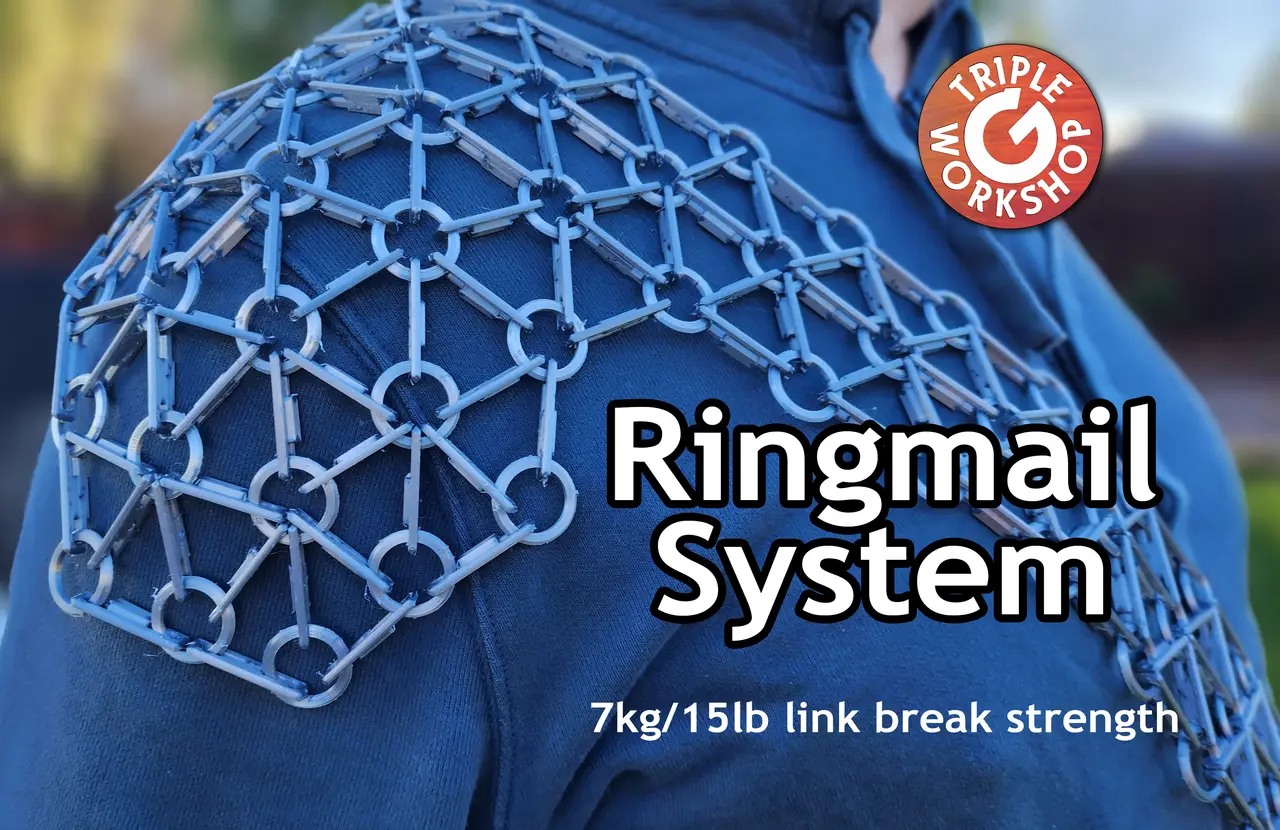

Ringmail System ⚯ Linkmail Armor/Cloth
por Triple G Workshop en Printables

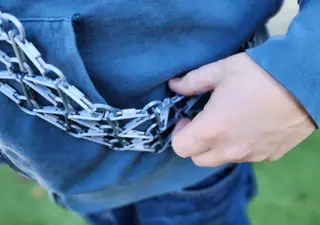

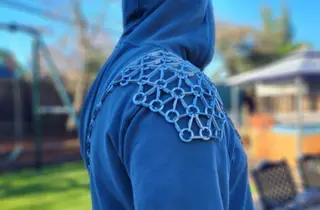

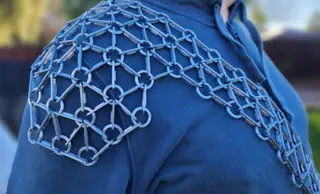

Specialized ring/linkmail armor pieces. Solid rings linked by long links with snap-on locks. Super strong & flexible.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Triple G Workshop.
Archivos (12)
- ringmail system starter set.stl STL · 27,6 MB
- ringmail system.3mf 3MF · 9,5 MB
- ringmail raw ring.stl STL · 1,3 MB
- ringmail raw link.stl STL · 31 KB
- ringmail raw lock.stl STL · 3 KB
- ringmail_starter set_0.1mm_PLA_MK3S_11h10m.gcode GCODE · 25,9 MB
- ringmail rings x10_0.1mm_PLA_MK3S_48m.gcode GCODE · 3,5 MB
- ringmail rings x30_0.1mm_PLA_MK3S_2h23m.gcode GCODE · 10,5 MB
- ringmail links x30_0.1mm_PLA_MK3S_3h33m.gcode GCODE · 8,3 MB
- ringmail links x90_0.1mm_PLA_MK3S_10h37m.gcode GCODE · 25,4 MB
- ringmail locks x17_0.1mm_PLA_MK3S_52m.gcode GCODE · 663 KB
- ringmail locks x68_0.1mm_PLA_MK3S_3h27m.gcode GCODE · 2,5 MB
- Categoría
- Cosplay y props
- Formatos
- STL, 3MF, GCODE
- Descargas
- 2,285
- Publicado
Sobre este modelo
Think I'm Awesome? ~ https://buymeacoffee.com/triplegworkshop

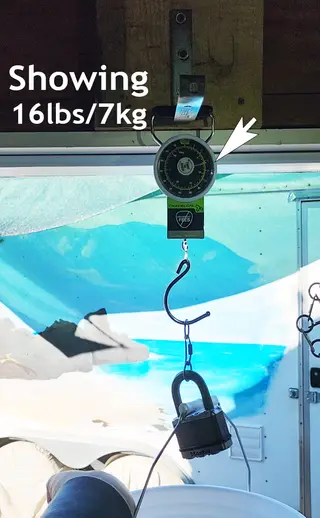

This system uses 3 pieces: Rings - Solid rings, especially .10mm layers are almost unbreakable. Links - Oblong links that connect the rings in whatever pattern you want. Locks - Clips that hold the links closed tight and multiplies strength 5X. The links have an overlapping Z that when locked with a clip allowed a link to hold over 15lbs (video below) This is the key to super stength. In the image and video you can see the link wildly distorted before the link opens. (2.2mm thick, .10mm layers, Prusament PLA My Silverness.
Why .10 layers?? .10mm layers have been proven to be the strongest, so that is my default. Feel free to make your own .15 or .20 gcode, but know strength will be reduced. For infill I just run max perimeters so it's solid and strong as possible.
BUILT for MK3S so you may have to scale down slightly for your printer. I created the models as strings to help keep them on the build plate and if one comes loose it doesn't ruin the whole batch. This is to help with overall success and you can go without if you like, raw models added at the bottom of the files tab. YouTube Link Destruction Test Video: – These rings and link are 2.2mm thick PLA! – Not bad! Need it more flexible? Just scale up the link & lock to give it more room!
Descripción original del autor, publicada en Printables.
